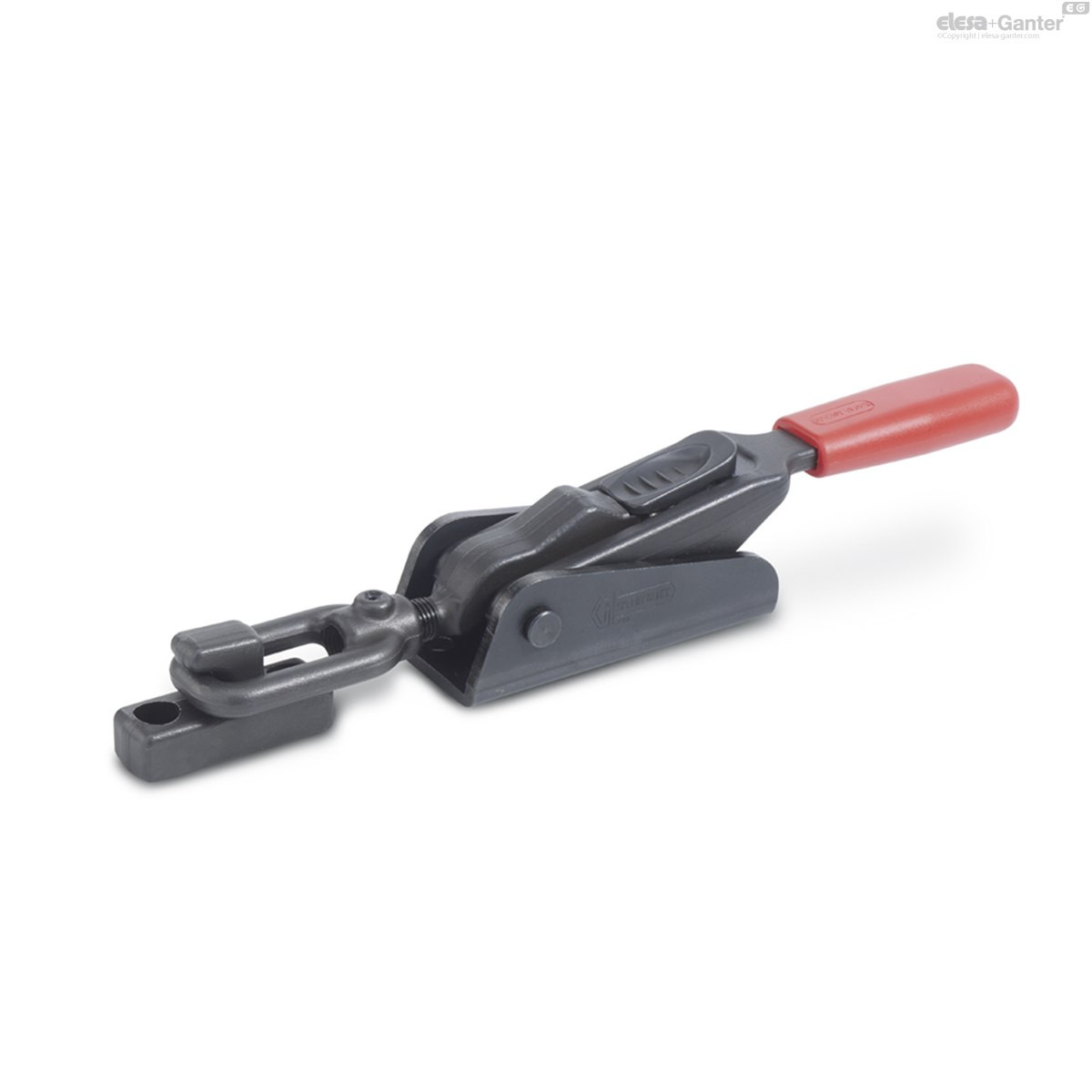

GN 852.3Snelspanklemmen

Staal

Staal/roestvrij staal, met veiligheidshaak, voor zware toepassingen

Technical datasheet

GN 852.3

Reset

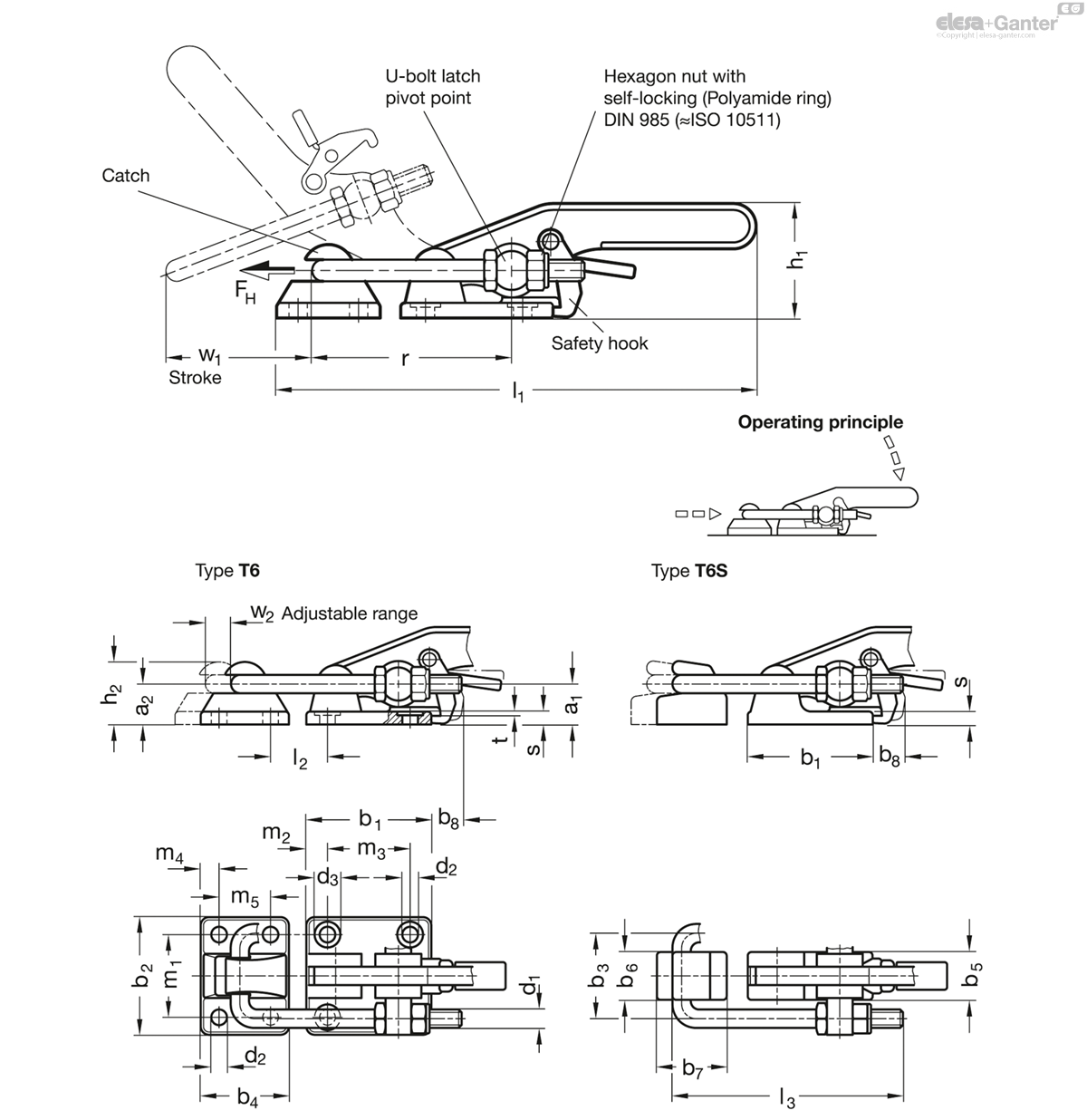

Code	Size	F_H in N	a₁	a₂	b₁	b₂	b₃	b₄	b₅	b₆	b₇	b₈

GN 852.3-1700-T6	1700	17000	22	21	68	64	-	48	-	-	-	17
GN 852.3-4000-T6	4000	40000	28	27	85	80	-	60	-	-	-	20
GN 852.3-1700-T	1700	17000	22	21	68	64	-	48	-	-	-	17
GN 852.3-4000-T	4000	40000	28	27	85	80	-	60	-	-	-	20
GN 852.3-1700-T6S	1700	17000	22	21	68	-	46	-	28	26.5	38	17
GN 852.3-4000-T6S	4000	40000	28	27	85	-	55	-	34	32	50	20
GN 852.3-1700-TS	1700	17000	22	21	68	-	46	-	28	26.5	38	17
GN 852.3-4000-TS	4000	40000	28	27	85	-	55	-	34	32	50	20

Types

Type T6: with mounting holes, with U-bolt latch, with catch

Type T: with mounting holes, without U-bolt latch, with catch

Type T6S: for welding, with U-bolt latch, with catch

Type TS: for welding, without U-bolt latch, with catch

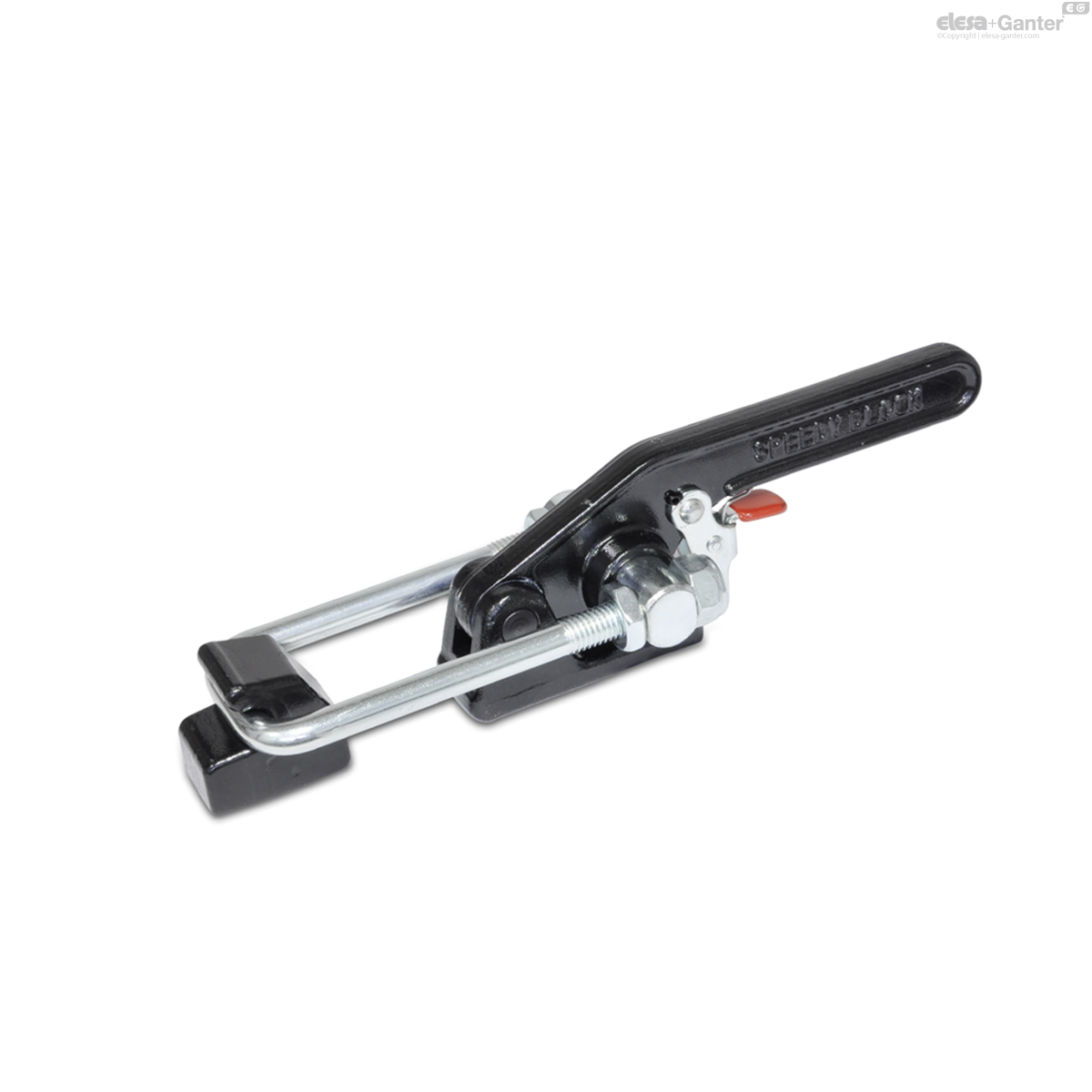

Version in Steel

Body / catch / clamping lever

Steel C22

forged

black lacquered (Type T6 / T)

blackened (Type T6S / TS)

U-bolt latch / bearing pin

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

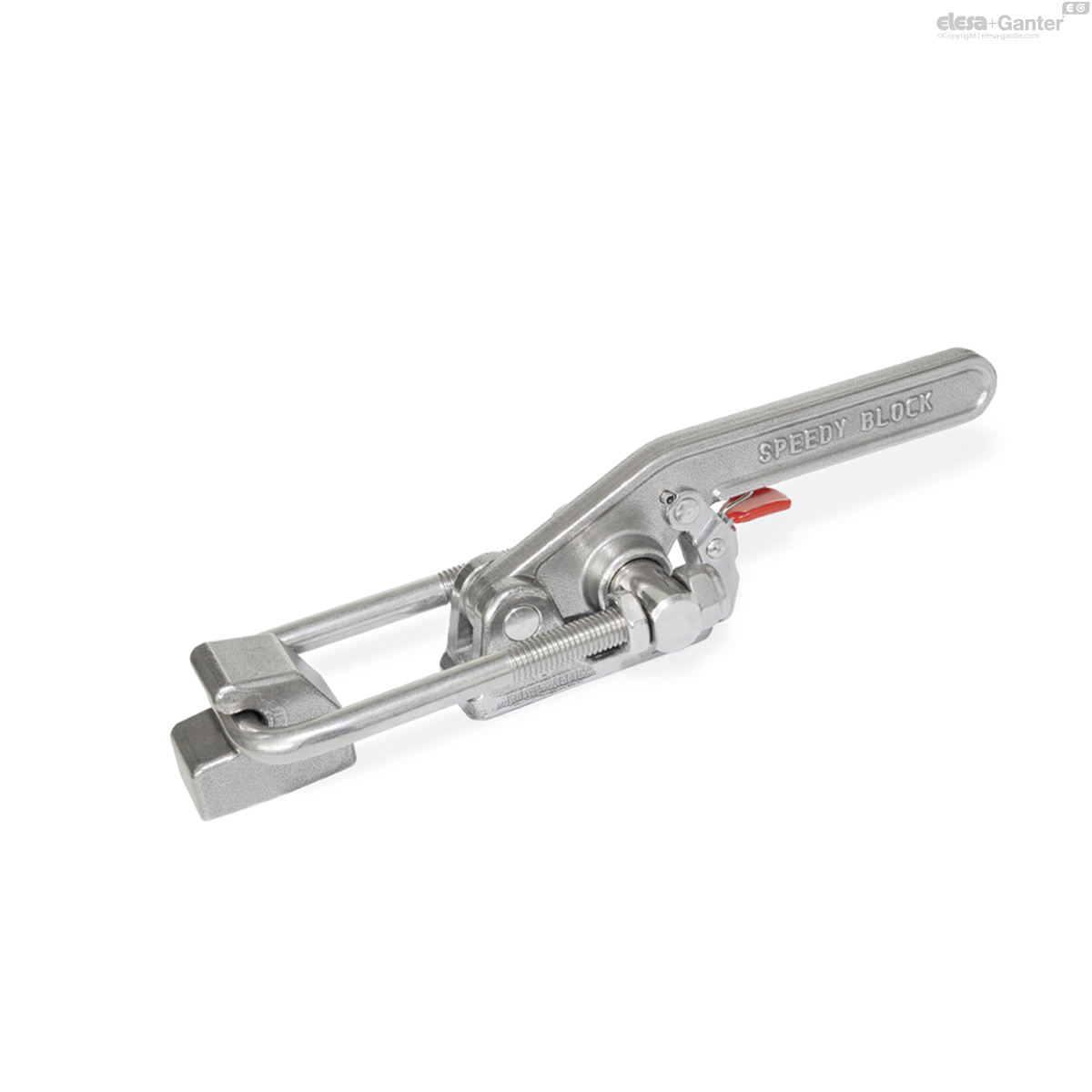

Version in Stainless Steel NI

Body / catch / clamping lever / U-bolt latch

Stainless Steel AISI 304

forged

Other parts

Stainless Steel AISI 303

All moving parts

lubricated with special grease

GN 852.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities.

When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.

The stroke of the U-bolt latch can be adjusted within its range.

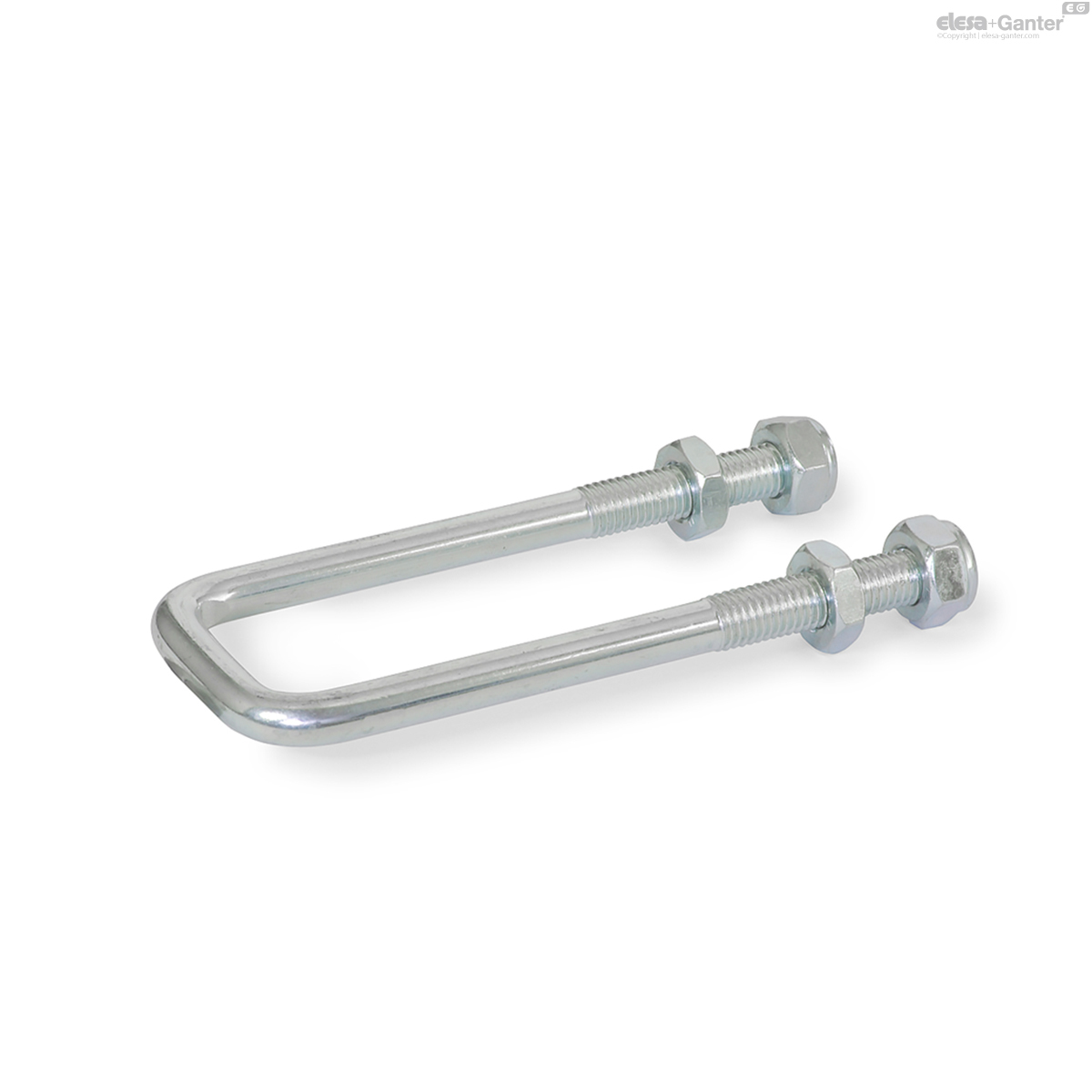

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.
