852.3-1700-T GN 852.3 Staal
Verwachte levertermijn 5-7 werkdagen
Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

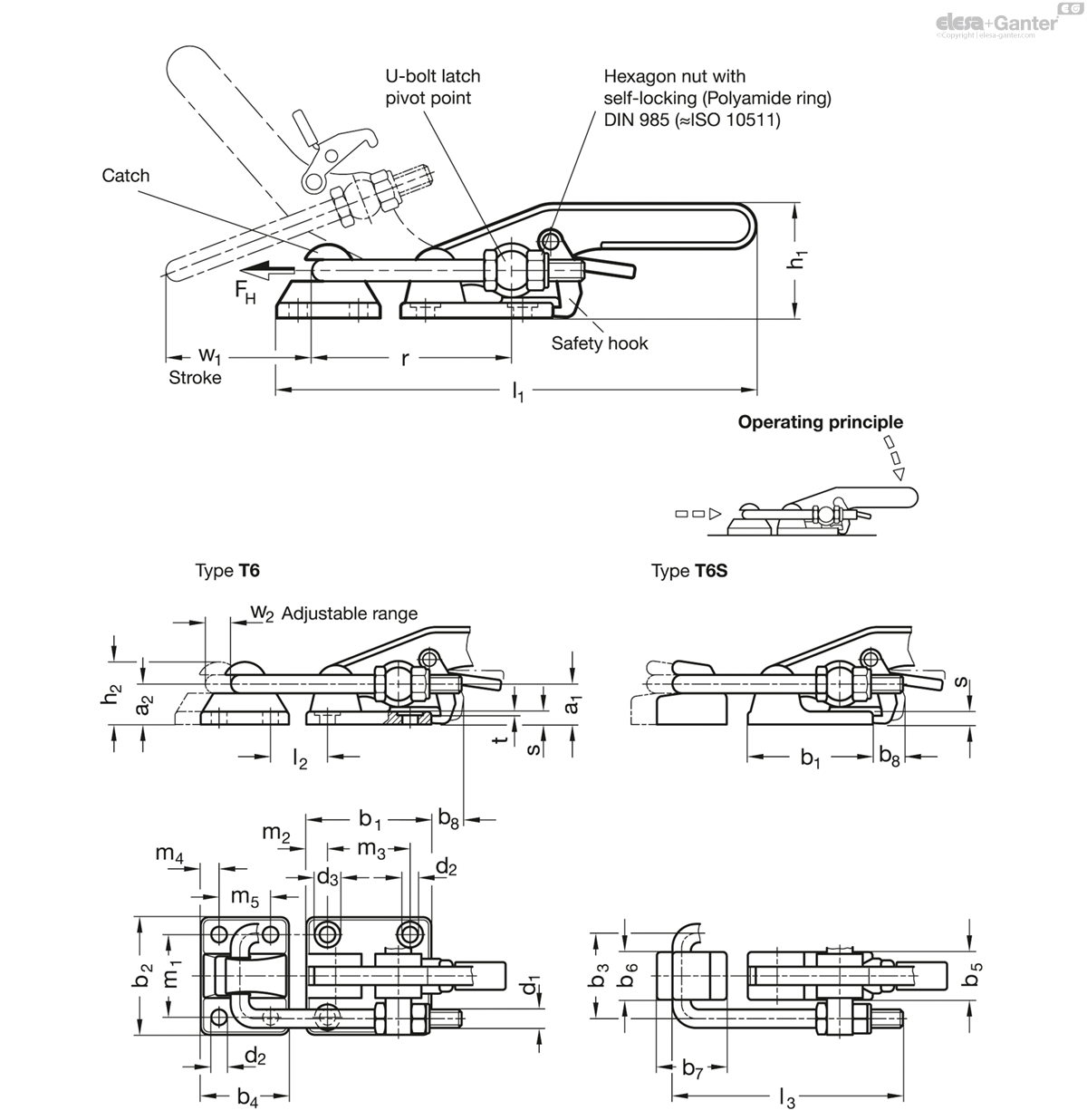

Technische gegevens
- Code
- GN 852.3-1700-T
- Size
- 1700
- FH in N
- 17000
- a1
- 22
- a2
- 21
- b1
- 68
- b2
- 64
- b4
- 48
- b8
- 17
- d2
- 8.5
- d3
- 14
- h1 ≈
- 55
- h2
- 34.5
- l1 ≈
- 223
- l2 min.
- 33
- m1
- 45
- m2
- 11.5
- m3
- 45
- m4
- 10
- m5
- 28
- s
- 7
- t
- 2
- 961
Types
- Type T6: with mounting holes, with U-bolt latch, with catch
- Type T: with mounting holes, without U-bolt latch, with catch
- Type T6S: for welding, with U-bolt latch, with catch
- Type TS: for welding, without U-bolt latch, with catch
Version in Steel
Body / catch / clamping lever
Steel C22
- forged
- black lacquered (Type T6 / T)
- blackened (Type T6S / TS)
U-bolt latch / bearing pin
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Version in Stainless Steel NI
Body / catch / clamping lever / U-bolt latch
Stainless Steel AISI 304
forged
Other parts
Stainless Steel AISI 303
All moving parts
lubricated with special grease

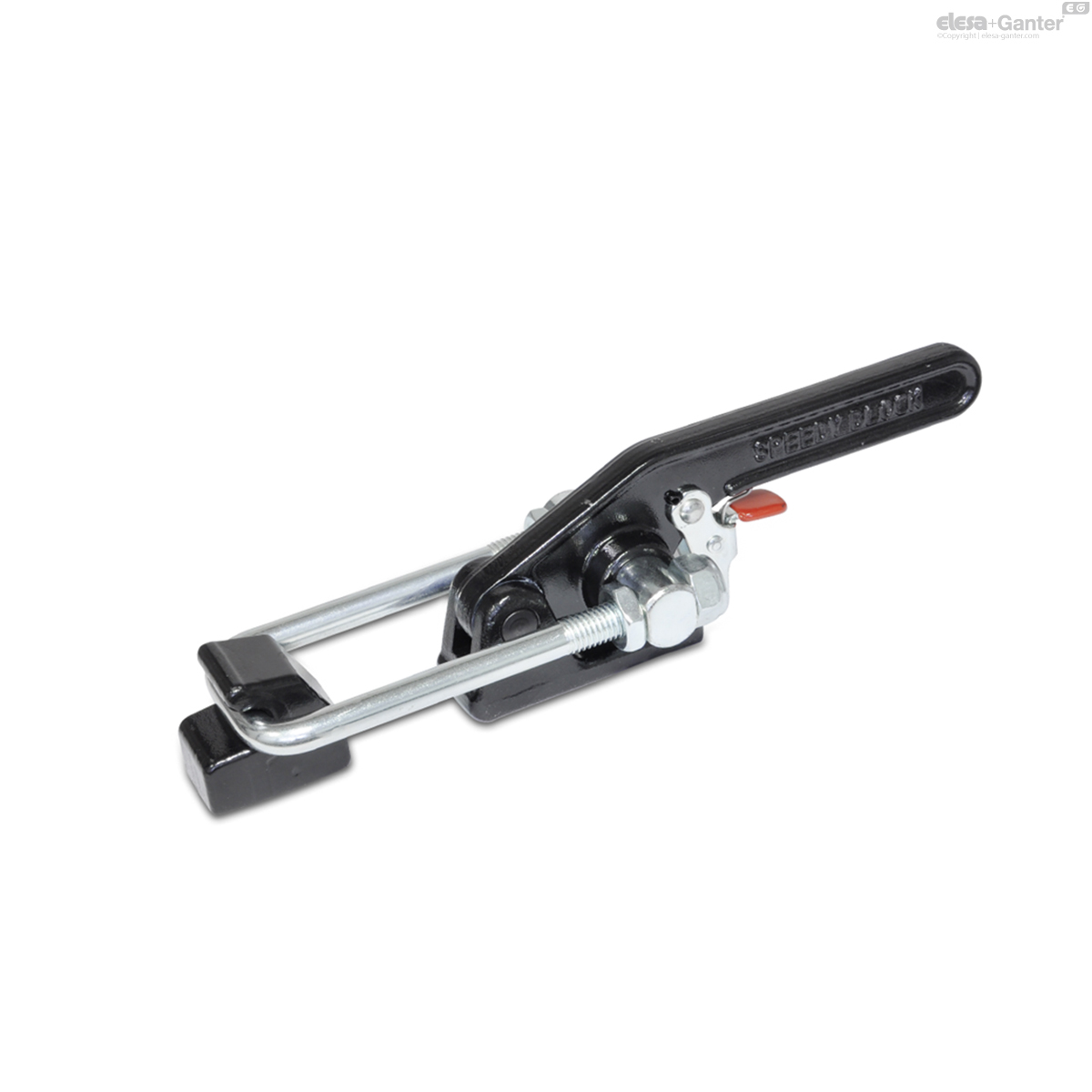

GN 852.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities.
When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.
The stroke of the U-bolt latch can be adjusted within its range.
In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.
