852.3-4000-T GN 852.3 Staal

852.3-4000-T GN 852.3 Staal

Staal/roestvrij staal, met veiligheidshaak, voor zware toepassingen
Alle maten en varianten
  • INOX
  • RoHS
  • SPEEDYBLOCK

Verwachte levertermijn 5-7 werkdagen

Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 852.3-4000-T
Size
4000
FH in N
40000
a1
28
a2
27
b1
85
b2
80
b4
60
b8
20
d2
10.5
d3
16
h1 ≈
68
h2
42.5
l1 ≈
271
l2 min.
30
m1
57
m2
14
m3
57
m4
12.5
m5
35
s
9
t
2
weight
1780

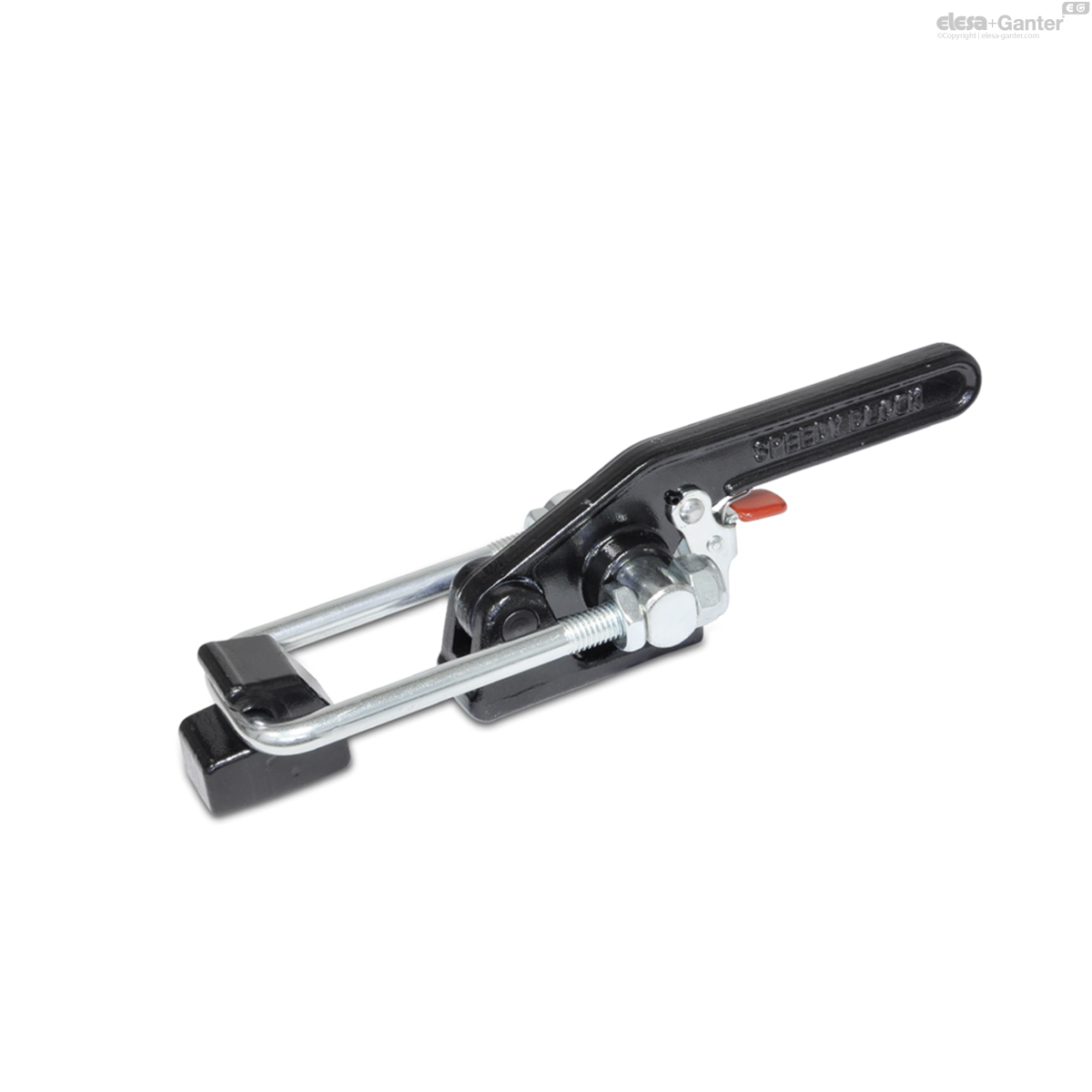

852.3-4000-T drawing
Types
  • Type T6: with mounting holes, with U-bolt latch, with catch
  • Type T: with mounting holes, without U-bolt latch, with catch
  • Type T6S: for welding, with U-bolt latch, with catch
  • Type TS: for welding, without U-bolt latch, with catch
Version in Steel

Body / catch / clamping lever

Steel C22

  • forged
  • black lacquered (Type T6 / T)
  • blackened (Type T6S / TS)

U-bolt latch / bearing pin

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Version in Stainless Steel NI

Body / catch / clamping lever / U-bolt latch

Stainless Steel AISI 304

forged

Other parts

Stainless Steel AISI 303

All moving parts

lubricated with special grease

GN 852.3 latch type toggle clamps are compact in design and can be used to ensure high holding capacities.

When closing the spanner, a safety hook positively locks onto the body. This prevents the inadvertent or vibration-induced release from the clamping position. To open the safety hook it is unlocked per one-hand operation.

The stroke of the U-bolt latch can be adjusted within its range.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.2 series.
