GN 6303.1Snelspankartelmoeren

Staal

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Staal
Staal
Roestvrij staal
GN 6303.1-NI
Roestvrij staal
Staal
GN 6303.1
Staal

GN 6303.1

Reset

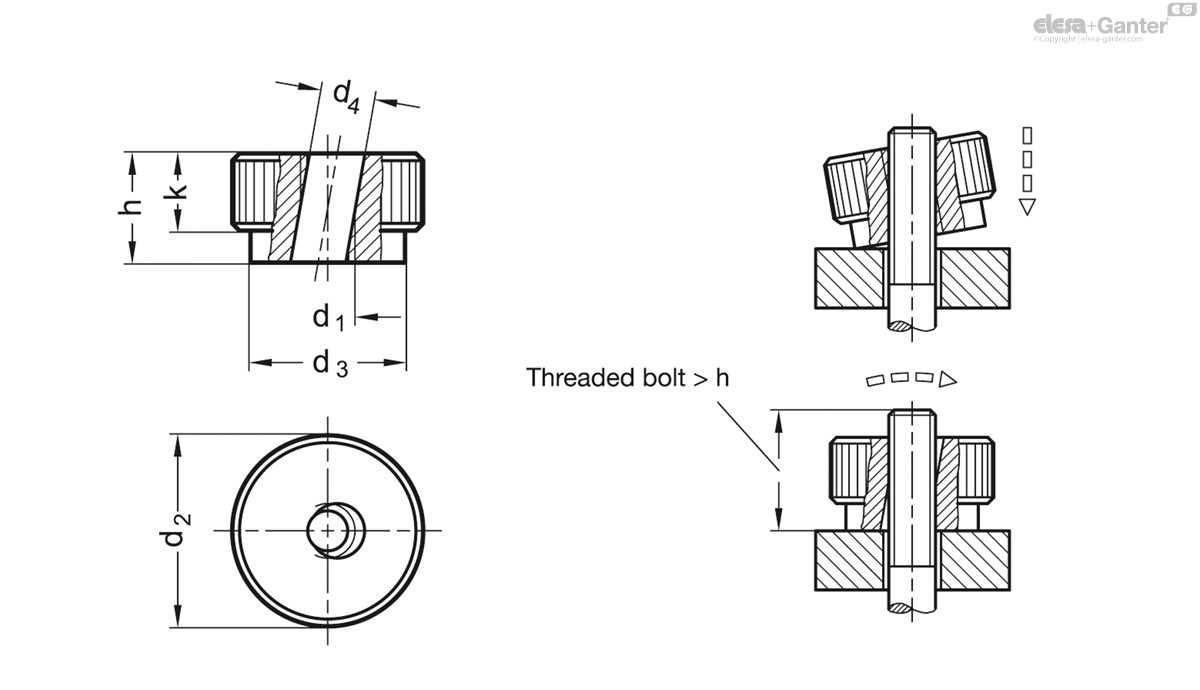

Code
d1
d2
d3
d4
h
k
GN 6303.1-M5
M 5
20
14
5.3
12
8
22
GN 6303.1-M6
M 6
24
16
6.7
14
10
37
GN 6303.1-M8
M 8
30
20
8.7
17
12
69
GN 6303.1-M10
M 10
36
28
11
20
14
120
GN 6303.1-M12
M 12
40
32
13
24
16
179

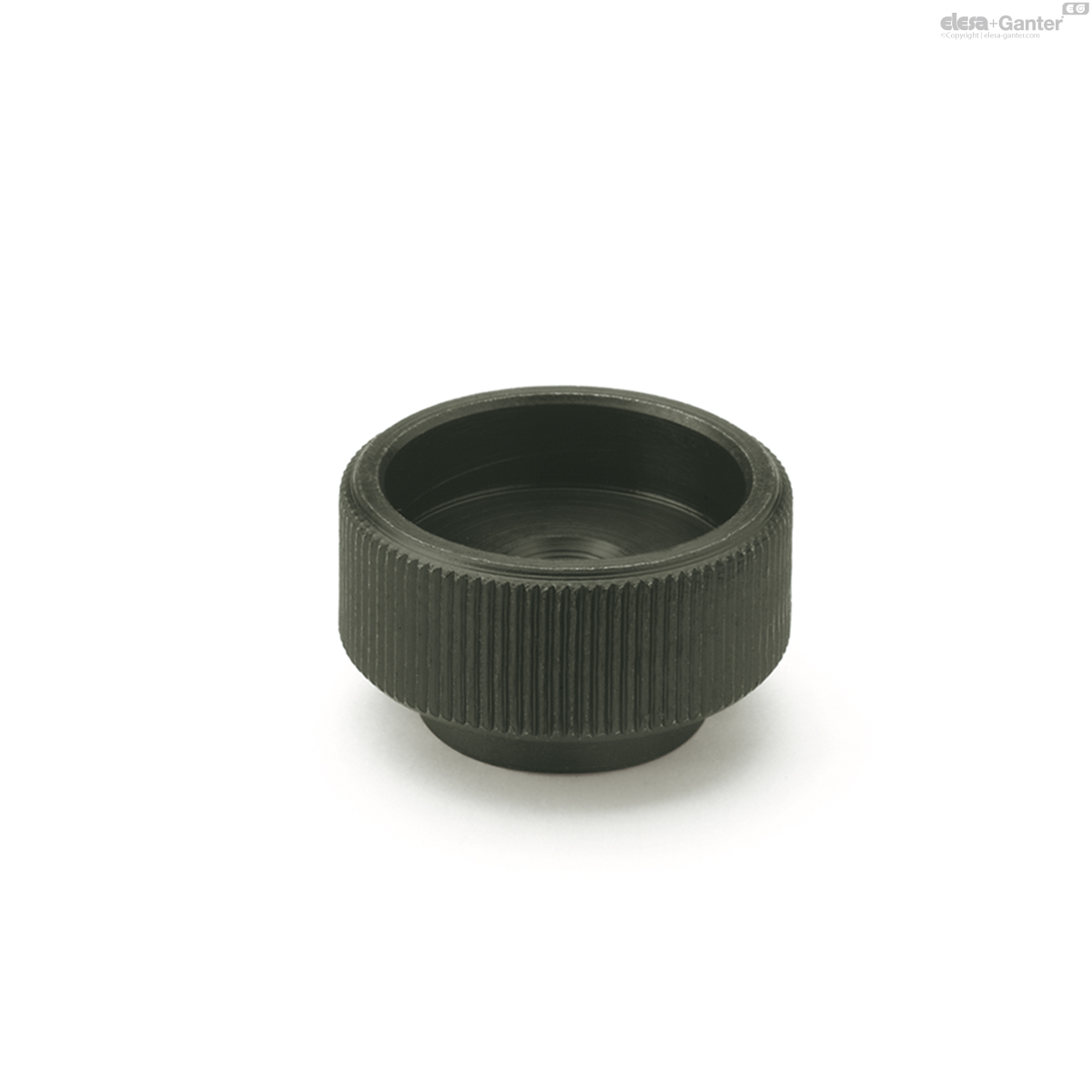

Version in Steel

  • Tensile strength class 5
  • blackened

Version in Stainless Steel AISI 303 NI

  • matte shot-blasted

Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.

The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.

Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
