Technical datasheet
GN 6303.1Écrous moletés à serrage rapide
Acier
|

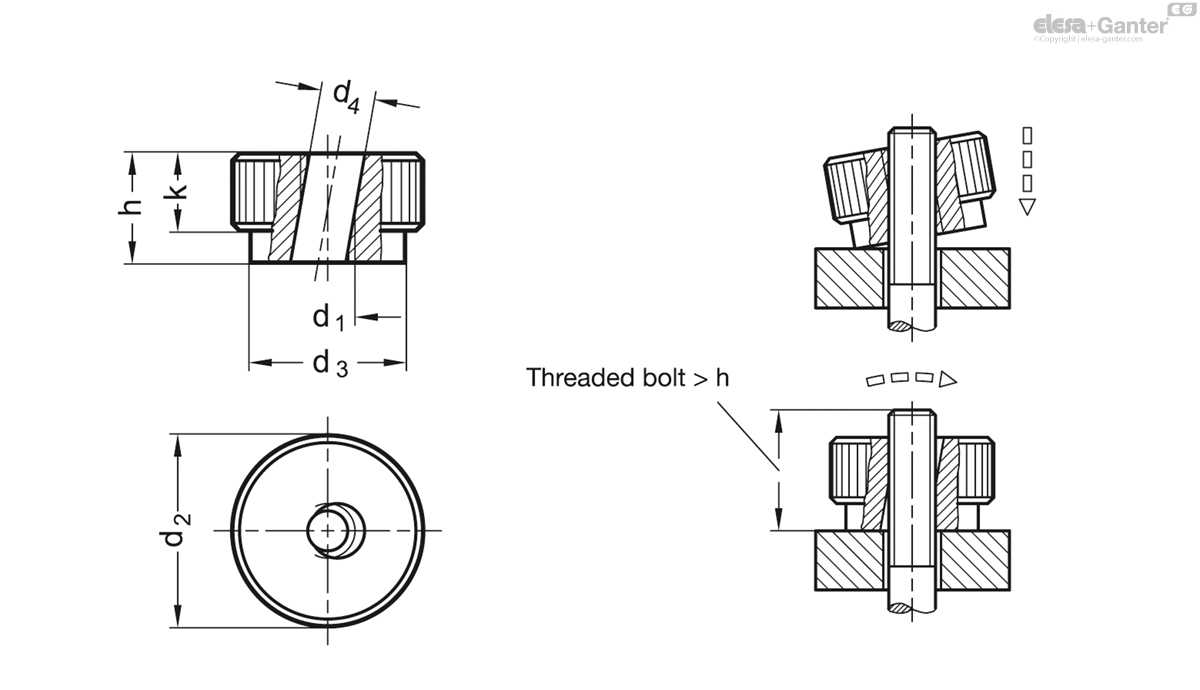

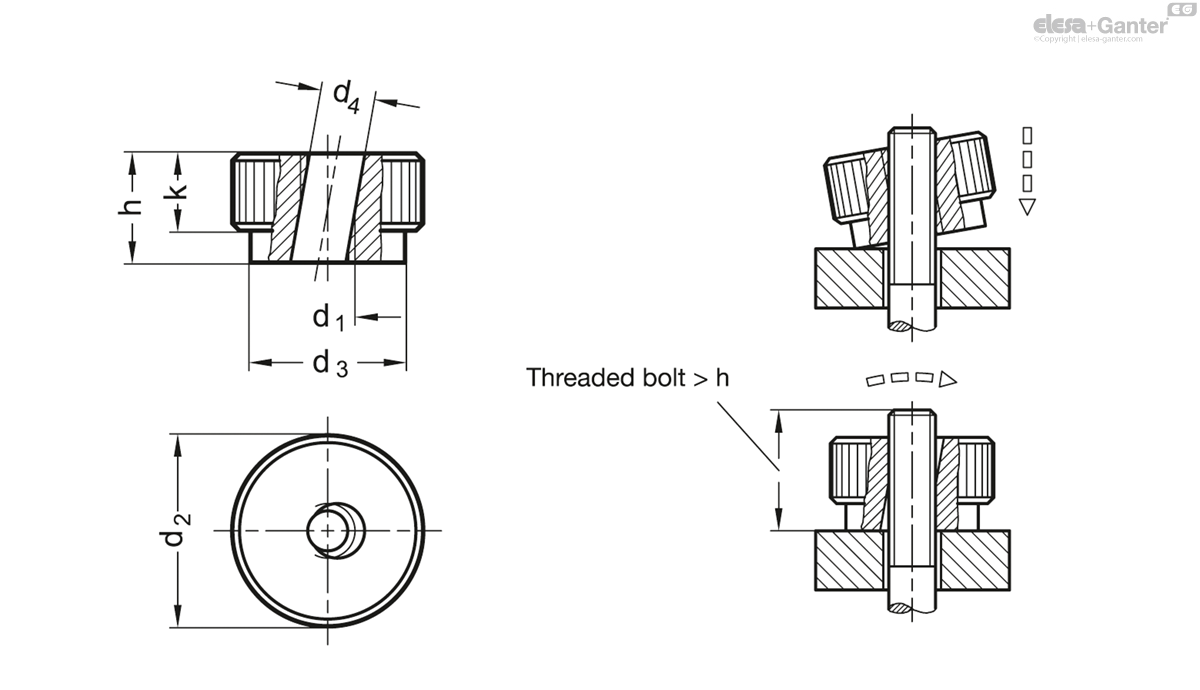

Code
|
d1
|
d2
|
d3
|
d4
|
h
|
k
|
|
|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
GN 6303.1-M5
|
M 5
|
20
|
14
|
5.3
|
12
|
8
|
22
|
|
GN 6303.1-M6
|
M 6
|
24
|
16
|
6.7
|
14
|
10
|
37
|
|
GN 6303.1-M8
|
M 8
|
30
|
20
|
8.7
|
17
|
12
|
69
|
|
GN 6303.1-M10
|
M 10
|
36
|
28
|
11
|
20
|
14
|
120
|
|
GN 6303.1-M12
|
M 12
|
40
|
32
|
13
|
24
|
16
|
179
|
Version in Steel
Version in Steel
- Tensile strength class 5
- blackened
Version in Stainless Steel AISI 303 NI
Version in Stainless Steel AISI 303 NI
- matte shot-blasted
Quick release knurled nuts GN 6303.1 are used in such applications where the nut has to be completely removed after the releasing operation and re-fitted rapidly for re-clamping.
The nut is tilted over the threaded spindle. When in position, the nut is brought into a straight position for meshing of the two threads on nut and spindle. The nut will then have to be turned only by a fraction of a rotation to achieve clamping.
Functional safety exists only if the clamping surface lies at a right angle to the threaded bolt.
Produits associés

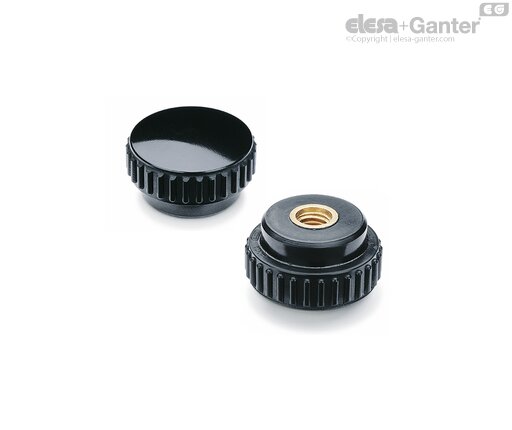

B.193-B
