Technical datasheet
GN 471.3-BZwengels met intrekbare handgreep

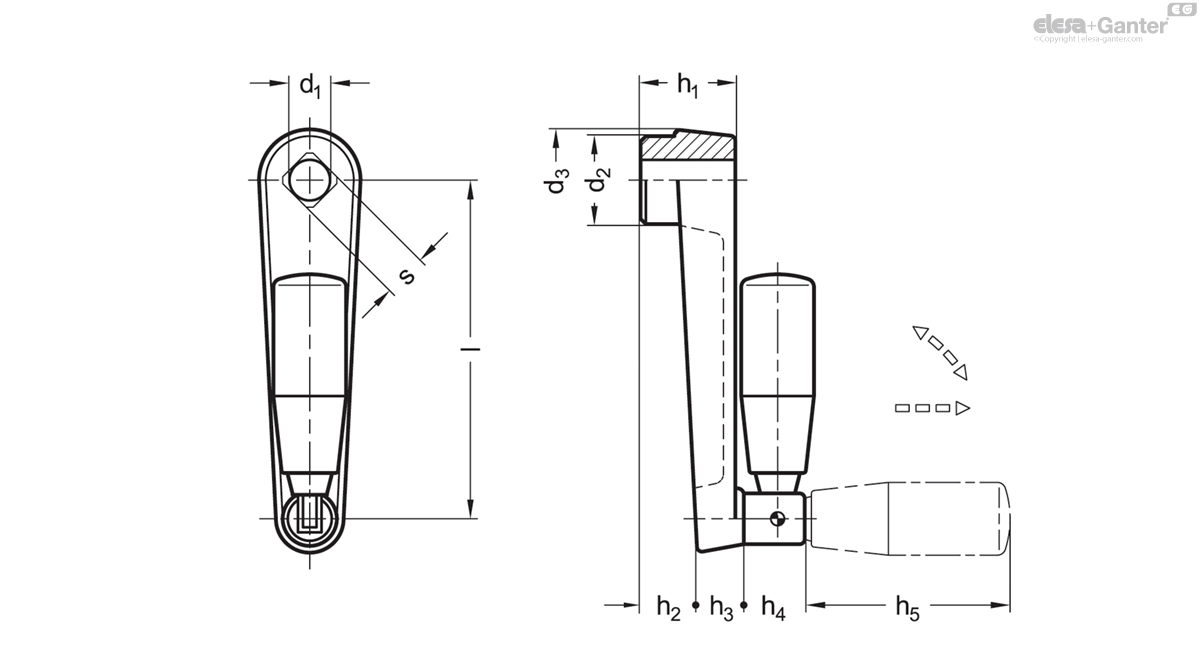

Boring
Aluminium
Body
Body
Aluminum
- Powder coated
- Black, textured finish
- Contact face of hub machined
Retractable Handle GN 598.3
Retractable Handle GN 598.3
Plastic, Polyamide (PA)
- Black, shiny finish
- Retractable Mechanism
- Steel, blackened

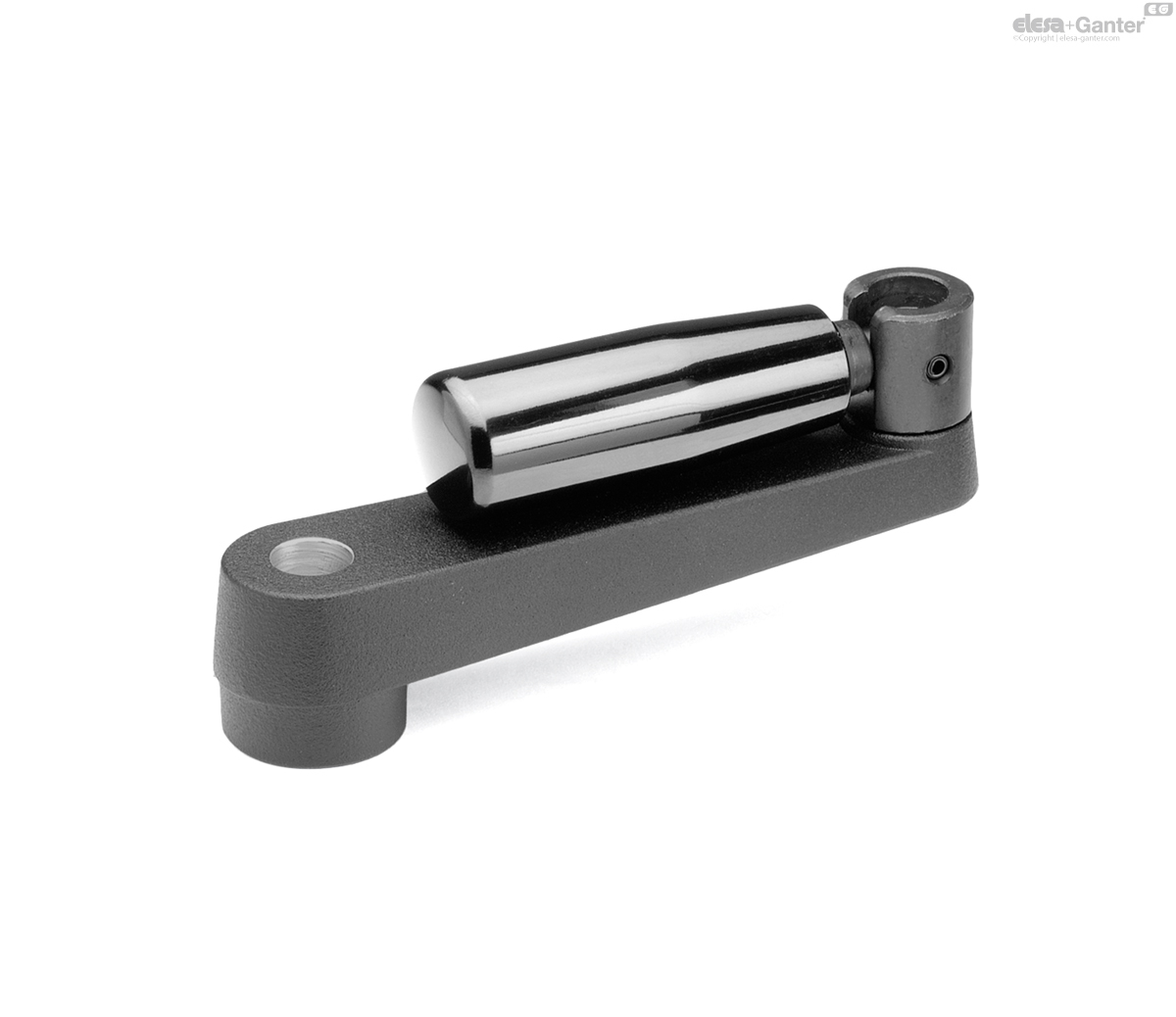

The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.
For tilting, the handle must first be pulled out of the taper in axial direction.
A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.
- with Retractable Handle GN 598.5
- (Retractable Mechanism Stainless Steel)
