Technical datasheet

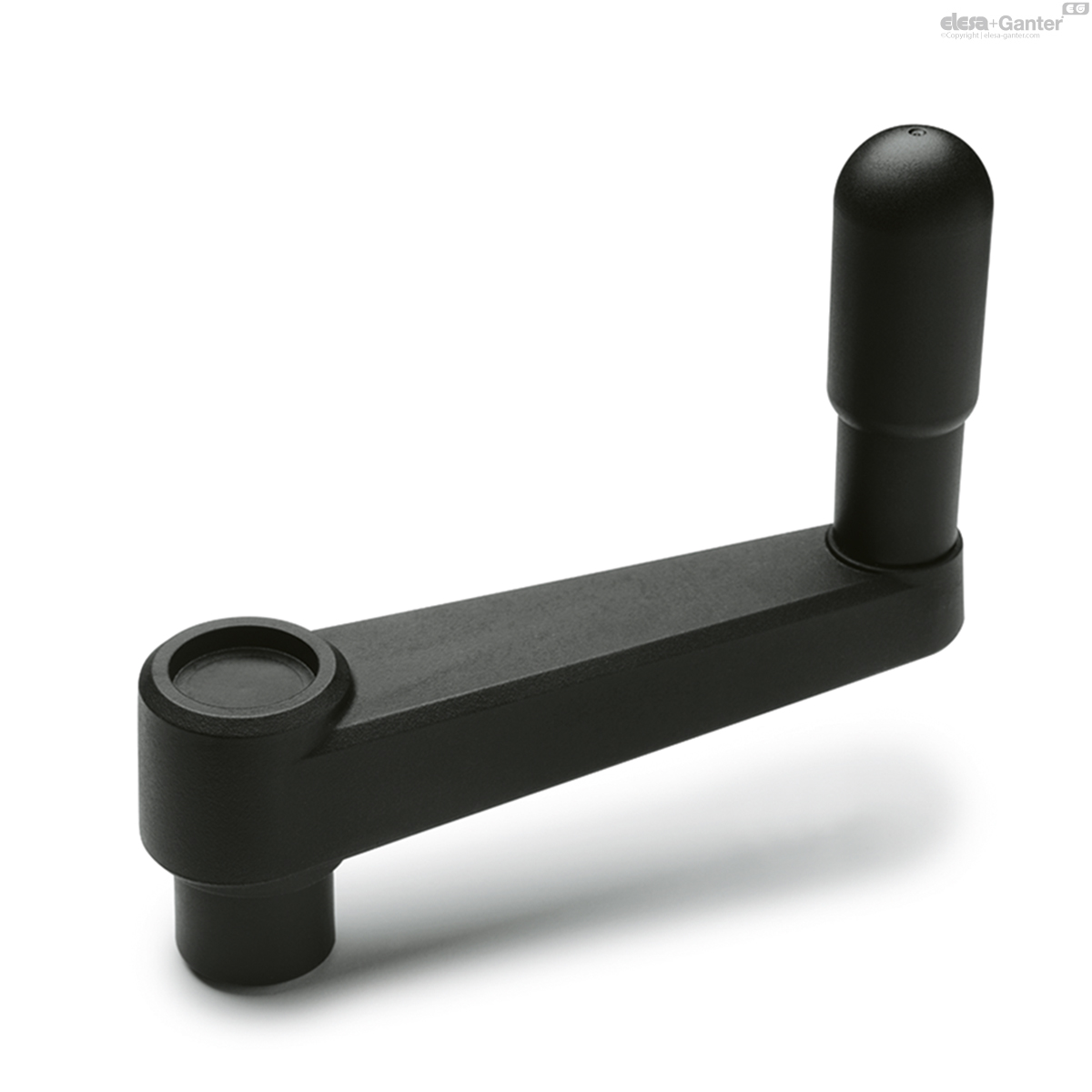

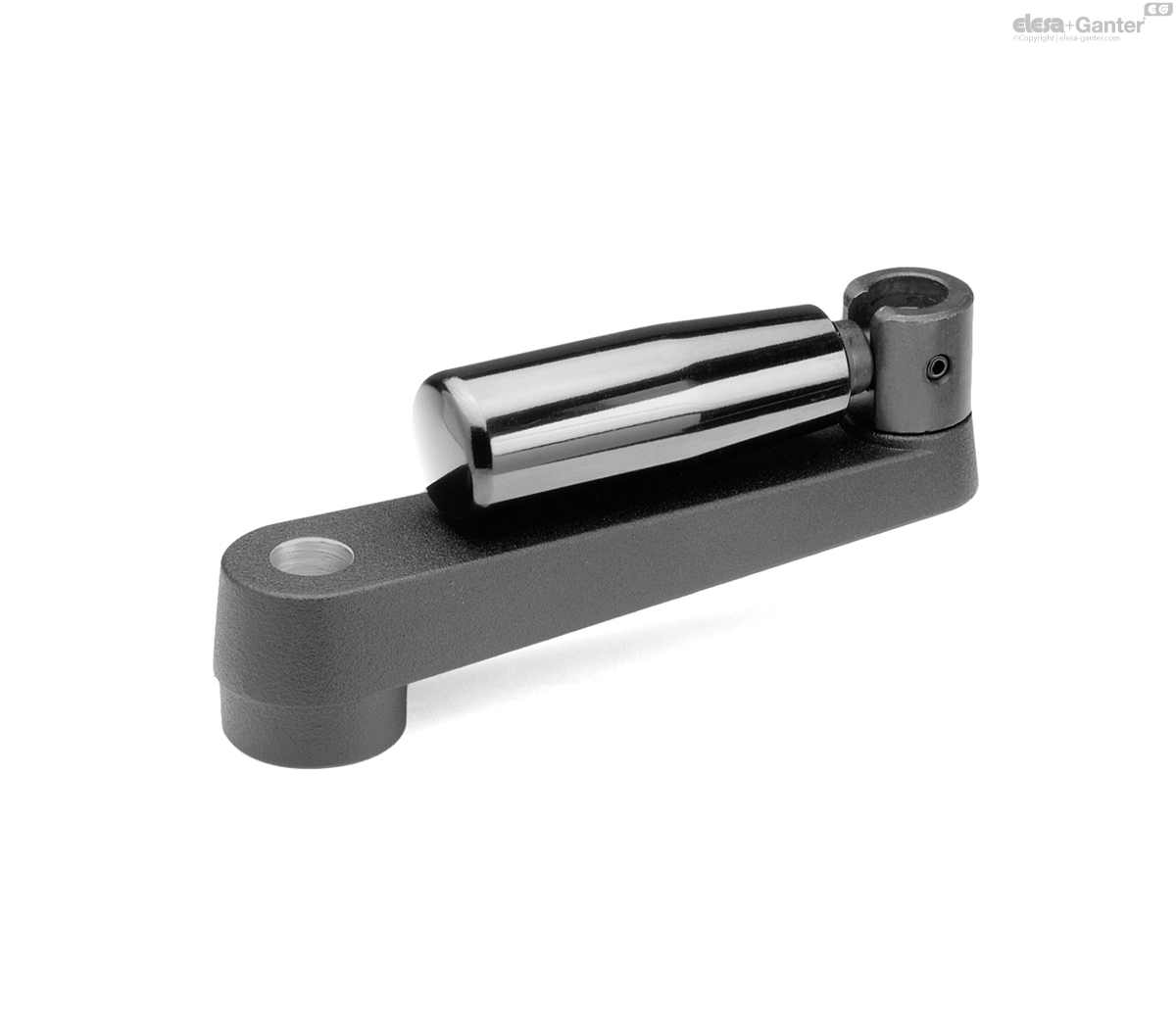

GN 471.3-BManivelles droites à poignée éclipsable
Alésage
Aluminium
|
Code
|
l
|

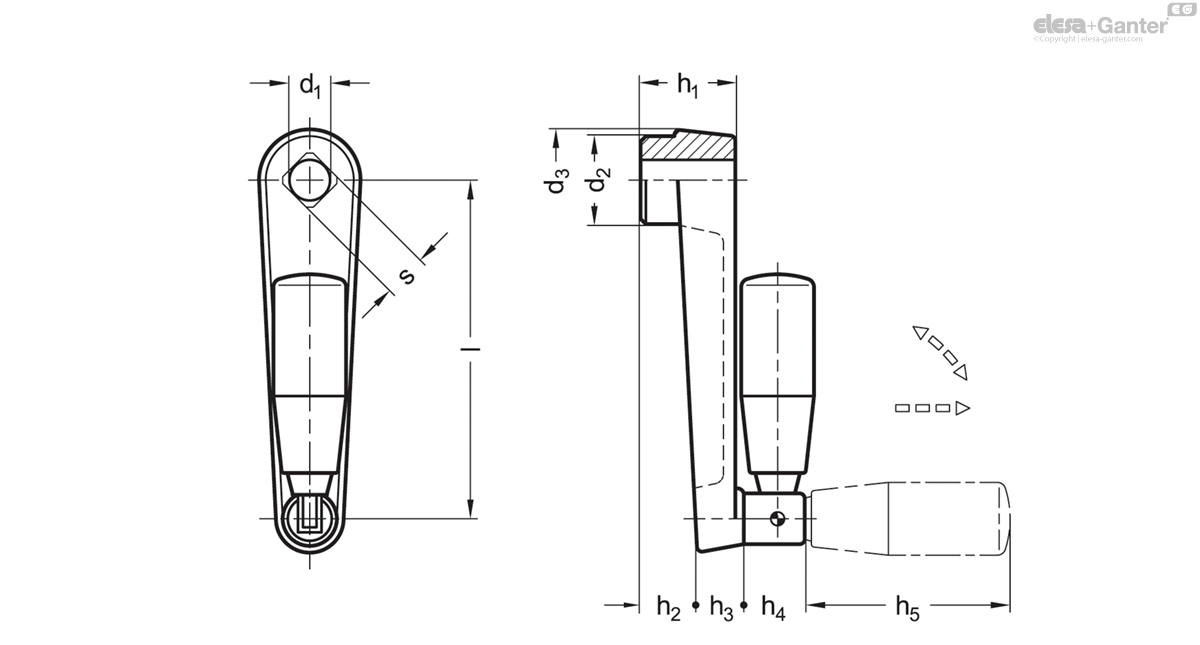

d1 H7
Bore |
d2
|
d3
|
h1
|
h2
|
h3
|
h4
|
h5 ≈
|
Ø Handle
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 471.3-100-B12
|
100
|
B 12
|
27
|
30
|
28
|
17
|
13
|
19.5
|
67.5
|
23
|
160
|
|
GN 471.3-125-B14
|
125
|
B 14
|
32
|
35
|
34
|
22
|
14
|
19.5
|
67.5
|
23
|
220
|
|
GN 471.3-160-B17
|
160
|
B 17
|
35
|
39
|
38
|
26
|
16
|
19.5
|
82.5
|
26
|
346
|
Body
Body
Aluminum
- Powder coated
- Black, textured finish
- Contact face of hub machined
Retractable Handle GN 598.3
Retractable Handle GN 598.3
Plastic, Polyamide (PA)
- Black, shiny finish
- Retractable Mechanism
- Steel, blackened
The handle of the cranked handles with retractable handle GN 471.3 is locked in a tapered bore in the operating position.
For tilting, the handle must first be pulled out of the taper in axial direction.
A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.
- with Retractable Handle GN 598.5
- (Retractable Mechanism Stainless Steel)
