Technical datasheet

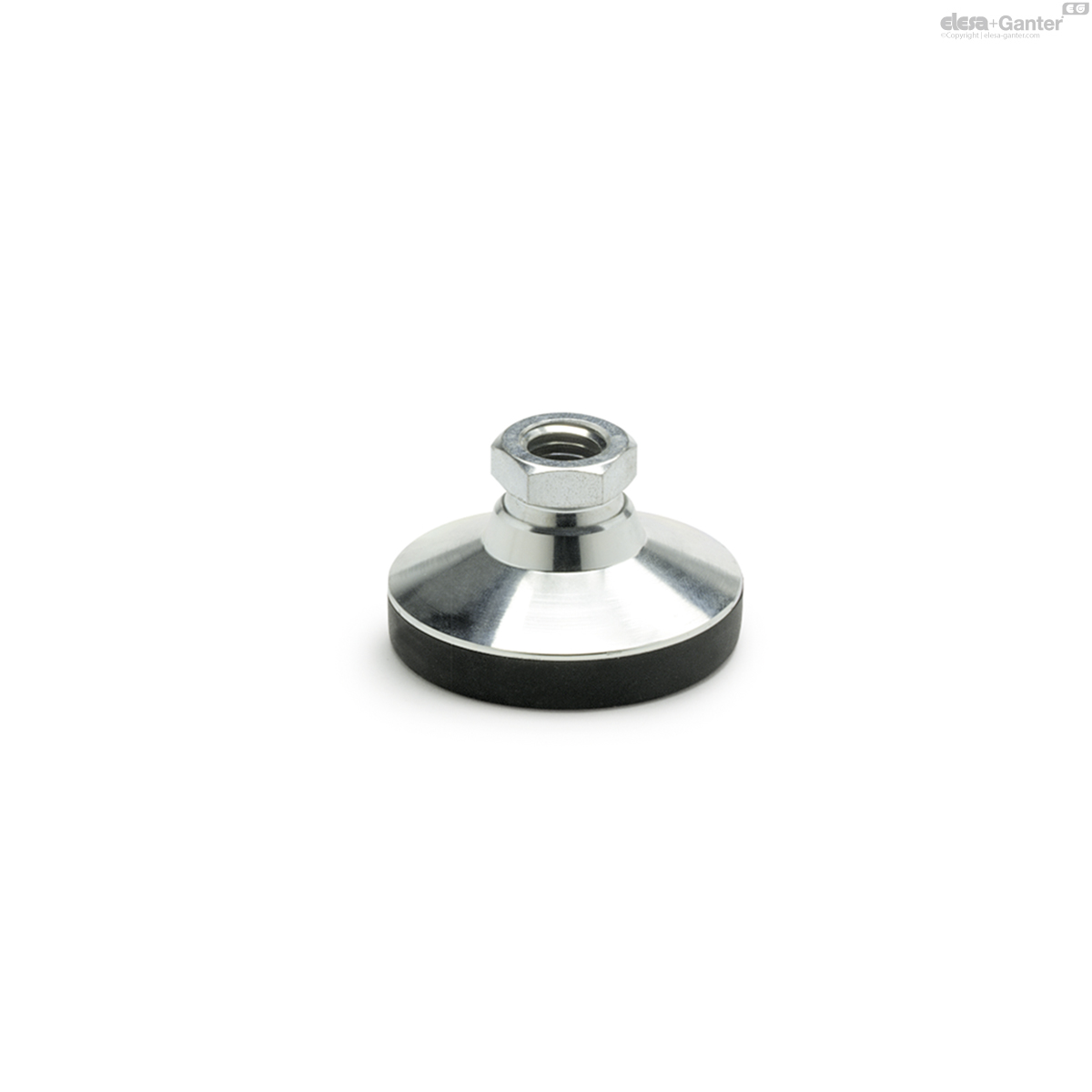

GN 343.1Stelelementen
Stelelementen

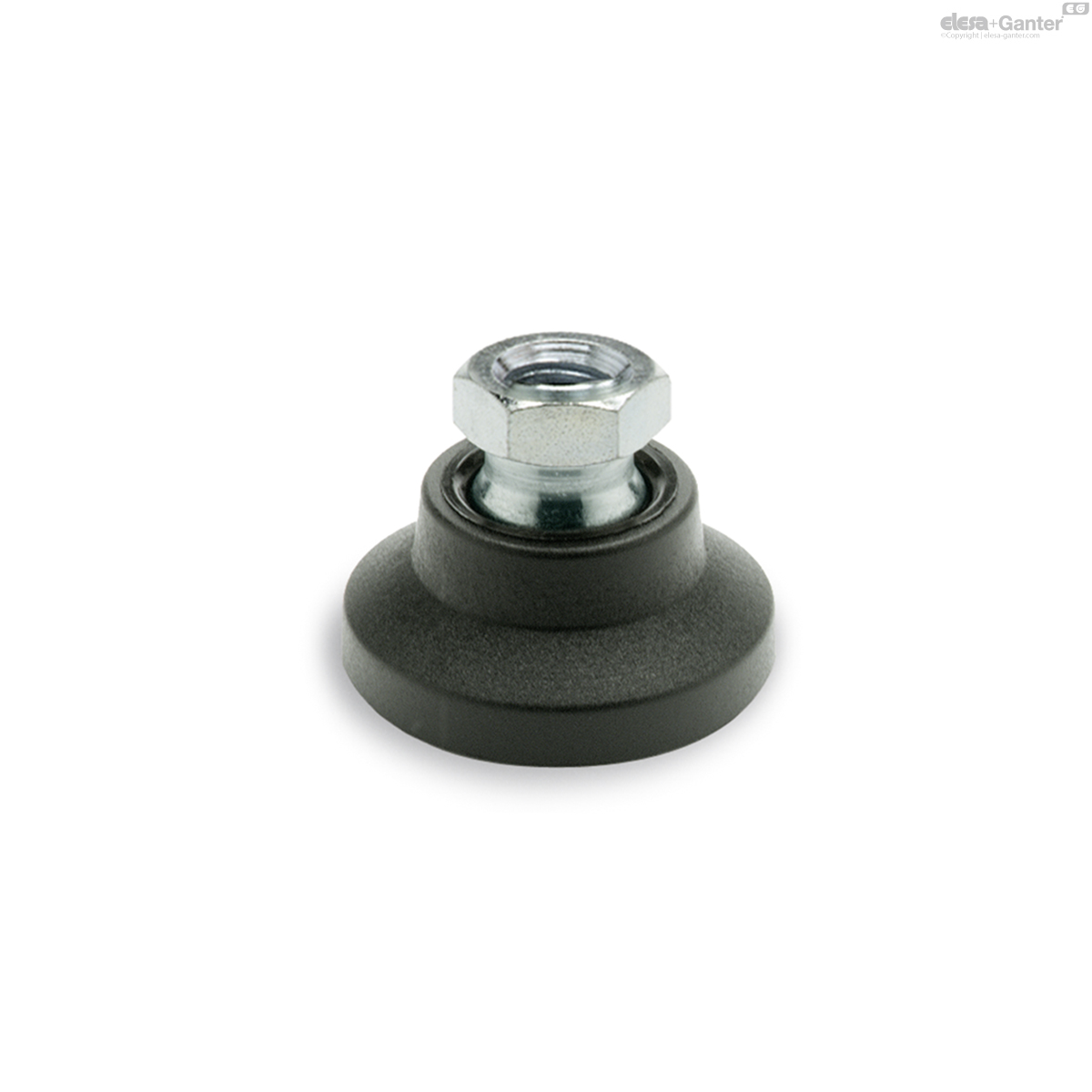

Voet, binnendraad
|

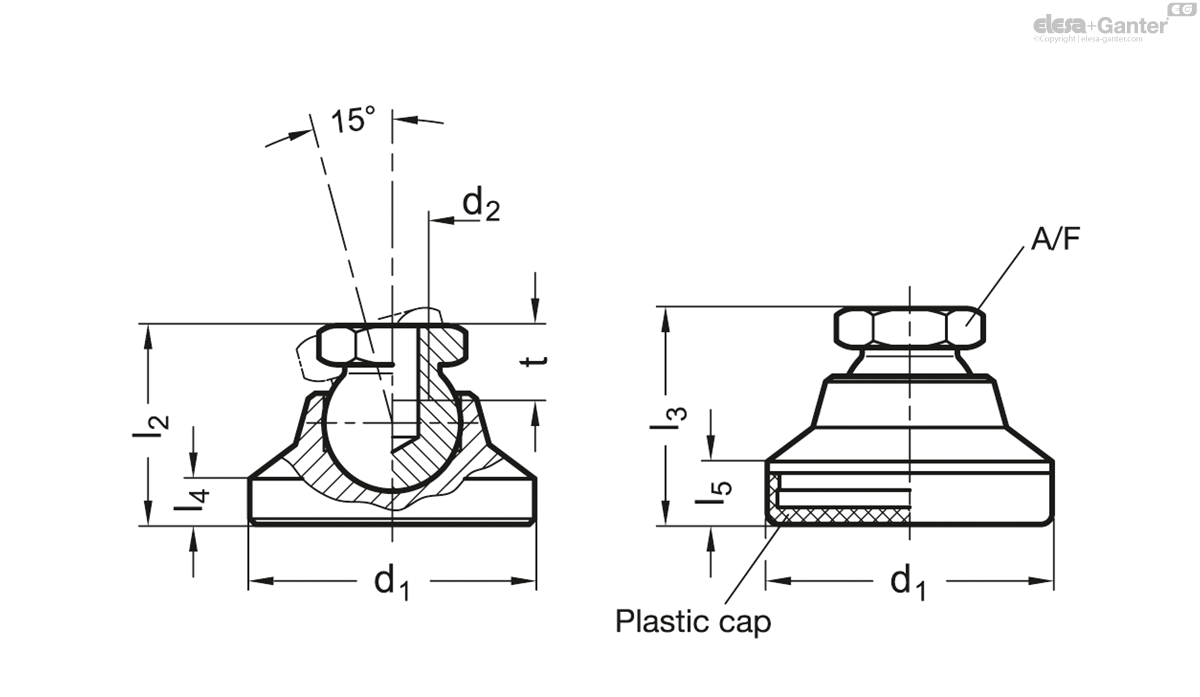

Code
|
d1
|
d2
|
l2
|
l3
|
l4
|
l5
|
A/F
|
t min.
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 343.1-25-M6-KR
|
25
|
M 6
|
-
|
20.5
|
-
|
-
|
12
|
9
|
31
|
|
GN 343.1-25-M8-KR
|
25
|
M 8
|
-
|
20.5
|
-
|
-
|
12
|
9
|
30
|
|
GN 343.1-32-M8-KR
|
32
|
M 8
|
-
|
24.5
|
-
|
-
|
12
|
9
|
57
|
|
GN 343.1-32-M10-KR
|
32
|
M 10
|
-
|
24.5
|
-
|
-
|
15
|
10.5
|
59
|
|
GN 343.1-40-M10-KR
|
40
|
M 10
|
-
|
27.5
|
-
|
-
|
15
|
10.5
|
101
|
|
GN 343.1-40-M12-KR
|
40
|
M 12
|
-
|
27.5
|
-
|
-
|
17
|
11.5
|
97
|
|
GN 343.1-50-M10-KR
|
50
|
M 10
|
-
|
29.5
|
-
|
-
|
15
|
10.5
|
165
|
|
GN 343.1-50-M12-KR
|
50
|
M 12
|
-
|
29.5
|
-
|
-
|
17
|
11.5
|
160
|
|
GN 343.1-60-M12-KR
|
60
|
M 12
|
-
|
37.5
|
-
|
-
|
17
|
11.5
|
313
|
|
GN 343.1-60-M16-KR
|
60
|
M 16
|
-
|
37.5
|
-
|
-
|
24
|
16
|
294
|
|
GN 343.1-25-M6-KRE
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
42
|
|
GN 343.1-25-M8-KRE
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
31
|
|
GN 343.1-32-M8-KRE
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
57
|
|
GN 343.1-32-M10-KRE
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
60
|
|
GN 343.1-40-M10-KRE
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
102
|
|
GN 343.1-40-M12-KRE
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
98
|
|
GN 343.1-50-M10-KRE
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
166
|
|
GN 343.1-50-M12-KRE
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
161
|
|
GN 343.1-60-M12-KRE
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
317
|
|
GN 343.1-60-M16-KRE
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
298
|
|
GN 343.1-25-M6-KS
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
43
|
|
GN 343.1-25-M8-KS
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
32
|
|
GN 343.1-32-M8-KS
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
60
|
|
GN 343.1-32-M10-KS
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
63
|
|
GN 343.1-40-M10-KS
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
107
|
|
GN 343.1-40-M12-KS
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
103
|
|
GN 343.1-50-M10-KS
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
177
|
|
GN 343.1-50-M12-KS
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
169
|
|
GN 343.1-60-M12-KS
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
336
|
|
GN 343.1-60-M16-KS
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
319
|
|
GN 343.1-25-M6-KSE
|
25
|
M 6
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
43
|
|
GN 343.1-25-M8-KSE
|
25
|
M 8
|
-
|
20.5
|
-
|
5.5
|
12
|
9
|
32
|
|
GN 343.1-32-M8-KSE
|
32
|
M 8
|
-
|
24.5
|
-
|
6.5
|
12
|
9
|
60
|
|
GN 343.1-32-M10-KSE
|
32
|
M 10
|
-
|
24.5
|
-
|
6.5
|
15
|
10.5
|
63
|
|
GN 343.1-40-M10-KSE
|
40
|
M 10
|
-
|
27.5
|
-
|
7.5
|
15
|
10.5
|
107
|
|
GN 343.1-40-M12-KSE
|
40
|
M 12
|
-
|
27.5
|
-
|
7.5
|
17
|
11.5
|
103
|
|
GN 343.1-50-M10-KSE
|
50
|
M 10
|
-
|
29.5
|
-
|
8.5
|
15
|
10.5
|
177
|
|
GN 343.1-50-M12-KSE
|
50
|
M 12
|
-
|
29.5
|
-
|
8.5
|
17
|
11.5
|
170
|
|
GN 343.1-60-M12-KSE
|
60
|
M 12
|
-
|
37.5
|
-
|
10
|
17
|
11.5
|
336
|
|
GN 343.1-60-M16-KSE
|
60
|
M 16
|
-
|
37.5
|
-
|
10
|
24
|
16
|
318
|
|
GN 343.1-25-M6-OS
|
25
|
M 6
|
19
|
-
|
4
|
5.5
|
12
|
9
|
34
|
|
GN 343.1-25-M8-OS
|
25
|
M 8
|
19
|
-
|
4
|
5.5
|
12
|
9
|
30
|
|
GN 343.1-32-M8-OS
|
32
|
M 8
|
23
|
-
|
5
|
6.5
|
12
|
9
|
65
|
|
GN 343.1-32-M10-OS
|
32
|
M 10
|
23
|
-
|
5
|
6.5
|
15
|
10.5
|
65
|
|
GN 343.1-40-M10-OS
|
40
|
M 10
|
26
|
-
|
6
|
7.5
|
15
|
10.5
|
108
|
|
GN 343.1-40-M12-OS
|
40
|
M 12
|
26
|
-
|
6
|
7.5
|
17
|
11.5
|
100
|
|
GN 343.1-50-M10-OS
|
50
|
M 10
|
28
|
-
|
7
|
8.5
|
15
|
10.5
|
180
|
|
GN 343.1-50-M12-OS
|
50
|
M 12
|
28
|
-
|
7
|
8.5
|
17
|
11.5
|
160
|
|
GN 343.1-60-M12-OS
|
60
|
M 12
|
36
|
-
|
8.5
|
10
|
17
|
11.5
|
340
|
|
GN 343.1-60-M16-OS
|
60
|
M 16
|
36
|
-
|
8.5
|
10
|
24
|
16
|
323
|
Types

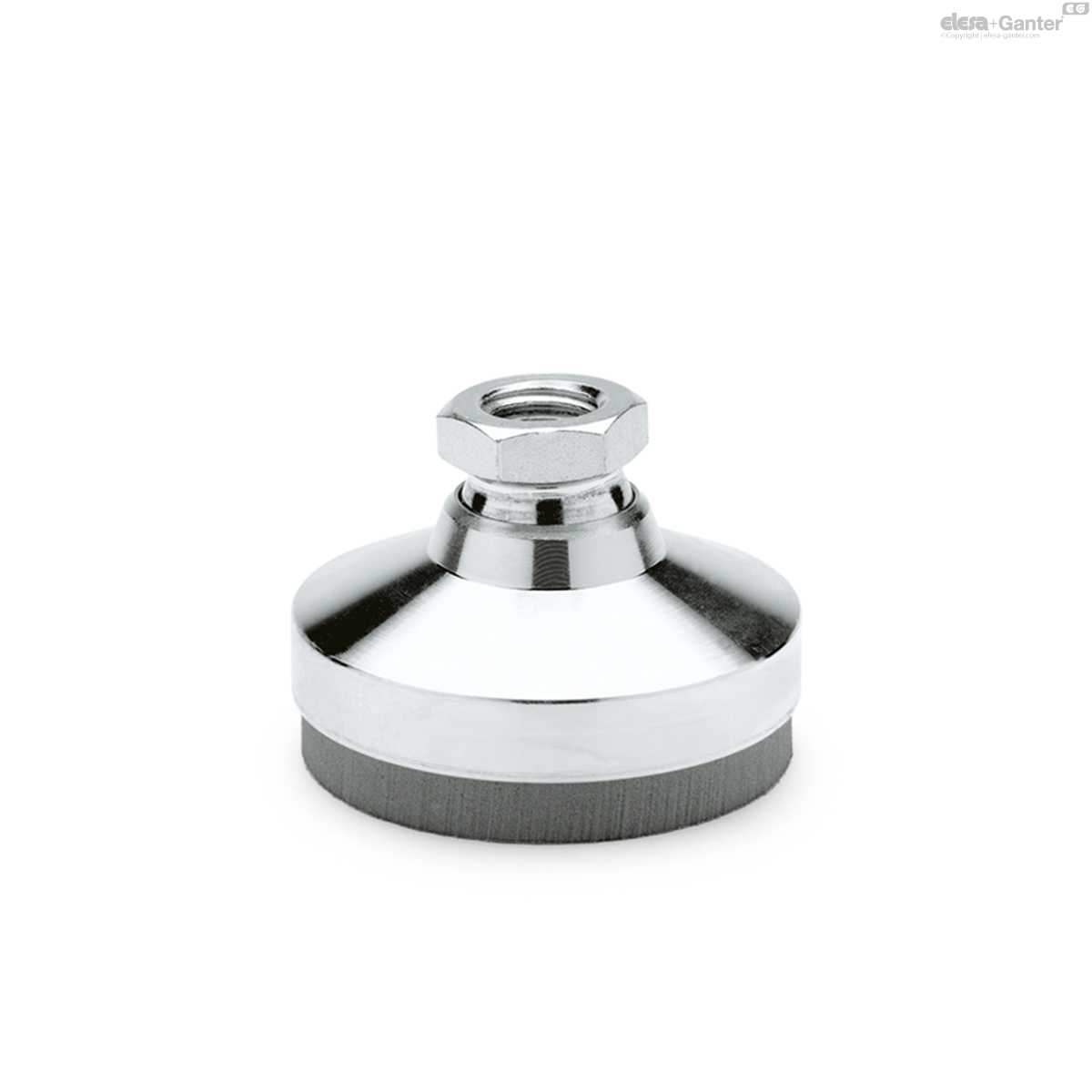

- Type OS: without plastic cap
- Type KS: with plastic cap, gliding
- Type KR: with plastic cap, non-gliding
- Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
- Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)
Steel
Tensile strength class 5.8
zinc plated, blue passivated
Type KS / KSE
Plastic cap Polyacetal (POM)
KS: white (natural colour) RAL 9001
KSE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
Type KR / KRE
Plastic cap Elastomer (TPE), 78 Shore A ≈
KR: black
KRE: black, electrically conductive
Surface resistivity: < 106 Ω
Volume resistivity: < 107 Ω
DIN EN 61340-5-1 / 61340-2-3
The static load of the levelling mounts GN 343.1 is limited by the load capacity of the ball joint with threaded stud (tensile strength class 5.8 ). The static load values (only valid for Type OS / KS) in the table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.
Levelling feet GN 343.1 cannot be disassembled.
