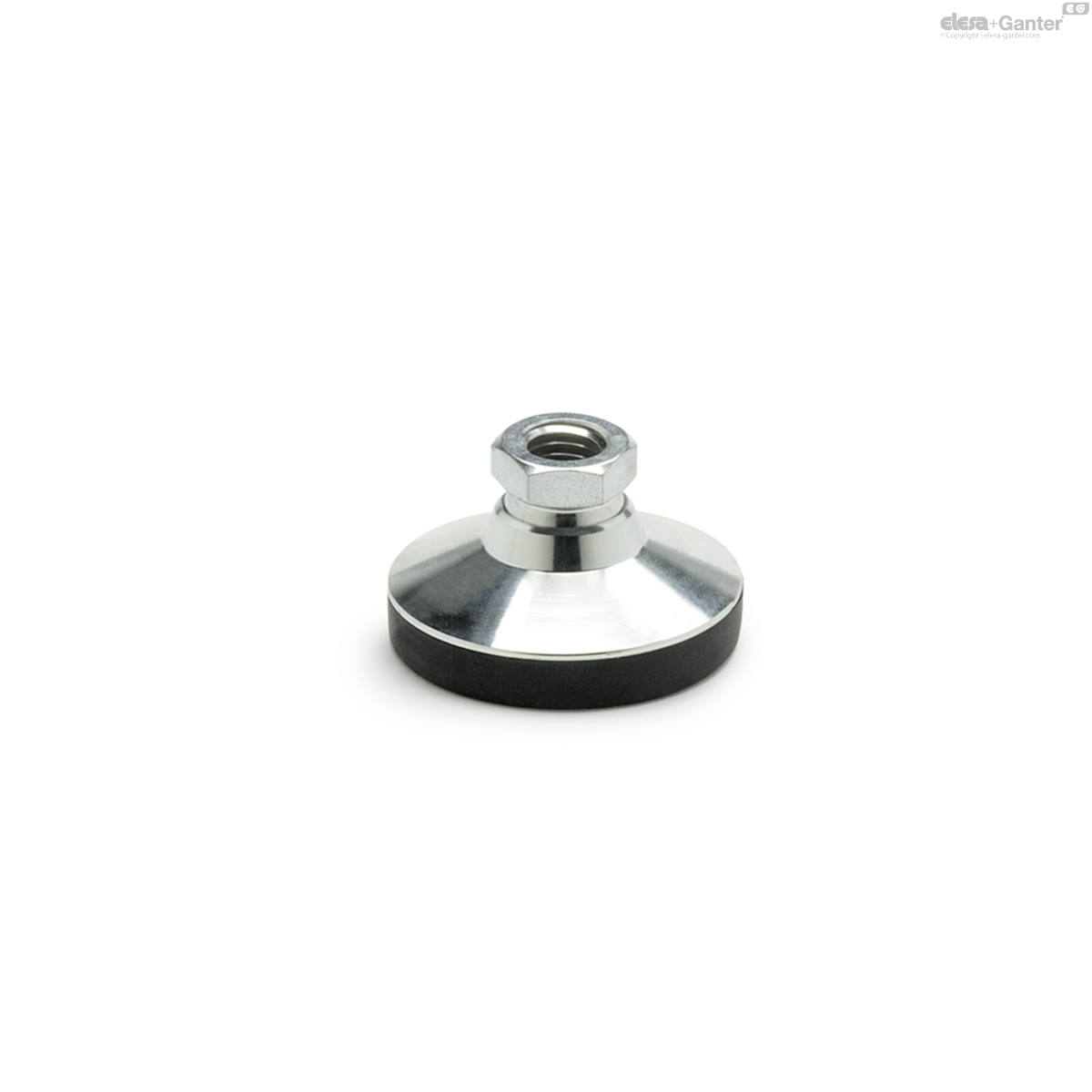

GN 343.1Pieds de machine

Pieds de machine

Pied, filetage femelle

  • Icons/__logo__ESD__.png
  • Icons/__logo__RoHS__.png
Pieds de machine
Pieds de machine

GN 343.1

Code
d1
d2
l2
l3
l4
l5
A/F
t min.
25
M 6
-
20.5
-
-
12
9
31
25
M 8
-
20.5
-
-
12
9
30
32
M 8
-
24.5
-
-
12
9
57
32
M 10
-
24.5
-
-
15
10.5
59
40
M 10
-
27.5
-
-
15
10.5
101
40
M 12
-
27.5
-
-
17
11.5
97
50
M 10
-
29.5
-
-
15
10.5
165
50
M 12
-
29.5
-
-
17
11.5
160
60
M 12
-
37.5
-
-
17
11.5
313
60
M 16
-
37.5
-
-
24
16
294
25
M 6
-
20.5
-
5.5
12
9
42
25
M 8
-
20.5
-
5.5
12
9
31
32
M 8
-
24.5
-
6.5
12
9
57
32
M 10
-
24.5
-
6.5
15
10.5
60
40
M 10
-
27.5
-
7.5
15
10.5
102
40
M 12
-
27.5
-
7.5
17
11.5
98
50
M 10
-
29.5
-
8.5
15
10.5
166
50
M 12
-
29.5
-
8.5
17
11.5
161
60
M 12
-
37.5
-
10
17
11.5
317
60
M 16
-
37.5
-
10
24
16
298
25
M 6
-
20.5
-
5.5
12
9
43
25
M 8
-
20.5
-
5.5
12
9
32
32
M 8
-
24.5
-
6.5
12
9
60
32
M 10
-
24.5
-
6.5
15
10.5
63
40
M 10
-
27.5
-
7.5
15
10.5
107
40
M 12
-
27.5
-
7.5
17
11.5
103
50
M 10
-
29.5
-
8.5
15
10.5
177
50
M 12
-
29.5
-
8.5
17
11.5
169
60
M 12
-
37.5
-
10
17
11.5
336
60
M 16
-
37.5
-
10
24
16
319
25
M 6
-
20.5
-
5.5
12
9
43
25
M 8
-
20.5
-
5.5
12
9
32
32
M 8
-
24.5
-
6.5
12
9
60
32
M 10
-
24.5
-
6.5
15
10.5
63
40
M 10
-
27.5
-
7.5
15
10.5
107
40
M 12
-
27.5
-
7.5
17
11.5
103
50
M 10
-
29.5
-
8.5
15
10.5
177
50
M 12
-
29.5
-
8.5
17
11.5
170
60
M 12
-
37.5
-
10
17
11.5
336
60
M 16
-
37.5
-
10
24
16
318
25
M 6
19
-
4
5.5
12
9
34
25
M 8
19
-
4
5.5
12
9
30
32
M 8
23
-
5
6.5
12
9
65
32
M 10
23
-
5
6.5
15
10.5
65
40
M 10
26
-
6
7.5
15
10.5
108
40
M 12
26
-
6
7.5
17
11.5
100
50
M 10
28
-
7
8.5
15
10.5
180
50
M 12
28
-
7
8.5
17
11.5
160
60
M 12
36
-
8.5
10
17
11.5
340
60
M 16
36
-
8.5
10
24
16
323

Types

  • Type OS: without plastic cap
  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding
  • Type KSE: with plastic cap, gliding, electrically conductive (antistatic)
  • Type KRE: with plastic cap, non-gliding, electrically conductive (antistatic)

Steel

Tensile strength class 5.8

zinc plated, blue passivated

Type KS / KSE

Plastic cap Polyacetal (POM)

KS: white (natural colour) RAL 9001

KSE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

Type KR / KRE

Plastic cap Elastomer (TPE), 78 Shore A ≈

KR: black

KRE: black, electrically conductive

Surface resistivity: < 106 Ω

Volume resistivity: < 107 Ω

DIN EN 61340-5-1 / 61340-2-3

The static load of the levelling mounts GN 343.1 is limited by the load capacity of the ball joint with threaded stud (tensile strength class 5.8 ). The static load values (only valid for Type OS / KS) in the table refer to a net vertical load in relation to the levelling foot. Under normal operating conditions side loading or angular loading is not uncommon and the load capacity would be considerably reduced which must be taken into consideration.

Levelling feet GN 343.1 cannot be disassembled.
