GN 2283-6-JVWaterpassen

6 hoekminuten, bel beweegt 2 mm. Verstelbaar, montage vanaf de voorkant

Behuizing Aluminium, voor montage met schroeven

Technical datasheet

6 hoekminuten, bel beweegt 2 mm. Verstelbaar, montage vanaf de voorkant

GN 2283-6-JV

6 hoekminuten, bel beweegt 2 mm. Verstelbaar, montage vanaf de voorkant

GN 2283-50-JV

50 angle minutes, bubble move by 2 mm. Adjustable, mounting from the front side

GN 2283-6-AV

6 hoekminuten, bel beweegt 2 mm. Uitgelijnd, montage vanaf de voorkant (niet verstelbaar)

GN 2283-50-AV

50 angle minutes, bubble move by 2 mm. Aligned, mounting from the front side (not adjustable)

GN 2283-6-JV

Reset

Code	l	b	d₁	d₂	h₁	h₂	h₃	m

GN 2283-ALN-54-G-6-JV	54	15.5	3.4	6.3	14.5	11.3	1	45	25

Sensitivity

6 Angle minutes, bubble move by 2 mm
50 Angle minutes, bubble move by 2 mm

Types

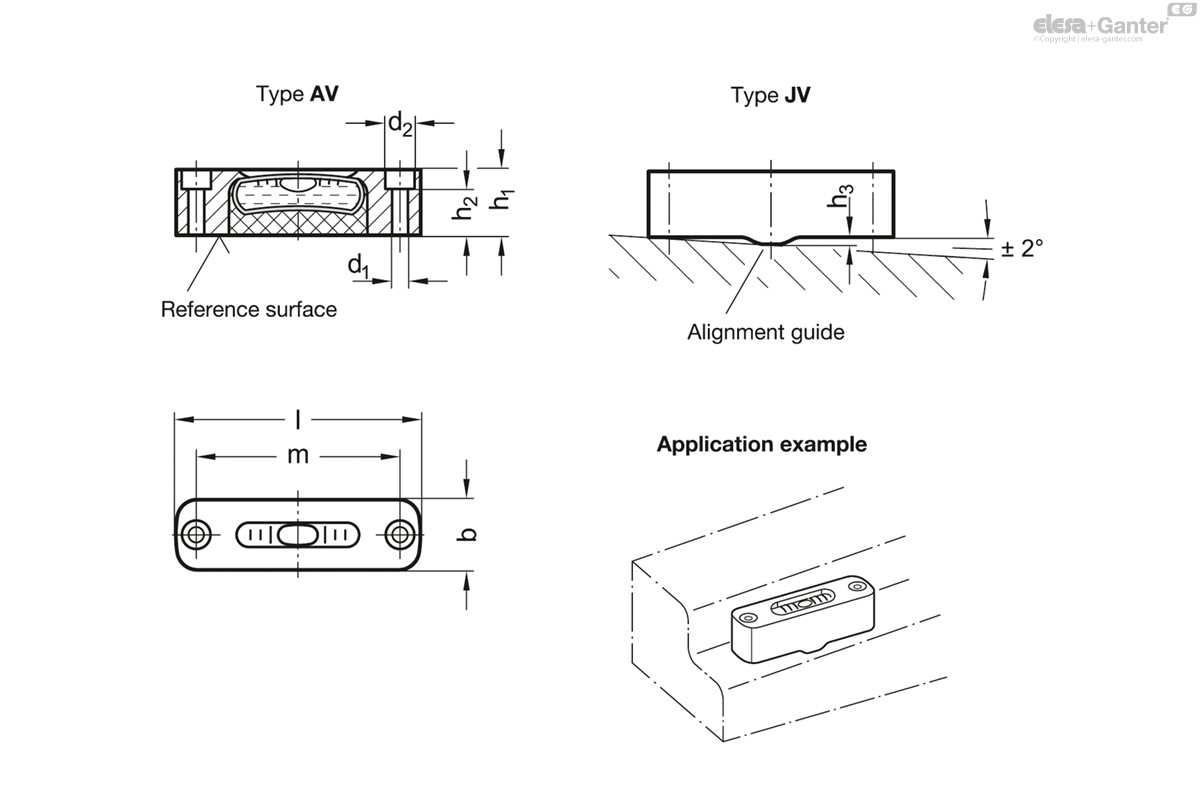

Type AV: Aligned, mounting from the front side (not adjustable)
Type JV: Adjustable, mounting from the front side

Housing

Aluminum

Anodized, natural color ALN

Anodized, black ALS

Spirit level element

Glass plastic body

Filling

Green-transparent G

Casting compound

Mineral-based

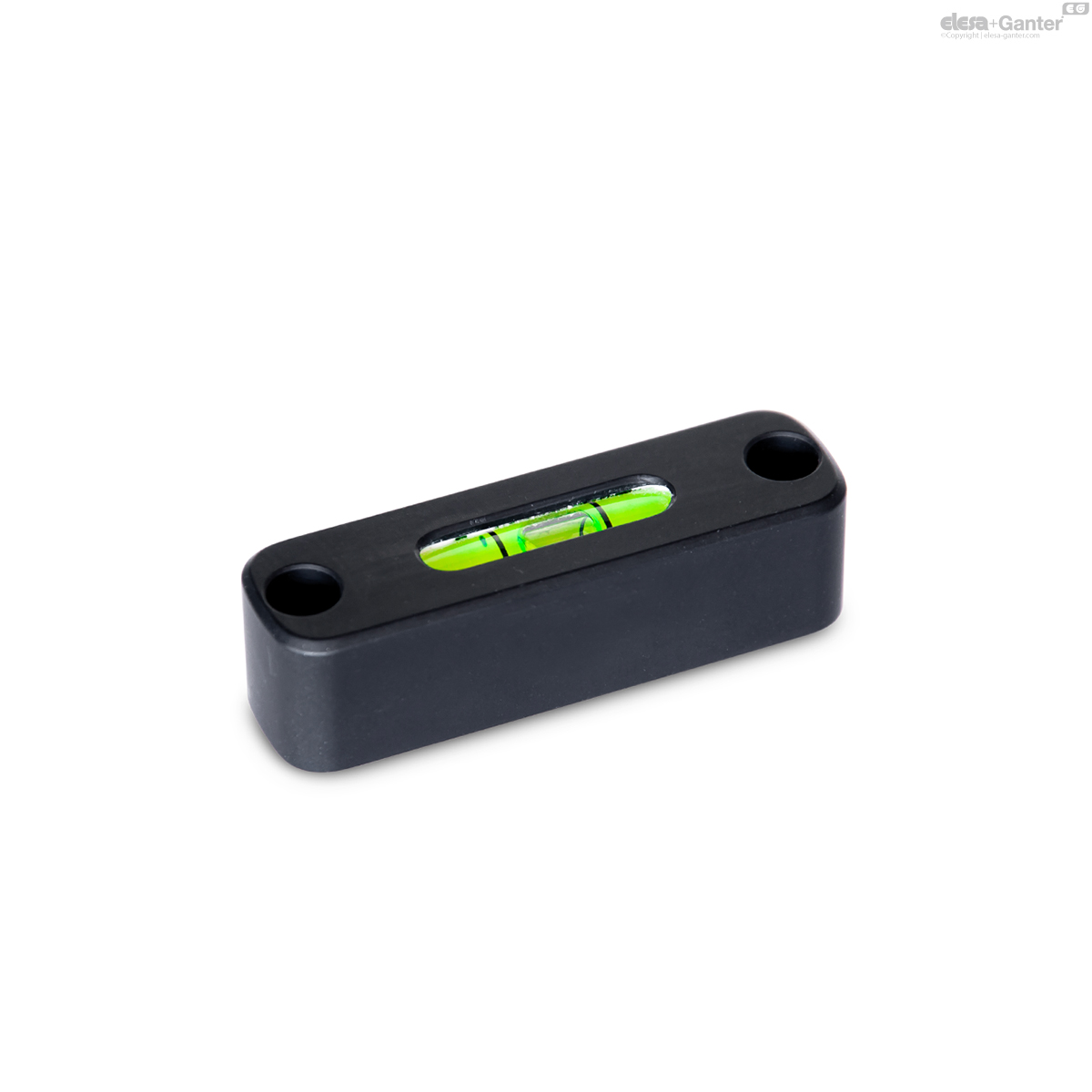

Screw-on spirit levels GN 2283 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels of type AV are aligned in relation to the reference surface so that the bubble is centered in the middle of the marking lines once the horizontal position of the contact surface is reached.

The spirit levels of type JV are aligned during installation using the fastening holes. An alignment guide on the bottom serves as a pivot point. With careful tightening, it is possible to achieve an alignment that places the bubble between the middle marking lines.
