GN 2283-6-JVScrew-On Spirit Levels

6 angle minutes, bubble move by 2 mm. Adjustable, mounting from the front side

Housing Aluminum, for Mounting with Screws

Technical datasheet

6 angle minutes, bubble move by 2 mm. Adjustable, mounting from the front side

GN 2283-6-JV

6 angle minutes, bubble move by 2 mm. Adjustable, mounting from the front side

GN 2283-50-JV

50 angle minutes, bubble move by 2 mm. Adjustable, mounting from the front side

GN 2283-6-AV

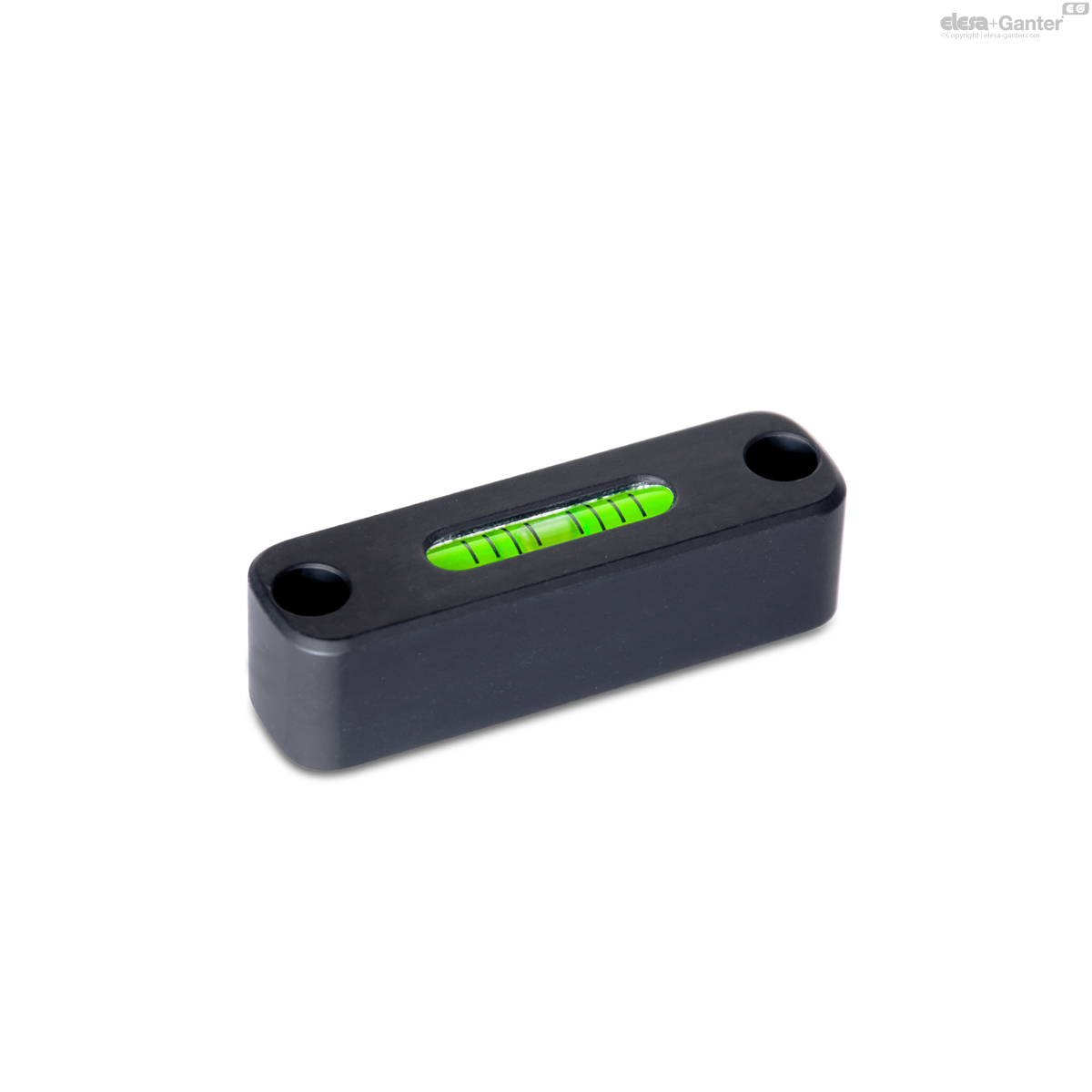

6 angle minutes, bubble move by 2 mm. Aligned, mounting from the front side (not adjustable)

GN 2283-50-AV

50 angle minutes, bubble move by 2 mm. Aligned, mounting from the front side (not adjustable)

GN 2283-6-JV

Reset

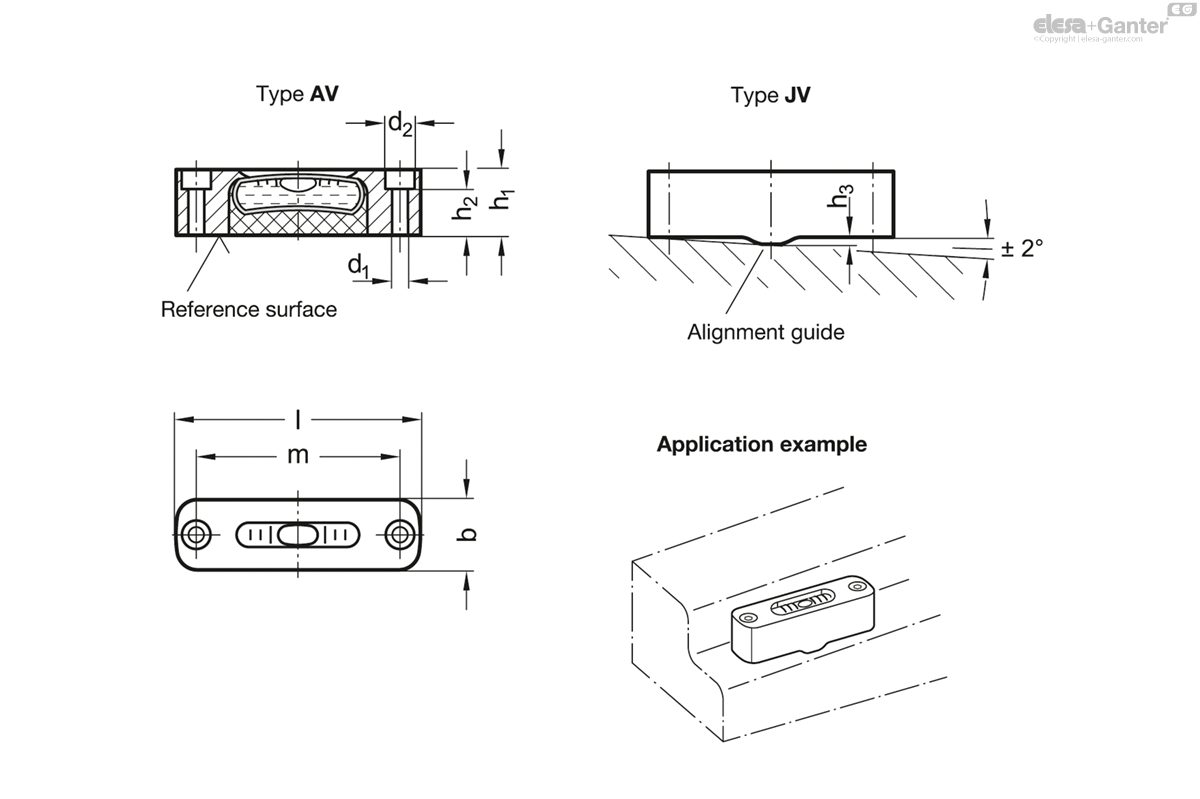

Catalogue	l	b	d₁	d₂	h₁	h₂	h₃	m

GN 2283-ALN-54-G-6-JV	54	15.5	3.4	6.3	14.5	11.3	1	45	25

Sensitivity

6 Angle minutes, bubble move by 2 mm
50 Angle minutes, bubble move by 2 mm

Types

Type AV: Aligned, mounting from the front side (not adjustable)
Type JV: Adjustable, mounting from the front side

Housing

Aluminum

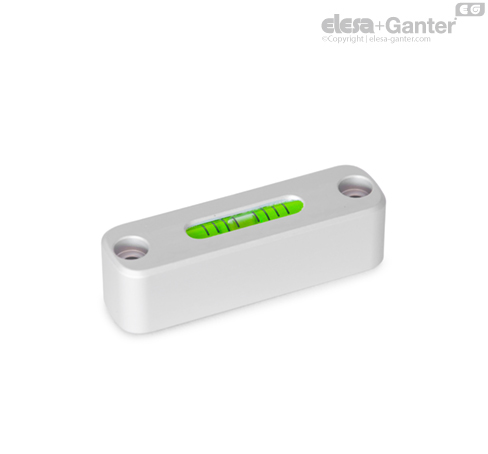

Anodized, natural color ALN

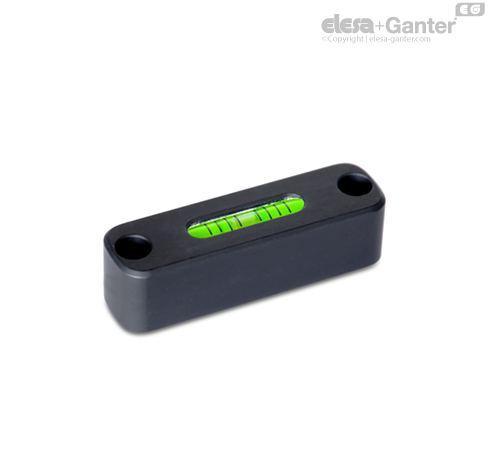

Anodized, black ALS

Spirit level element

Glass plastic body

Filling

Green-transparent G

Casting compound

Mineral-based

Screw-on spirit levels GN 2283 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels of type AV are aligned in relation to the reference surface so that the bubble is centered in the middle of the marking lines once the horizontal position of the contact surface is reached.

The spirit levels of type JV are aligned during installation using the fastening holes. An alignment guide on the bottom serves as a pivot point. With careful tightening, it is possible to achieve an alignment that places the bubble between the middle marking lines.
