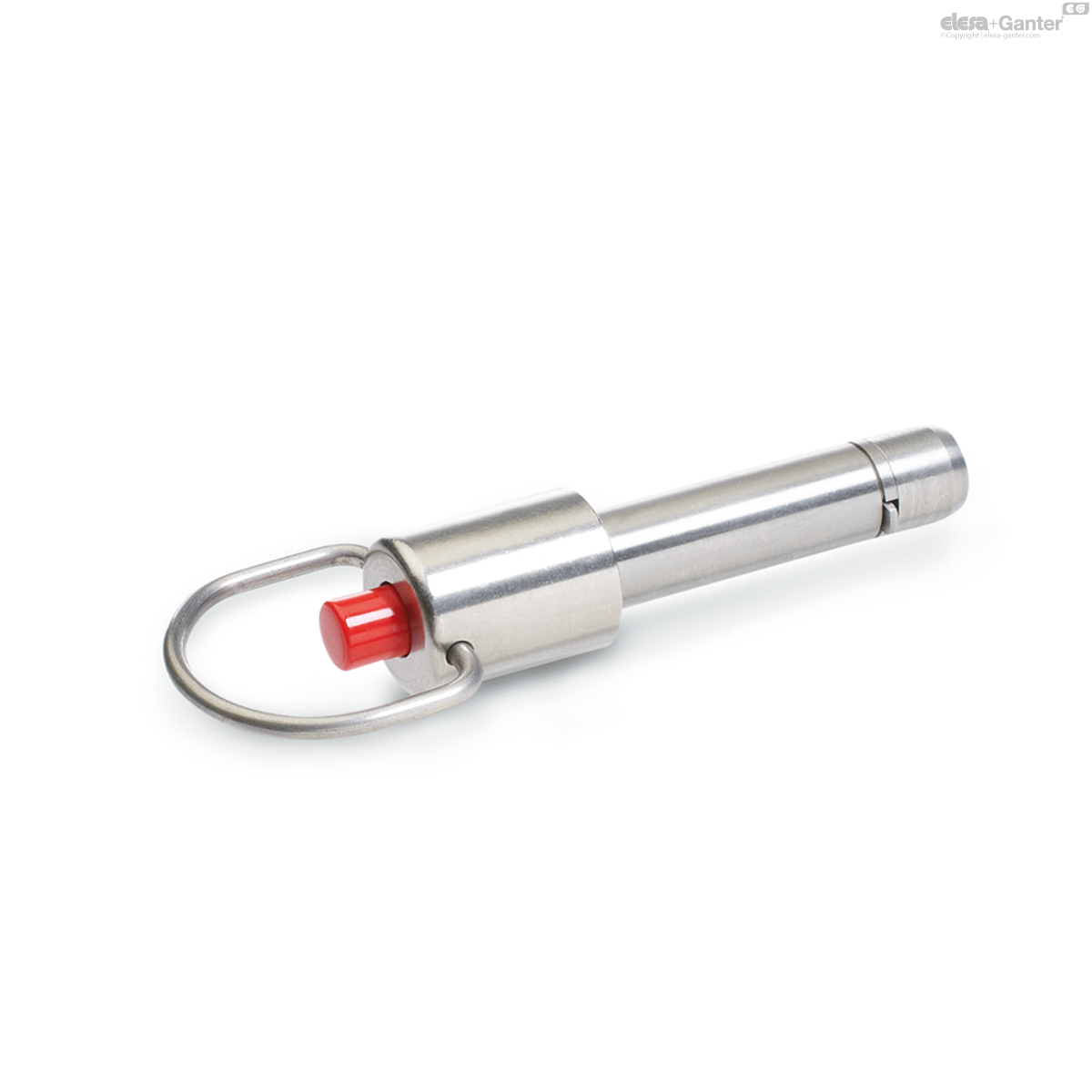

GN 214.3Roestvrijstalen borgpennen

Roestvrijstalen borgpennen

Kunststof schuif, met axiale vergrendeling (pal)

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
pdf Other documents
Roestvrijstalen borgpennen
Roestvrijstalen borgpennen

GN 214.3

Reset

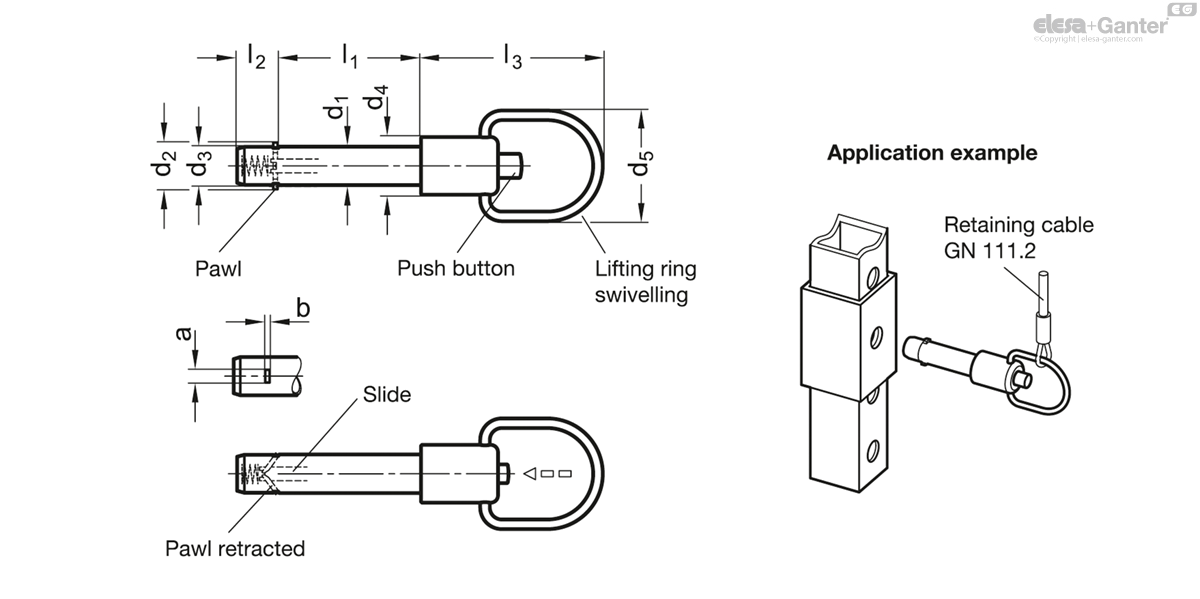

Code
d1 -0.1
l1 +0.4
a
b
d2
d3
d4
d5
l2
l3
Load in kN ≈
(Double sided
shear force)
see information
GN 214.3-6-10
6
10
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
18
GN 214.3-6-12
6
12
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
18
GN 214.3-6-16
6
16
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
19
GN 214.3-6-20
6
20
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
20
GN 214.3-6-25
6
25
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
20
GN 214.3-6-30
6
30
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
21
GN 214.3-6-35
6
35
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
22
GN 214.3-6-40
6
40
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
23
GN 214.3-6-45
6
45
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
24
GN 214.3-6-50
6
50
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
24
GN 214.3-6-60
6
60
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
29
GN 214.3-6-70
6
70
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
29
GN 214.3-6-80
6
80
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
33
GN 214.3-8-10
6
10
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
30
GN 214.3-8-16
8
16
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
GN 214.3-8-20
8
20
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
29
GN 214.3-8-25
8
25
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
31
GN 214.3-8-30
8
30
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
GN 214.3-8-35
8
35
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
GN 214.3-8-40
8
40
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
36
GN 214.3-8-45
8
45
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
38
GN 214.3-8-50
8
50
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
39
GN 214.3-8-60
8
60
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
45
GN 214.3-8-70
8
70
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
50
GN 214.3-8-80
8
80
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
54
GN 214.3-8-90
8
90
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
56
GN 214.3-8-100
8
100
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
28
58
GN 214.3-10-15
10
15
3.3
1
12 +1
9.9
16
28
9.8
42
47
39
GN 214.3-10-20
10
20
3.3
1
12 +1
9.9
16
28
9.8
42
47
41
GN 214.3-10-25
10
25
3.3
1
12 +1
9.9
16
28
9.8
42
47
43
GN 214.3-10-30
10
30
3.3
1
12 +1
9.9
16
28
9.8
42
47
45
GN 214.3-10-35
10
35
3.3
1
12 +1
9.9
16
28
9.8
42
47
47
GN 214.3-10-40
10
40
3.3
1
12 +1
9.9
16
28
9.8
42
47
49
GN 214.3-10-45
10
45
3.3
1
12 +1
9.9
16
28
9.8
42
47
51
GN 214.3-10-50
10
50
3.3
1
12 +1
9.9
16
28
9.8
42
47
54
GN 214.3-10-60
10
60
3.3
1
12 +1
9.9
16
28
9.8
42
47
58
GN 214.3-10-70
10
70
3.3
1
12 +1
9.9
16
28
9.8
42
47
63
GN 214.3-10-80
10
80
3.3
1
12 +1
9.9
16
28
9.8
42
47
69
GN 214.3-10-90
10
90
3.3
1
12 +1
9.9
16
28
9.8
42
47
74
GN 214.3-10-100
10
100
3.3
1
12 +1
9.9
16
28
9.8
42
47
77
GN 214.3-10-110
10
110
3.3
1
12 +1
9.9
16
28
9.8
42
47
81
GN 214.3-10-120
10
120
3.3
1
12 +1
9.9
16
28
9.8
42
47
87
GN 214.3-12-20
12
20
3.8
1
14 +1
11.9
16
28
11.3
42
75
48
GN 214.3-12-25
12
25
3.8
1
14 +1
11.9
16
28
11.3
42
75
51
GN 214.3-12-30
12
30
3.8
1
14 +1
11.9
16
28
11.3
42
75
55
GN 214.3-12-35
12
35
3.8
1
14 +1
11.9
16
28
11.3
42
75
58
GN 214.3-12-40
12
40
3.8
1
14 +1
11.9
16
28
11.3
42
75
62
GN 214.3-12-45
12
45
3.8
1
14 +1
11.9
16
28
11.3
42
75
66
GN 214.3-12-50
12
50
3.8
1
14 +1
11.9
16
28
11.3
42
75
69
GN 214.3-12-60
12
60
3.8
1
14 +1
11.9
16
28
11.3
42
75
76
GN 214.3-12-70
12
70
3.8
1
14 +1
11.9
16
28
11.3
42
75
83
GN 214.3-12-80
12
80
3.8
1
14 +1
11.9
16
28
11.3
42
75
91
GN 214.3-12-90
12
90
3.8
1
14 +1
11.9
16
28
11.3
42
75
105
GN 214.3-12-100
12
100
3.8
1
14 +1
11.9
16
28
11.3
42
75
109
GN 214.3-12-110
12
110
3.8
1
14 +1
11.9
16
28
11.3
42
75
117
GN 214.3-12-120
12
120
3.8
1
14 +1
11.9
16
28
11.3
42
138
126
GN 214.3-16-30
16
30
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
101
GN 214.3-16-35
16
35
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
108
GN 214.3-16-40
16
40
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
115
GN 214.3-16-45
16
45
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
108
GN 214.3-16-50
16
50
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
128
GN 214.3-16-60
16
60
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
141
GN 214.3-16-70
16
70
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
156
GN 214.3-16-80
16
80
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
167
GN 214.3-16-90
16
90
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
171
GN 214.3-16-100
16
100
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
197
GN 214.3-16-110
16
110
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
209
GN 214.3-16-120
16
120
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
222
GN 214.3-16-130
16
130
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
236
GN 214.3-16-140
16
140
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
249
GN 214.3-16-150
16
150
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
263

Pin

Stainless Steel AISI 303

Slide / Push button

Plastic

temperature resistant up to 80 °C

red

Pawl

Stainless Steel sheet metal AISI 304

Lifting ring

Stainless Steel AISI 301

Spring

Stainless Steel AISI 301

Stainless Steel-Locking pins with axial lock GN 214.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
