GN 214.3

Catalogue
d1 -0.1
l1 +0.4
a
b
d2
d3
d4
d5
l2
l3
Load in kN ≈
(Double sided
shear force)
see information
6
10
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
18
6
12
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
18
6
16
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
19
6
20
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
20
6
25
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
20
6
30
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
21
6
35
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
22
6
40
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
23
6
45
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
24
6
50
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
24
6
60
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
29
6
70
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
29
6
80
2.3
0.5
7.5 +0.5
5.9
12
23
7
38
17
33
6
10
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
30
8
16
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
8
20
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
29
8
25
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
31
8
30
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
8
35
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
33
8
40
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
36
8
45
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
38
8
50
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
39
8
60
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
45
8
70
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
50
8
80
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
54
8
90
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
35
56
8
100
2.8
0.6
10 +0.5
7.9
12
23
8.4
38
28
58
10
15
3.3
1
12 +1
9.9
16
28
9.8
42
47
39
10
20
3.3
1
12 +1
9.9
16
28
9.8
42
47
41
10
25
3.3
1
12 +1
9.9
16
28
9.8
42
47
43
10
30
3.3
1
12 +1
9.9
16
28
9.8
42
47
45
10
35
3.3
1
12 +1
9.9
16
28
9.8
42
47
47
10
40
3.3
1
12 +1
9.9
16
28
9.8
42
47
49
10
45
3.3
1
12 +1
9.9
16
28
9.8
42
47
51
10
50
3.3
1
12 +1
9.9
16
28
9.8
42
47
54
10
60
3.3
1
12 +1
9.9
16
28
9.8
42
47
58
10
70
3.3
1
12 +1
9.9
16
28
9.8
42
47
63
10
80
3.3
1
12 +1
9.9
16
28
9.8
42
47
69
10
90
3.3
1
12 +1
9.9
16
28
9.8
42
47
74
10
100
3.3
1
12 +1
9.9
16
28
9.8
42
47
77
10
110
3.3
1
12 +1
9.9
16
28
9.8
42
47
81
10
120
3.3
1
12 +1
9.9
16
28
9.8
42
47
87
12
20
3.8
1
14 +1
11.9
16
28
11.3
42
75
48
12
25
3.8
1
14 +1
11.9
16
28
11.3
42
75
51
12
30
3.8
1
14 +1
11.9
16
28
11.3
42
75
55
12
35
3.8
1
14 +1
11.9
16
28
11.3
42
75
58
12
40
3.8
1
14 +1
11.9
16
28
11.3
42
75
62
12
45
3.8
1
14 +1
11.9
16
28
11.3
42
75
66
12
50
3.8
1
14 +1
11.9
16
28
11.3
42
75
69
12
60
3.8
1
14 +1
11.9
16
28
11.3
42
75
76
12
70
3.8
1
14 +1
11.9
16
28
11.3
42
75
83
12
80
3.8
1
14 +1
11.9
16
28
11.3
42
75
91
12
90
3.8
1
14 +1
11.9
16
28
11.3
42
75
105
12
100
3.8
1
14 +1
11.9
16
28
11.3
42
75
109
12
110
3.8
1
14 +1
11.9
16
28
11.3
42
75
117
12
120
3.8
1
14 +1
11.9
16
28
11.3
42
138
126
16
30
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
101
16
35
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
108
16
40
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
115
16
45
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
108
16
50
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
128
16
60
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
141
16
70
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
156
16
80
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
167
16
90
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
171
16
100
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
197
16
110
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
209
16
120
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
222
16
130
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
236
16
140
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
249
16
150
4.8
1.2
19 +1
15.9
20
32
14.2
46.5
138
263

Pin

Stainless Steel AISI 303

Slide / Push button

Plastic

temperature resistant up to 80 °C

red

Pawl

Stainless Steel sheet metal AISI 304

Lifting ring

Stainless Steel AISI 301

Spring

Stainless Steel AISI 301

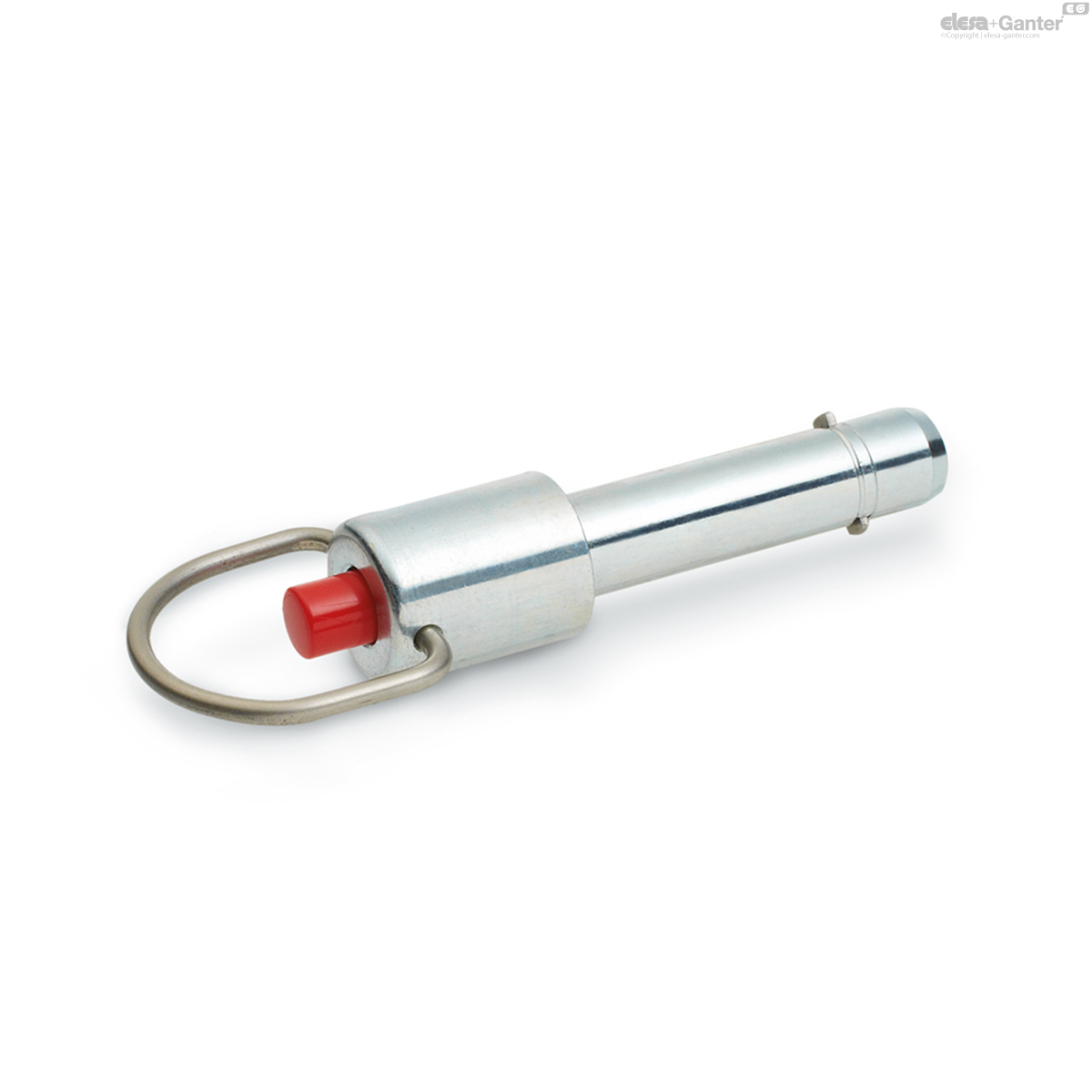

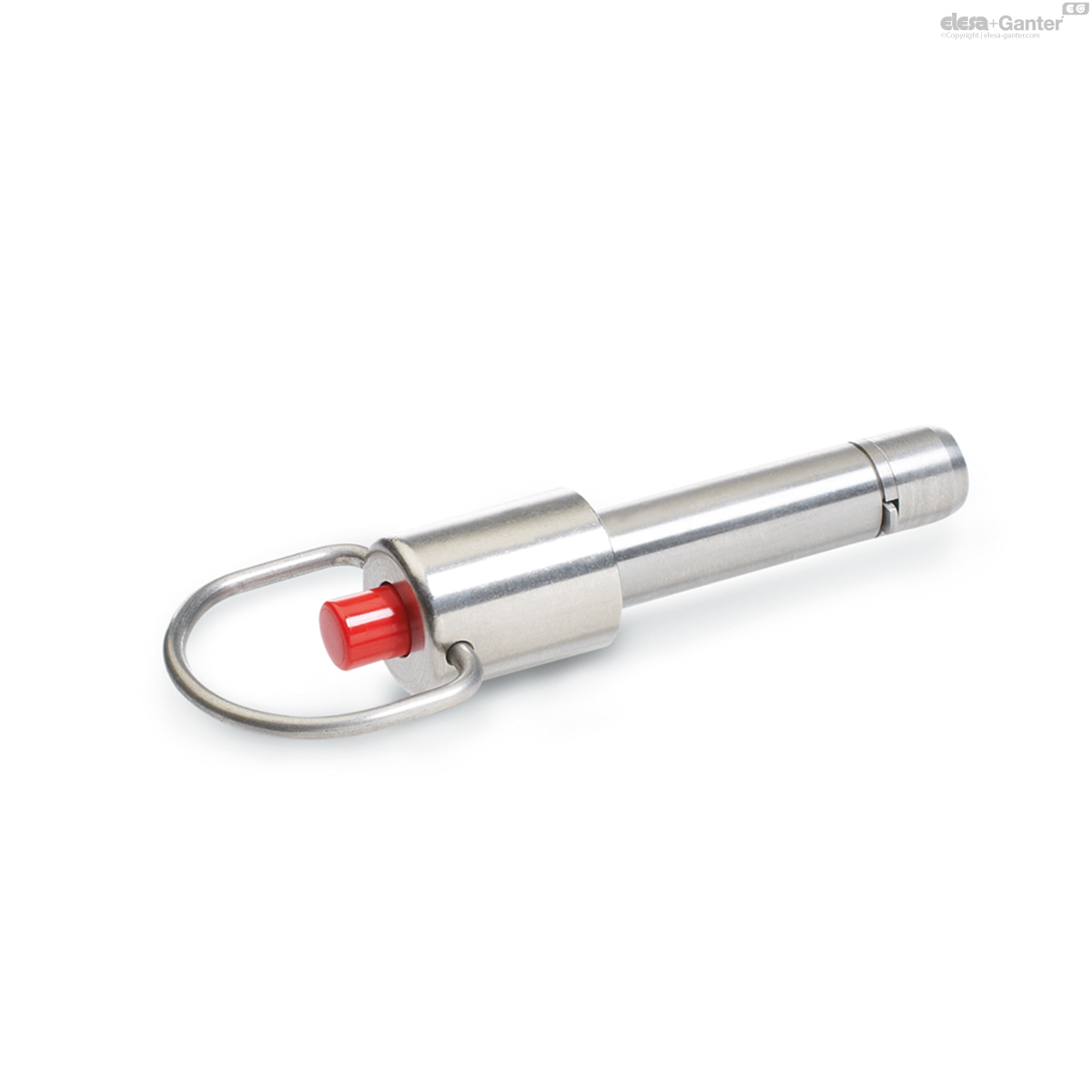

Stainless Steel-Locking pins with axial lock GN 214.3 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

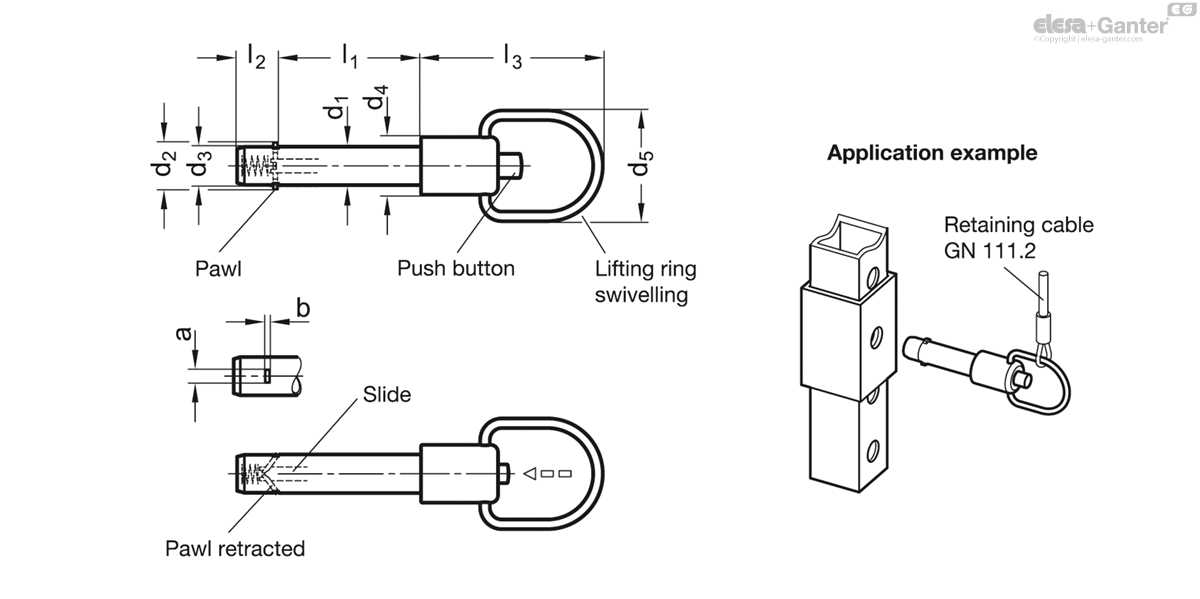

The rectangular pawls made of Stainless Steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swivelling lifting ring is ideal for the use in confined spaces.

The load values given in the above table at shear stress are theoretically obtained and indicative only. They are non-binding recommended values and rule our any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
