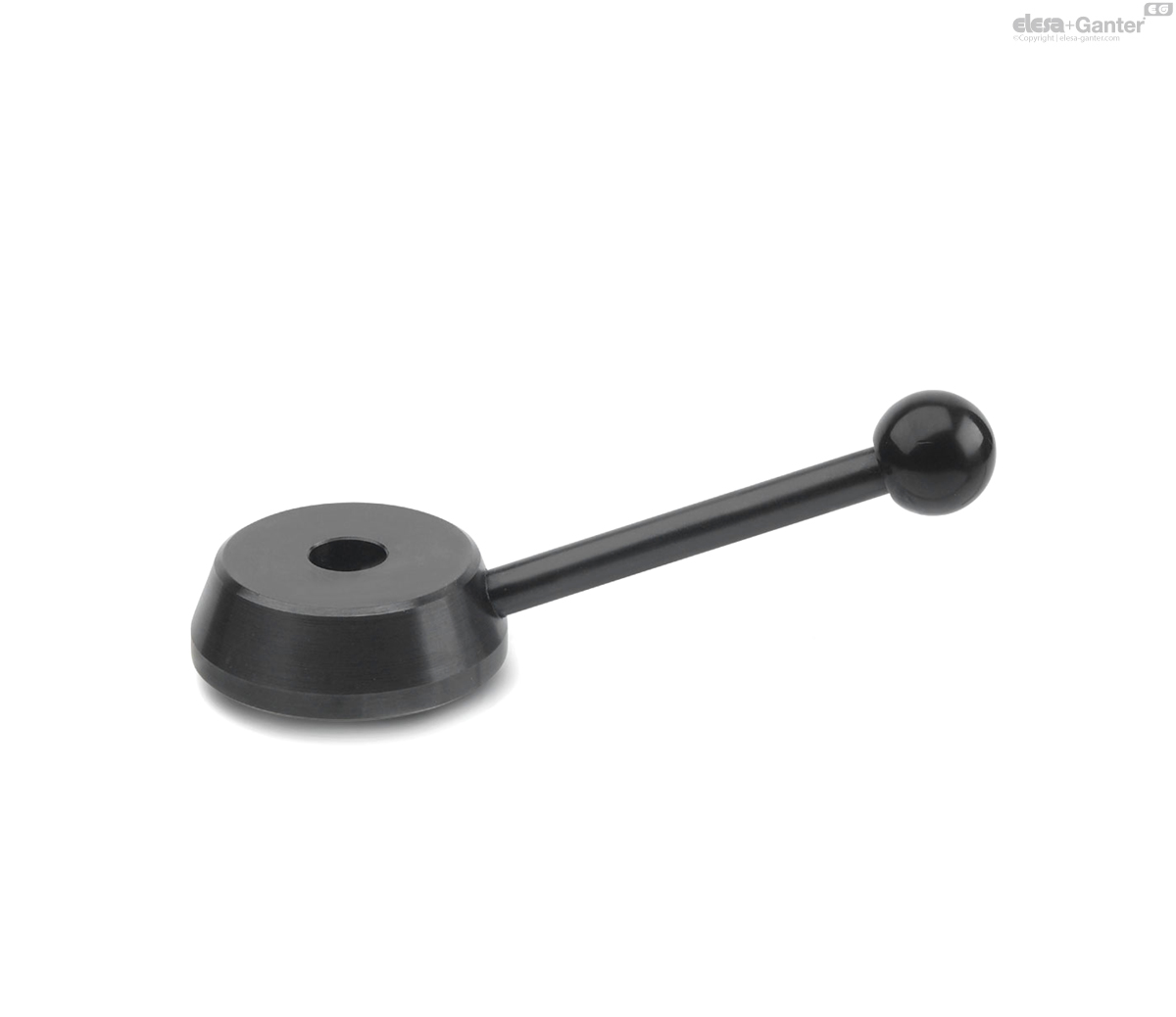

GN 211-BBedieningshendels

Zonder spiebaan

Staal, gezwart

  • Icons/__logo__RoHS__.png
pdf Other documents
Zonder spiebaan
Zonder spiebaan
Met vierkant DIN 79
GN 211-V
Met vierkant DIN 79
Met spiebaan DIN 6885-1 P9
GN 211-K
Met spiebaan DIN 6885-1 P9
Zonder spiebaan
GN 211-B
Zonder spiebaan

GN 211-B

Reset
Code

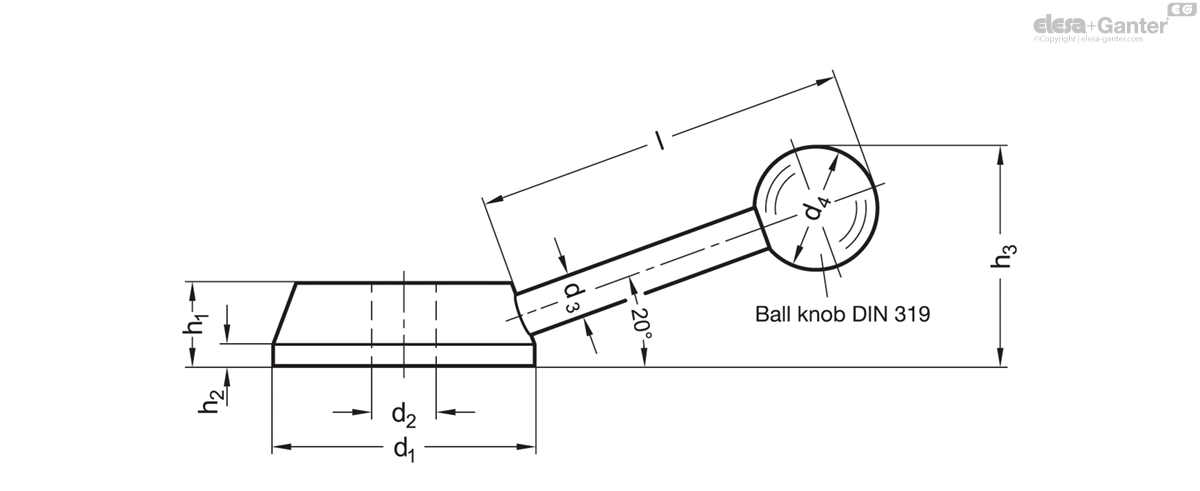

d1
d2 H7
d3
d4
h1
h2
h3 ≈
Length l ≈
GN 211-50-B12
50
B 12
8
20
17
5
45
82
244
GN 211-55-B14
55
B 14
10
25
18
5
52
96
321
GN 211-65-B16
65
B 16
12
30
20
5
60
110
519
GN 211-80-B20
80
B 16
14
35
24
6
74
138
951

Bore codes

  • Version B: Without keyway
  • Version K: With keyway DIN 6885-1 P9
  • Version V: With square DIN 79

Hub / Shaft

Steel

Blackened

Ball knob DIN 319

Plastic, phenolic resin (PF)

Black, shiny finish

Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter.

Spring plungers as well as indexing plungers can be used as indexing elements.
