Technical datasheet

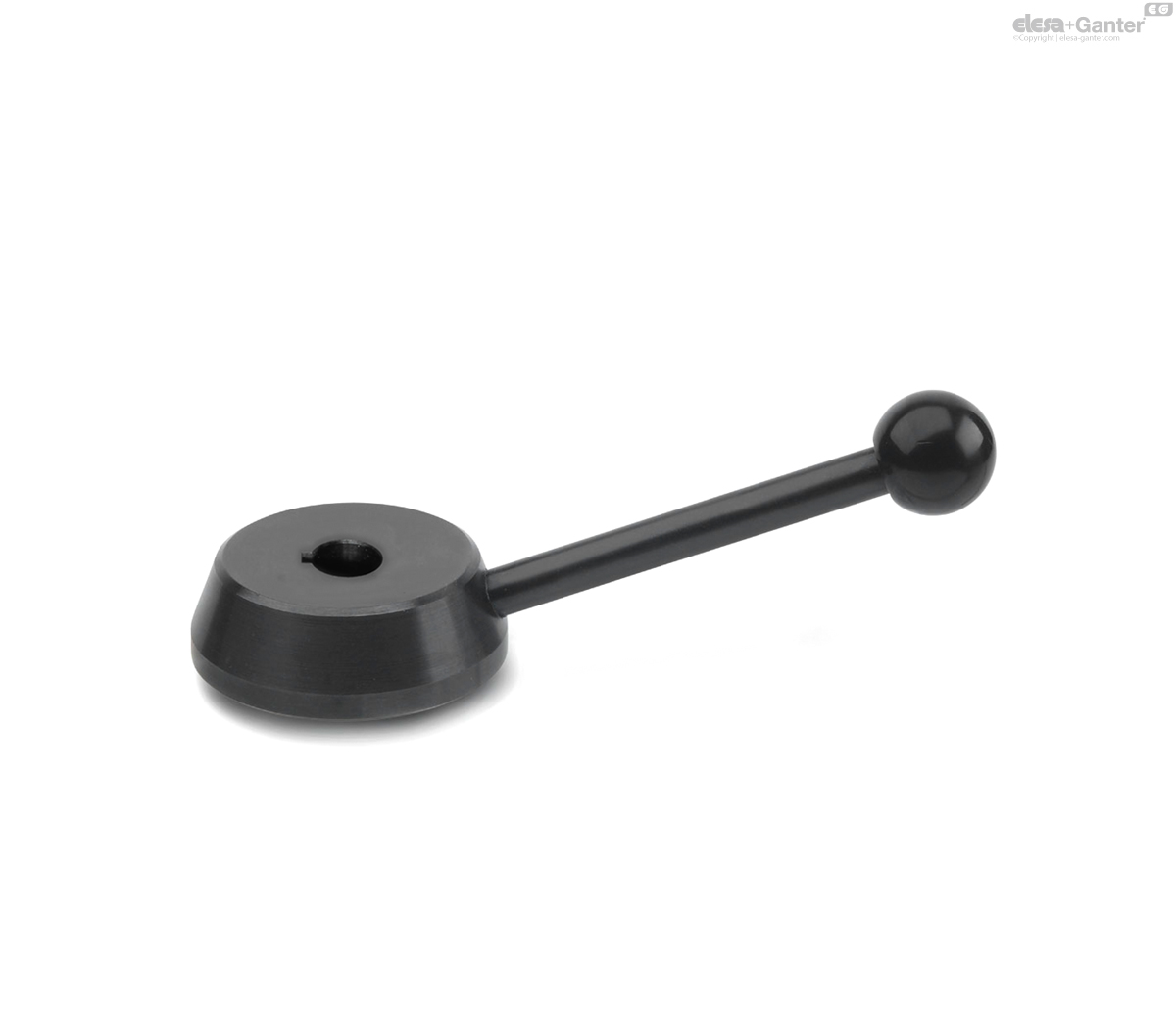

GN 211-BLeviers de commande
Sans rainure de clavette
Voler, Noirci
|
Code
|
d1
|
d2 H7
|
d3
|
d4
|
h1
|
h2
|
h3 ≈
|
Length l ≈
|
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
GN 211-50-B12
|
50
|
B 12
|
8
|
20
|
17
|
5
|
45
|
82
|
244
|
|
GN 211-55-B14
|
55
|
B 14
|
10
|
25
|
18
|
5
|
52
|
96
|
321
|
|
GN 211-65-B16
|
65
|
B 16
|
12
|
30
|
20
|
5
|
60
|
110
|
519
|
|
GN 211-80-B20
|
80
|
B 16
|
14
|
35
|
24
|
6
|
74
|
138
|
951
|
Bore codes
Bore codes
- Version B: Without keyway
- Version K: With keyway DIN 6885-1 P9
- Version V: With square DIN 79
Hub / Shaft
Hub / Shaft
Steel
Blackened
Ball knob DIN 319
Ball knob DIN 319
Plastic, phenolic resin (PF)
Black, shiny finish
Control levers GN 211 can be used in connection with indexing elements, grooves for angle limitations and such like due to their comparably big hub diameter.
Spring plungers as well as indexing plungers can be used as indexing elements.
