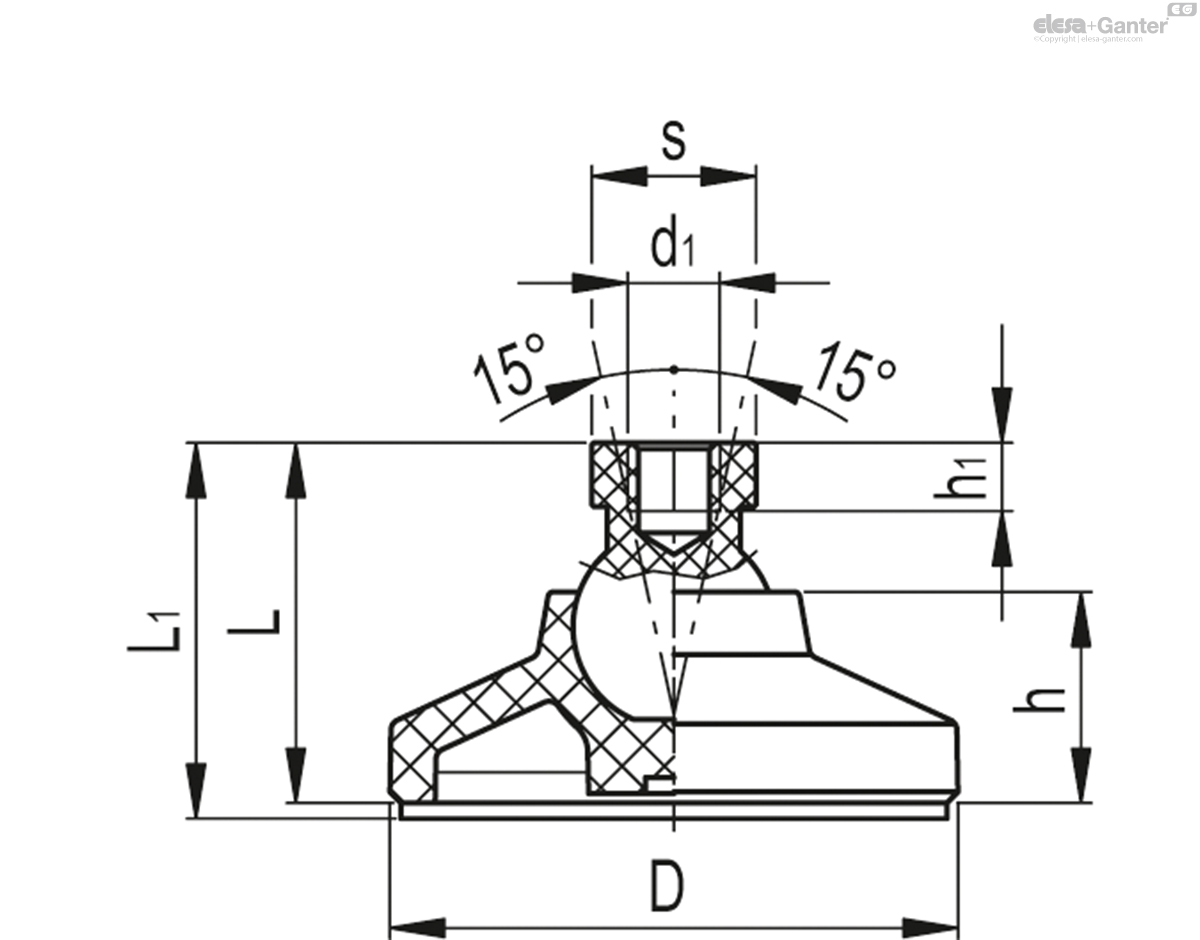

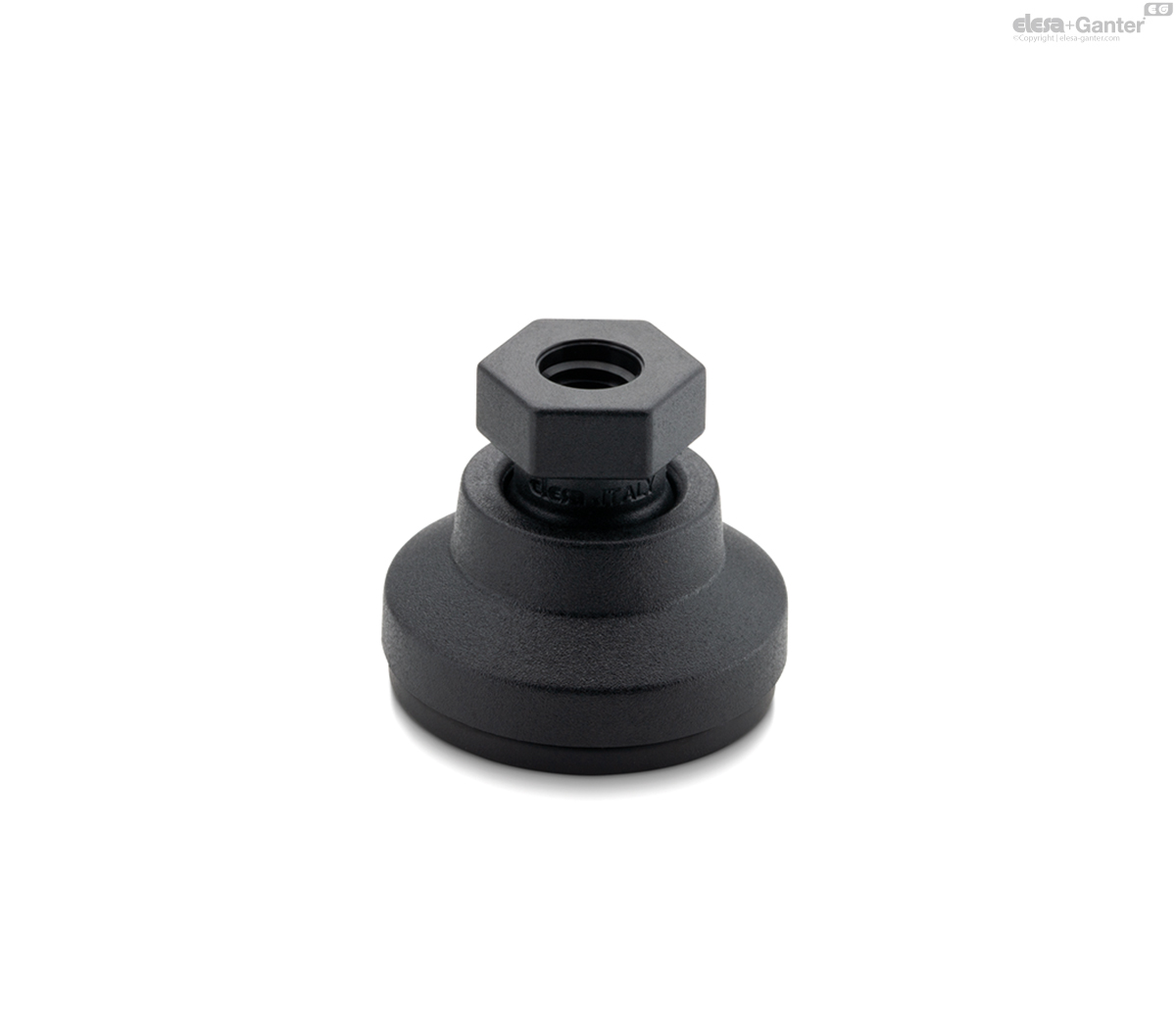

LS.A-AS+SJFVerstelbare voeten
Met antislipschijf
Voetplaat van technopolymeer , SUPER-technopolymeerverbinding
LS.A-AS+SJF
|
Code
|
Omschrijving
|
D
|
d1
|
L
|
L1
|
h
|
h1
|
s
|
Articulation
Ø |
Max. Anzugsdrehmoment für die Schraube
[Nm] |
Max. limit static load*
[N] |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300276
|
LS.A-25-14-AS+SJF-M6
|
25
|
M6
|
25
|
28
|
12
|
10
|
16
|
14
|
4
|
3100
|
11
|
|
300277
|
LS.A-25-14-AS+SJF-M8
|
25
|
M8
|
25
|
28
|
12
|
10
|
16
|
14
|
6
|
3700
|
11
|
|
300281
|
LS.A-32-14-AS+SJF-M6
|
32
|
M6
|
26
|
29
|
15
|
10
|
16
|
14
|
4
|
5000
|
15
|
|
300282
|
LS.A-32-14-AS+SJF-M8
|
32
|
M8
|
26
|
29
|
15
|
10
|
16
|
14
|
6
|
6000
|
15
|
|
300286
|
LS.A-40-14-AS+SJF-M6
|
40
|
M6
|
25.5
|
28.5
|
17
|
10
|
16
|
14
|
4
|
5600
|
25
|
|
300287
|
LS.A-40-14-AS+SJF-M8
|
40
|
M8
|
25.5
|
28.5
|
17
|
10
|
16
|
14
|
6
|
6800
|
25
|
|
300291
|
LS.A-50-14-AS+SJF-M6
|
50
|
M6
|
28
|
31
|
19
|
10
|
16
|
14
|
4
|
4600
|
35
|
|
300292
|
LS.A-50-14-AS+SJF-M8
|
50
|
M8
|
28
|
31
|
19
|
10
|
16
|
14
|
6
|
5600
|
35
|
|
300296
|
LS.A-60-14-AS+SJF-M6
|
60
|
M6
|
35
|
38
|
24
|
10
|
16
|
14
|
4
|
5800
|
45
|
|
300297
|
LS.A-60-14-AS+SJF-M8
|
60
|
M8
|
35
|
38
|
24
|
10
|
16
|
14
|
6
|
6900
|
45
|
|
300298
|
LS.A-60-24-AS+SJF-M10
|
60
|
M10
|
44
|
47
|
24
|
16
|
24
|
24
|
10
|
10500
|
50
|
|
300299
|
LS.A-60-24-AS+SJF-M12
|
60
|
M12
|
44
|
47
|
24
|
16
|
24
|
24
|
12
|
10700
|
50
|
* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level of the specifi
Base
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Ball joint
Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour.
Standard executions
- LS.A+SJF: without no-slip disk.
- LS.A-AS+SJF: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.
Features and applications
The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

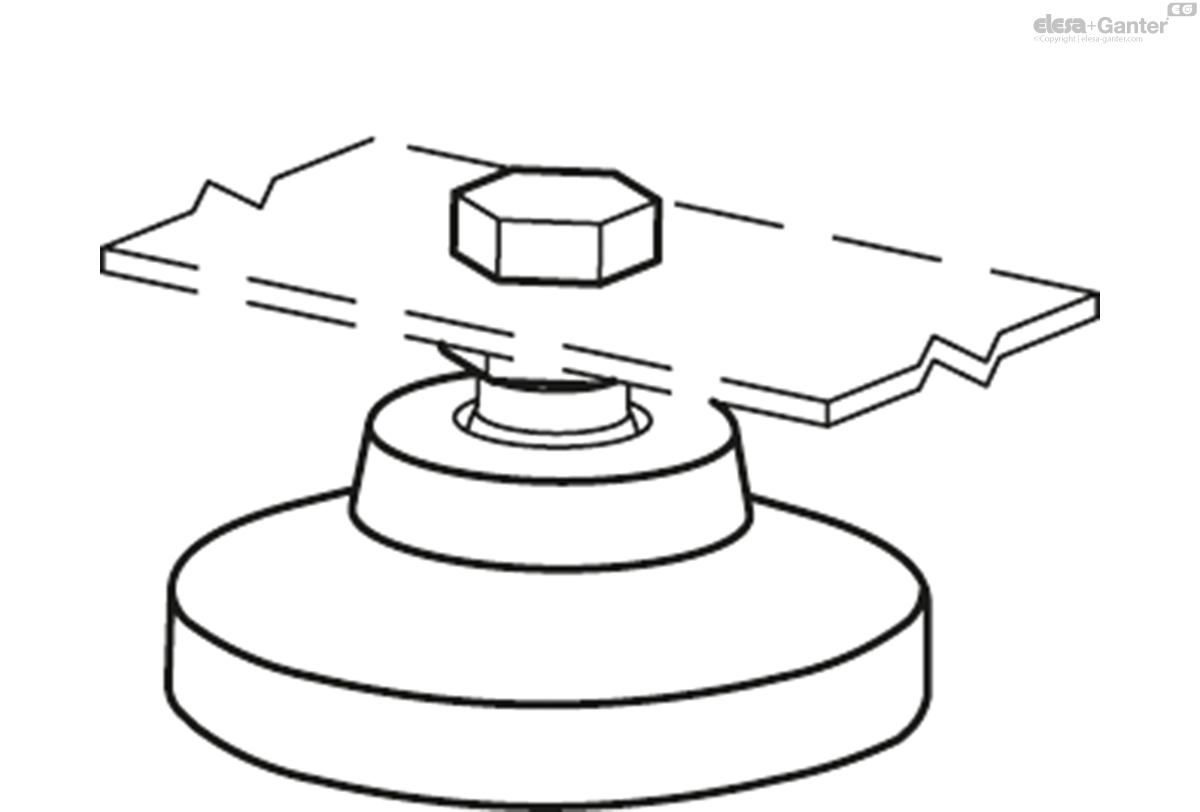

Used for direct fixing using standard screws, without the need for a threaded stem.
Another standard execution
SJF: ball joint.
