LS.A+SJFAdjustable feet

Without no-slip disk

technopolymer base, SUPER-technopolymer joint

  • Icons/__logo__PA__.png
  • Icons/__logo__SUPER_TEC__.png
  • Icons/__logo__g10030__.png
  • Icons/__logo__RoHS__.png
Without no-slip disk
Without no-slip disk Without no-slip disk
Without no-slip disk
LS.A+SJF
Without no-slip disk

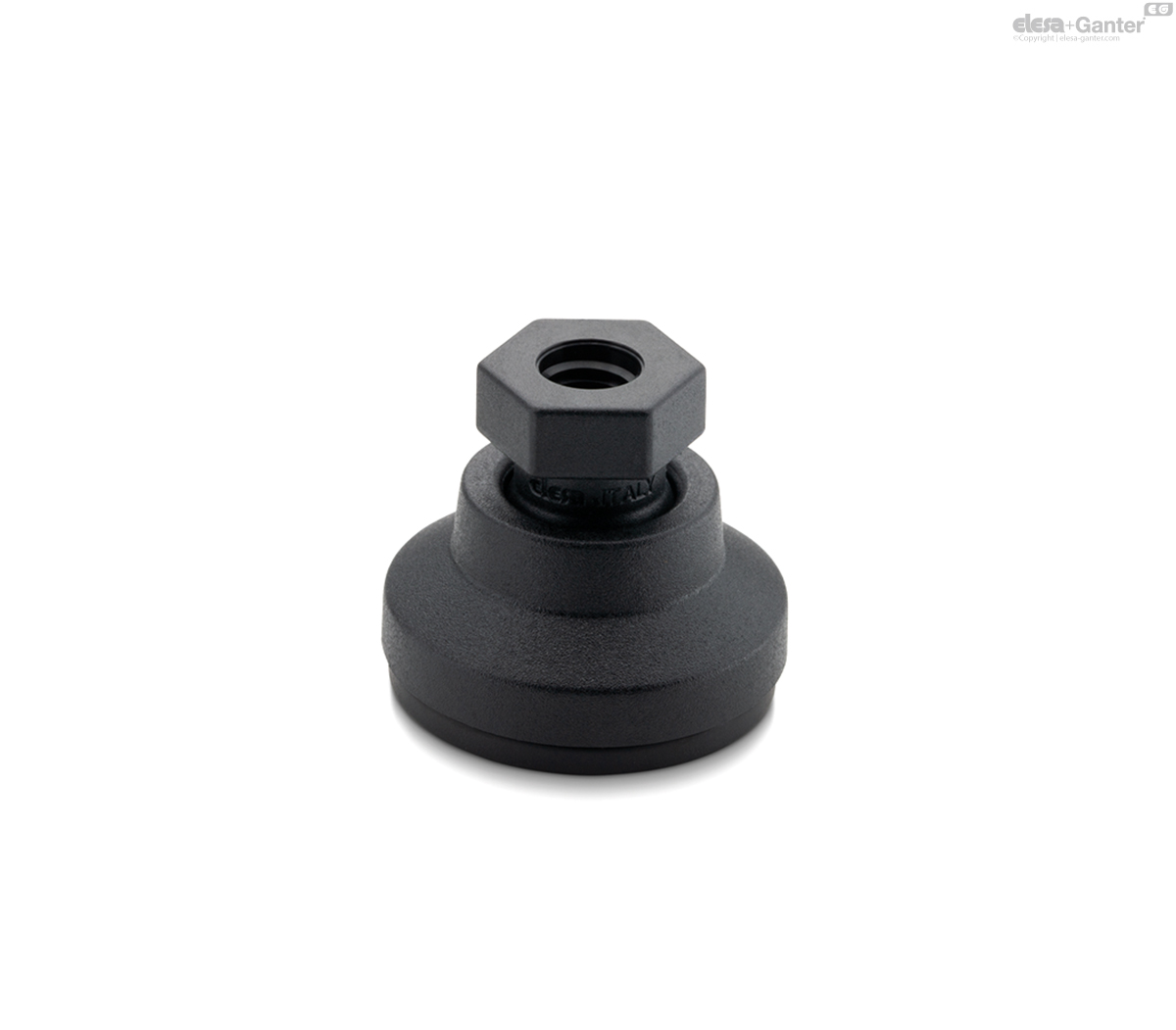

With no-slip disk
LS.A-AS+SJF
With no-slip disk

LS.A+SJF

Reset
Catalogue

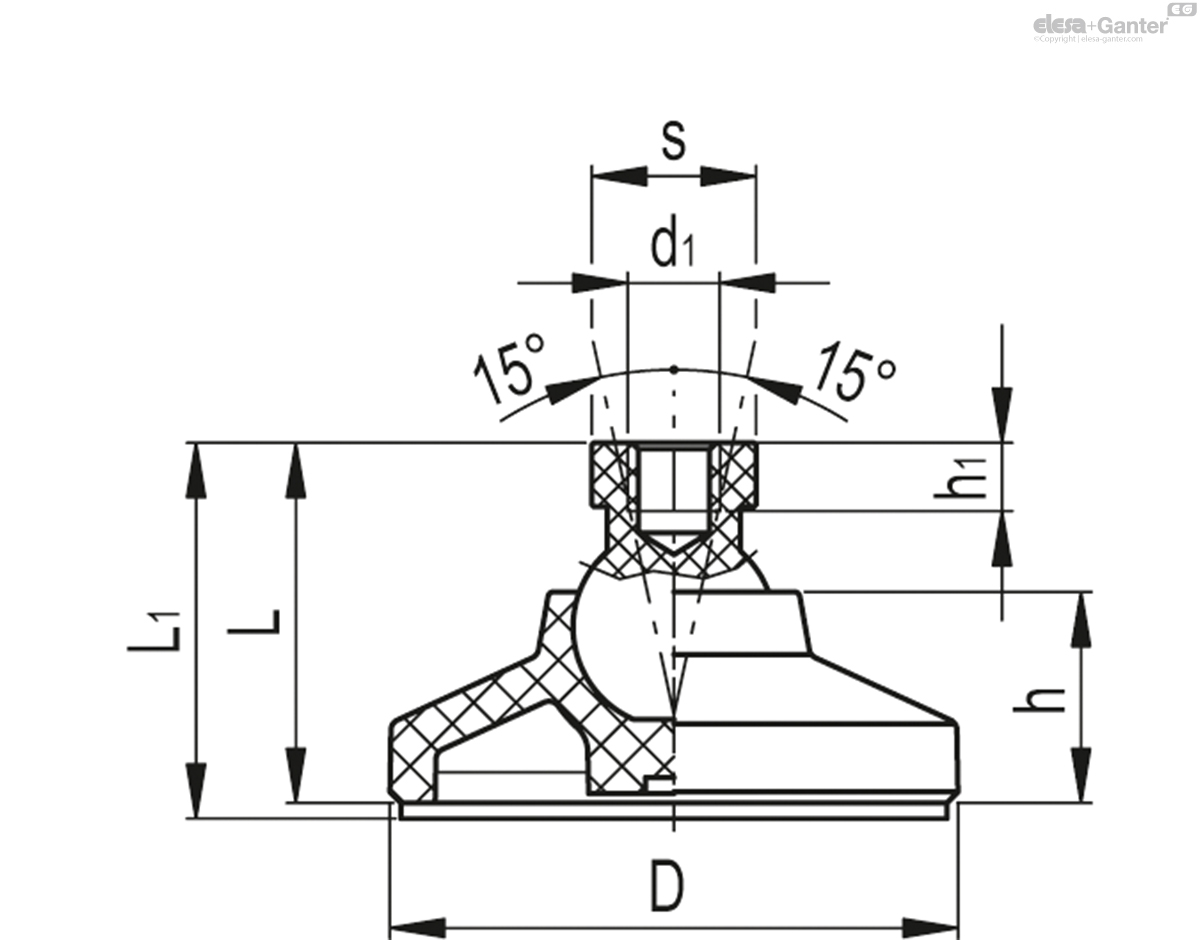

Description
D
d1
L
h
h1
s
Articulation
Ø
Maximum tightening torque for the screw
[Nm]
Max. limit static load*
[N]
300176
LS.A-25-14+SJF-M6
25
M6
25
12
10
16
14
4
3100
11
300177
LS.A-25-14+SJF-M8
25
M8
25
12
10
16
14
6
3700
11
300181
LS.A-32-14+SJF-M6
32
M6
26
15
10
16
14
4
5000
15
300182
LS.A-32-14+SJF-M8
32
M8
26
15
10
16
14
6
6000
15
300186
LS.A-40-14+SJF-M6
40
M6
25.5
17
10
16
14
4
5600
25
300187
LS.A-40-14+SJF-M8
40
M8
25.5
17
10
16
14
6
6800
25
300191
LS.A-50-14+SJF-M6
50
M6
28
19
10
16
14
4
4600
35
300192
LS.A-50-14+SJF-M8
50
M8
28
19
10
16
14
6
5600
35
300196
LS.A-60-14+SJF-M6
60
M6
35
24
10
16
14
4
5800
45
300197
LS.A-60-14+SJF-M8
60
M8
35
24
10
16
14
6
6900
45
300198
LS.A-60-24+SJF-M10
60
M10
44
24
16
24
24
10
10500
50
300199
LS.A-60-24+SJF-M12
60
M12
44
24
16
24
24
12
10700
50
* The max static load is the value above which the load applied to the element may cause some plastic material breakage, in particular conditions of use. Obviously, a factor that takes into consideration the importance and the safety level of the specifi
  • Icons/__logo__ELE_OD__.png

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Ball joint

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour.

Standard executions

  • LS.A+SJF: without no-slip disk.
  • LS.A-AS+SJF: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Features and applications

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

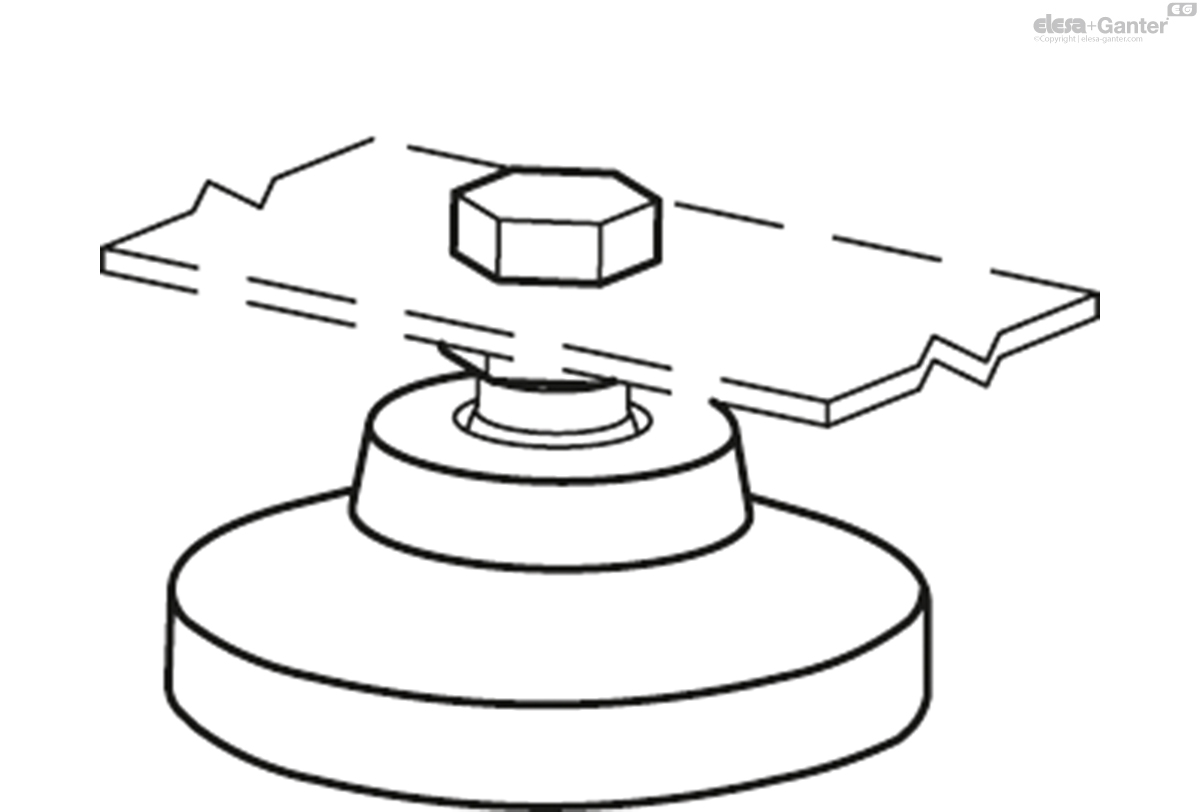

Used for direct fixing using standard screws, without the need for a threaded stem.



Another standard execution

SJF: ball joint.
