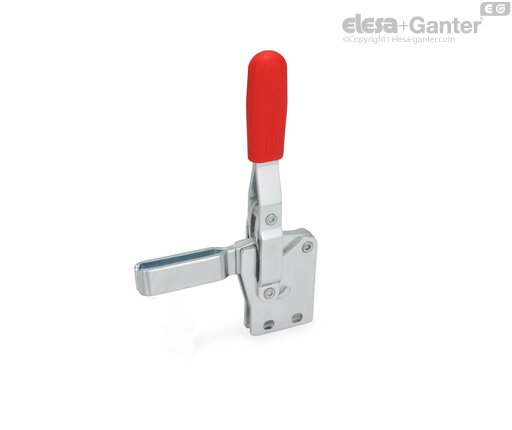

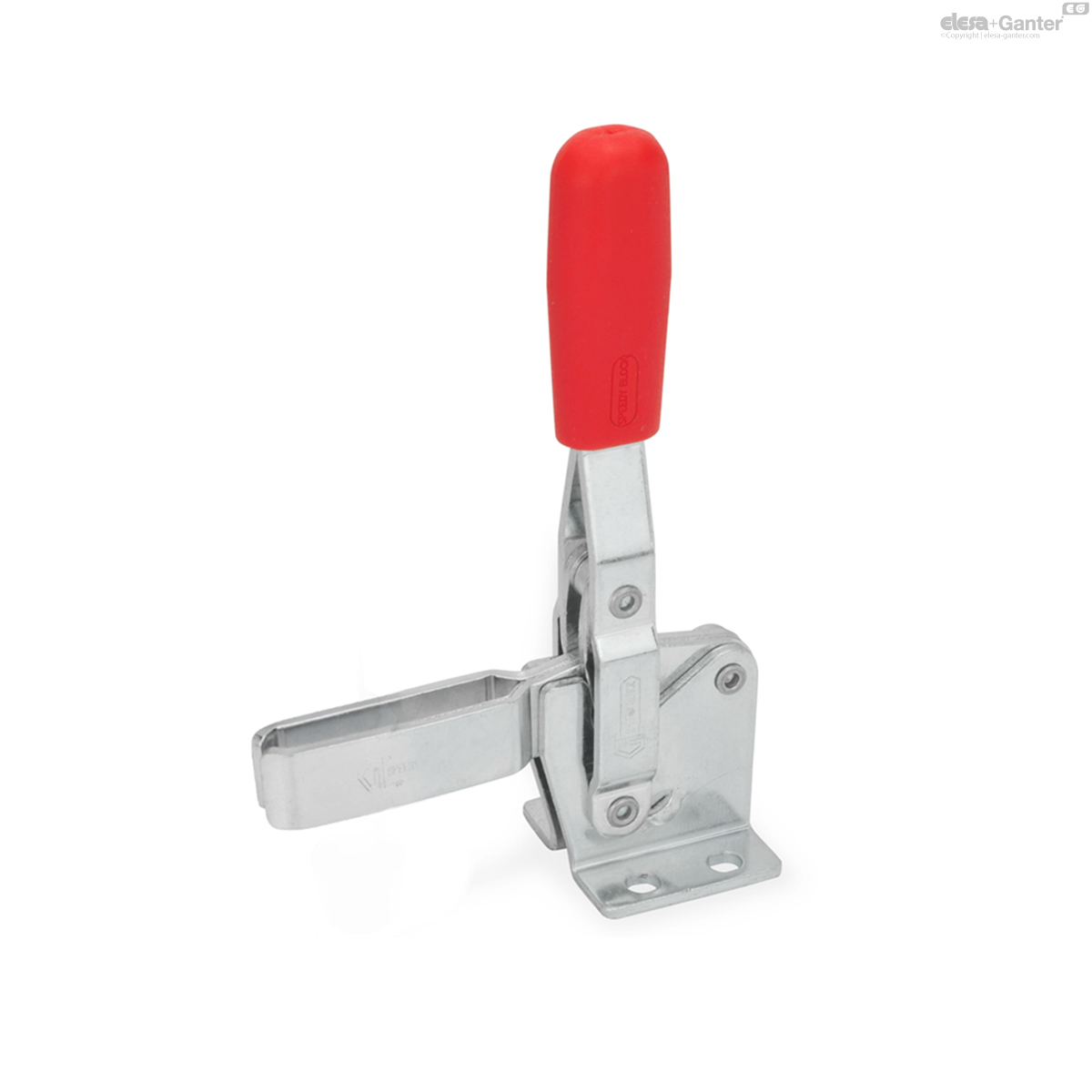

GN 810.1Verticale snelspanners

Staal

Staal/roestvrij staal, met verticale montagebasis

Technical datasheet

GN 810.1

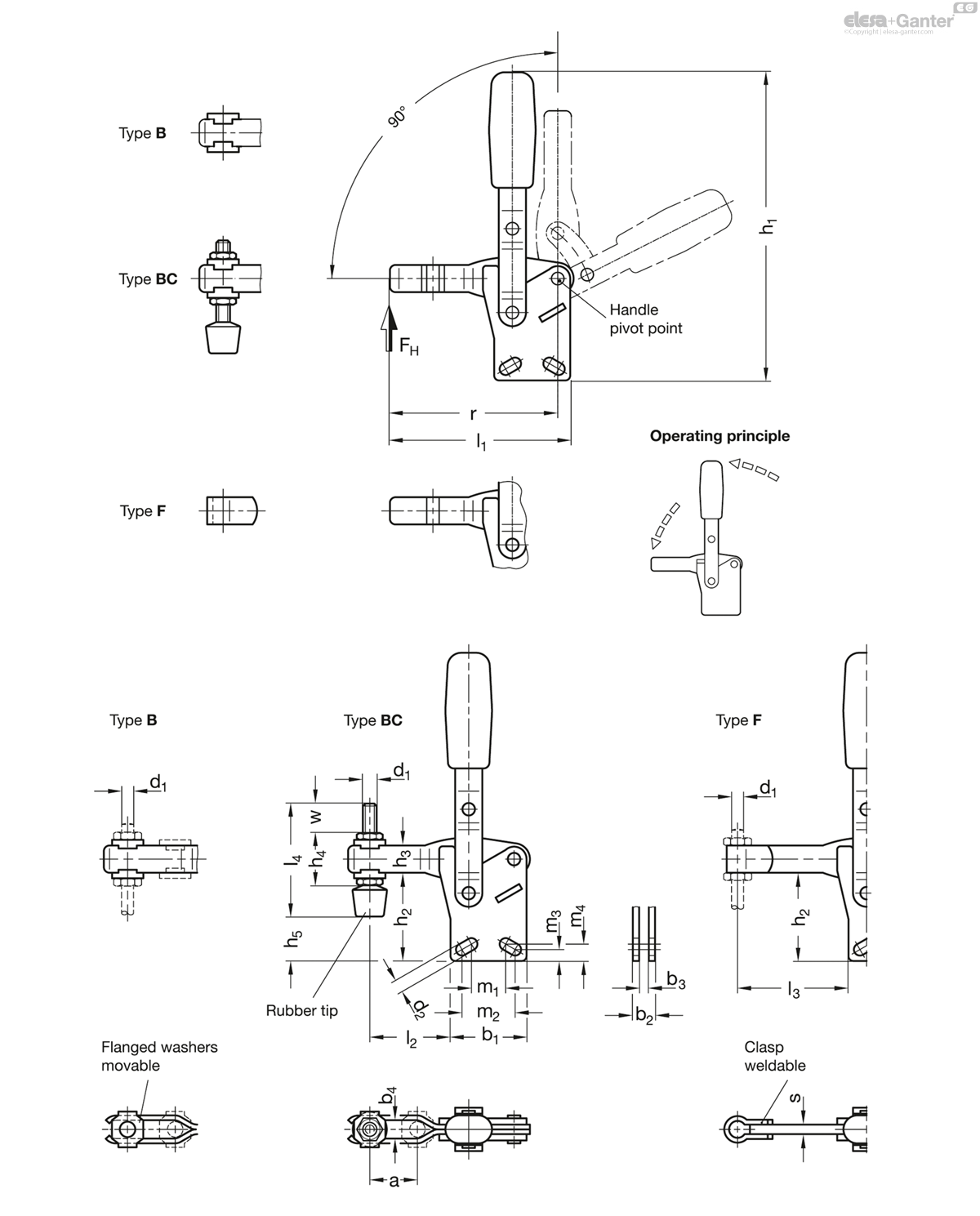

Code	Size	F_H in N	a ≈	b₁	b₂	b₃	b₄	d₁	d₂ ≈	h₁ ≈	h₂	h₃
GN 810.1-75-B	75	750	20	29	8	4	5.2	M 5	4.5	109	32	11
GN 810.1-130-B	130	1050	28	35	10	5	6.2	M 6	5.5	156	41.5	16
GN 810.1-230-B	230	2000	40	43	12	6	8.5	M 8	6.5	183	48	18
GN 810.1-330-B	330	2400	43	50	14	7	10.5	M 10	8.5	218	66	22
GN 810.1-430-B	430	2800	64	58	18	10	12.5	M 12	8.5	268	77.5	26
GN 810.1-530-B	530	4500	90	77	18	10	12.5	M 12	12.5	337	117.5	32
GN 810.1-75-BC	75	750	20	29	8	4	5.2	M 5	4.5	109	32	11
GN 810.1-130-BC	130	1050	28	35	10	5	6.2	M 6	5.5	156	41.5	16
GN 810.1-230-BC	230	2000	40	43	12	6	8.5	M 8	6.5	183	48	18
GN 810.1-330-BC	330	2400	43	50	14	7	10.5	M 10	8.5	218	66	22
GN 810.1-430-BC	430	2800	64	58	18	10	12.5	M 12	8.5	268	77.5	26
GN 810.1-530-BC	530	4500	90	77	18	10	12.5	M 12	12.5	337	117.5	32
GN 810.1-75-F	75	750	-	29	8	4	-	M 5	4.5	109	32	11
GN 810.1-130-F	130	1050	-	35	10	5	-	M 6	5.5	156	41.5	16
GN 810.1-230-F	230	2000	-	43	12	6	-	M 8	6.5	183	48	18
GN 810.1-330-F	330	2400	-	50	14	7	-	M 10	8.5	218	66	22
GN 810.1-430-F	430	2800	-	58	18	10	-	M 12	8.5	268	77.5	26
GN 810.1-530-F	530	4500	-	77	18	10	-	M 12	12.5	337	117.5	32

Types

Type B: U-bar version, with two flanged washers

Type BC: U-bar version, with two flanged washers and GN 708.1 spindle assembly

Type F: Solid bar version, with clasp

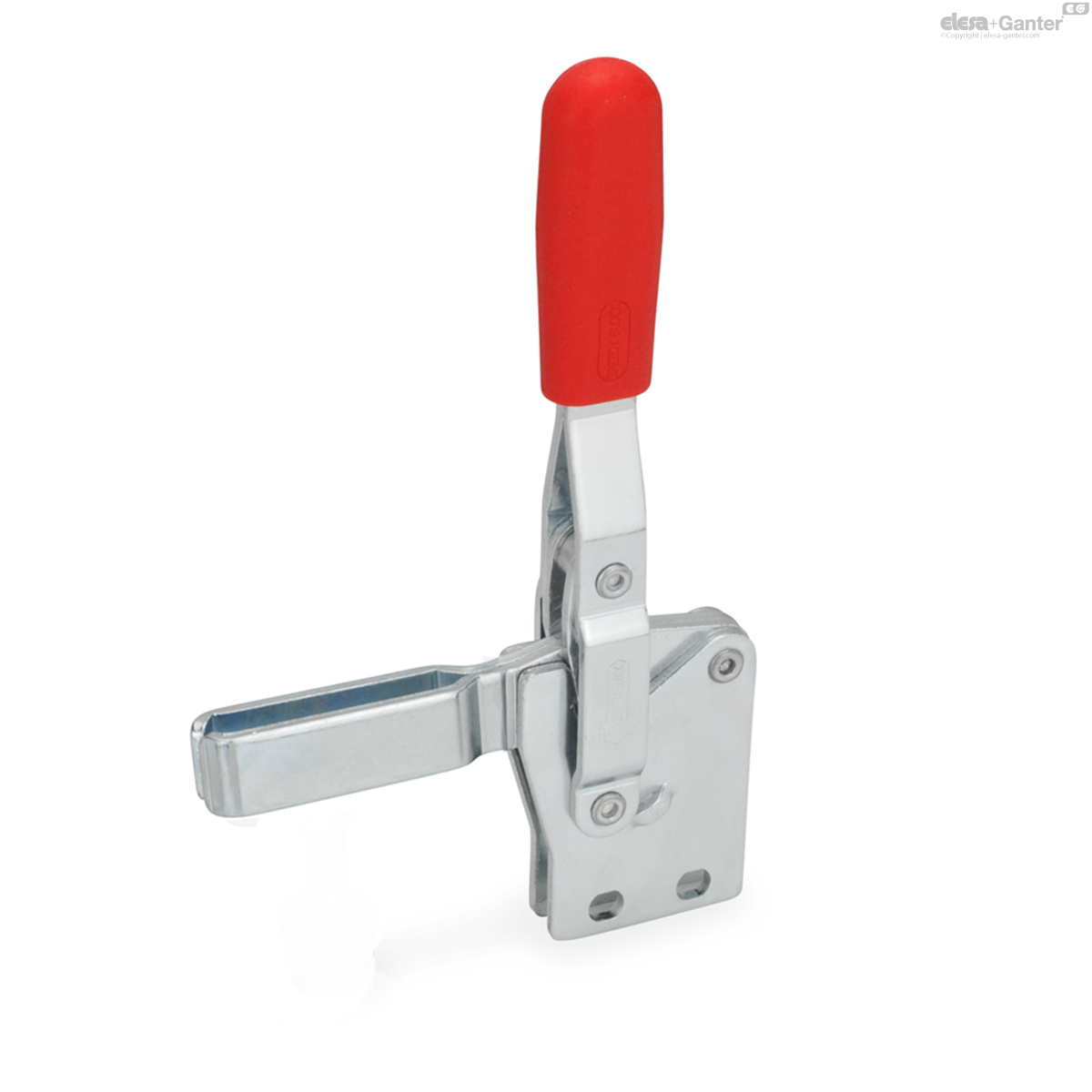

Version in Steel

Case-hardened Steel C10, zinc plated, blue passivated

Bearing pins tempered

Bearing rivets (for size 230 and up), case-hardened

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

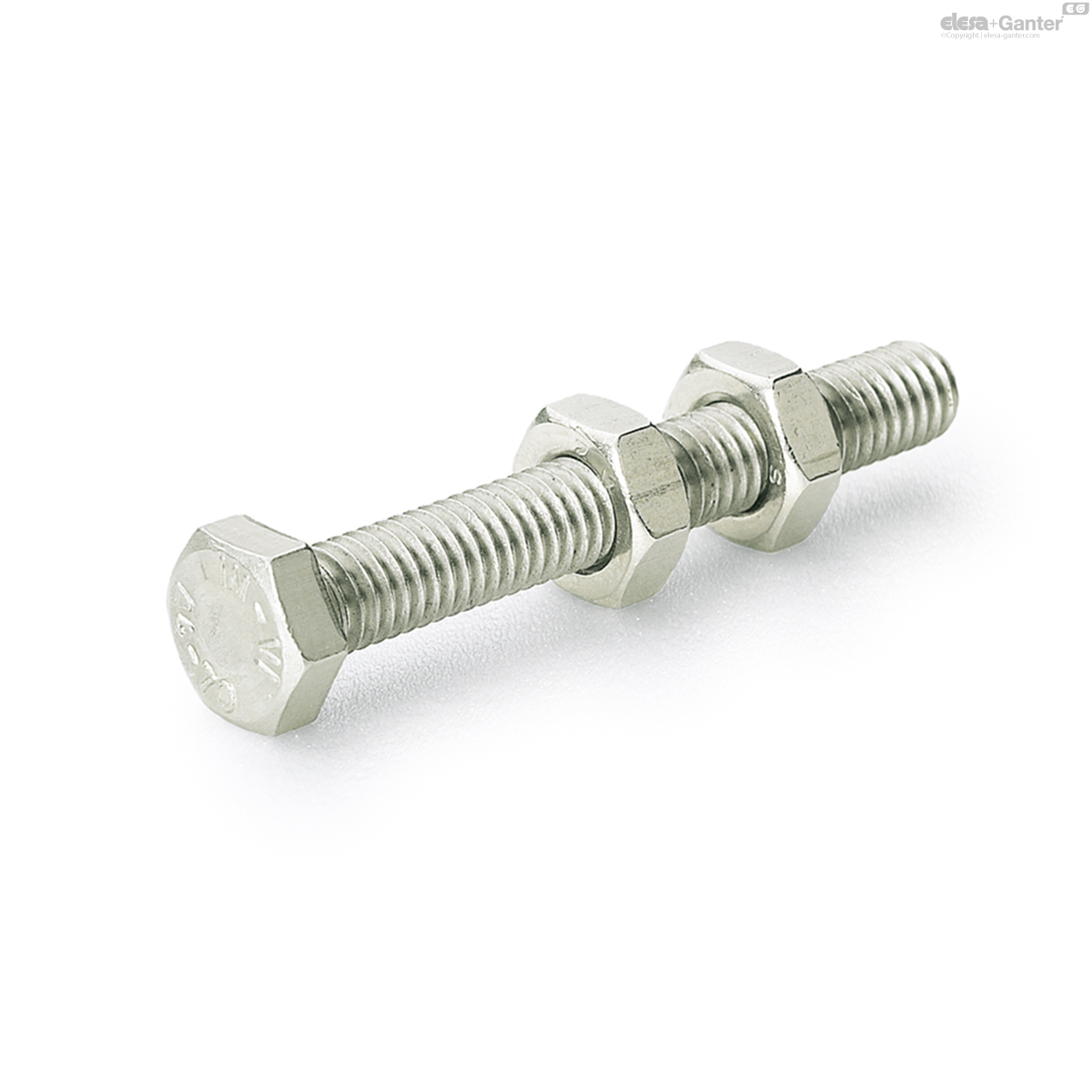

Spindle assembly GN 708.1, Type A-

Steel, zinc plated

Rubber tip 85 Shore A

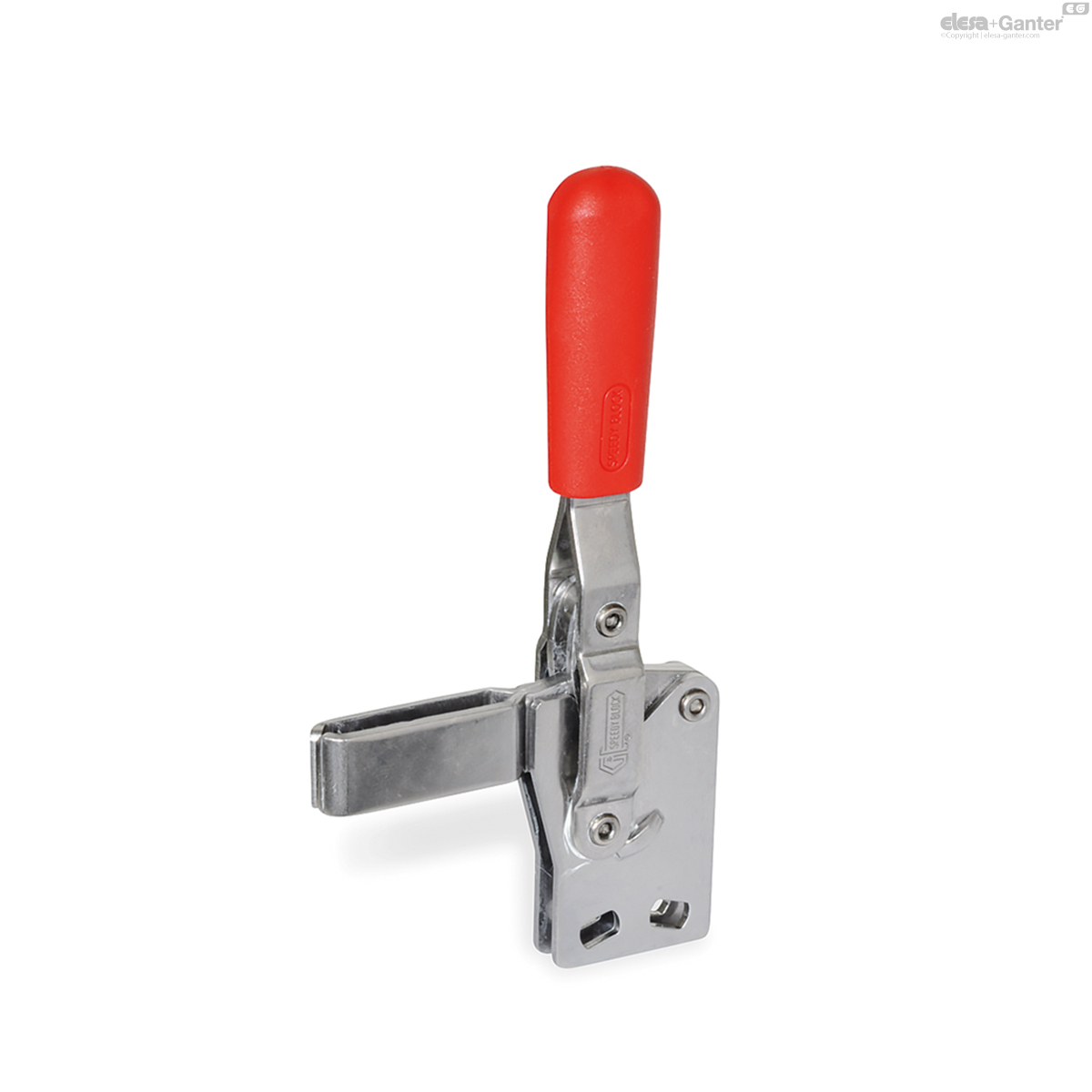

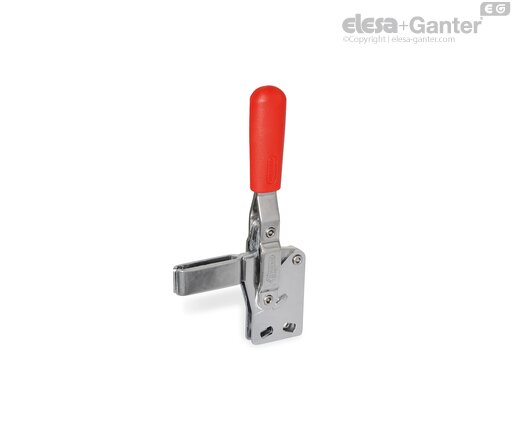

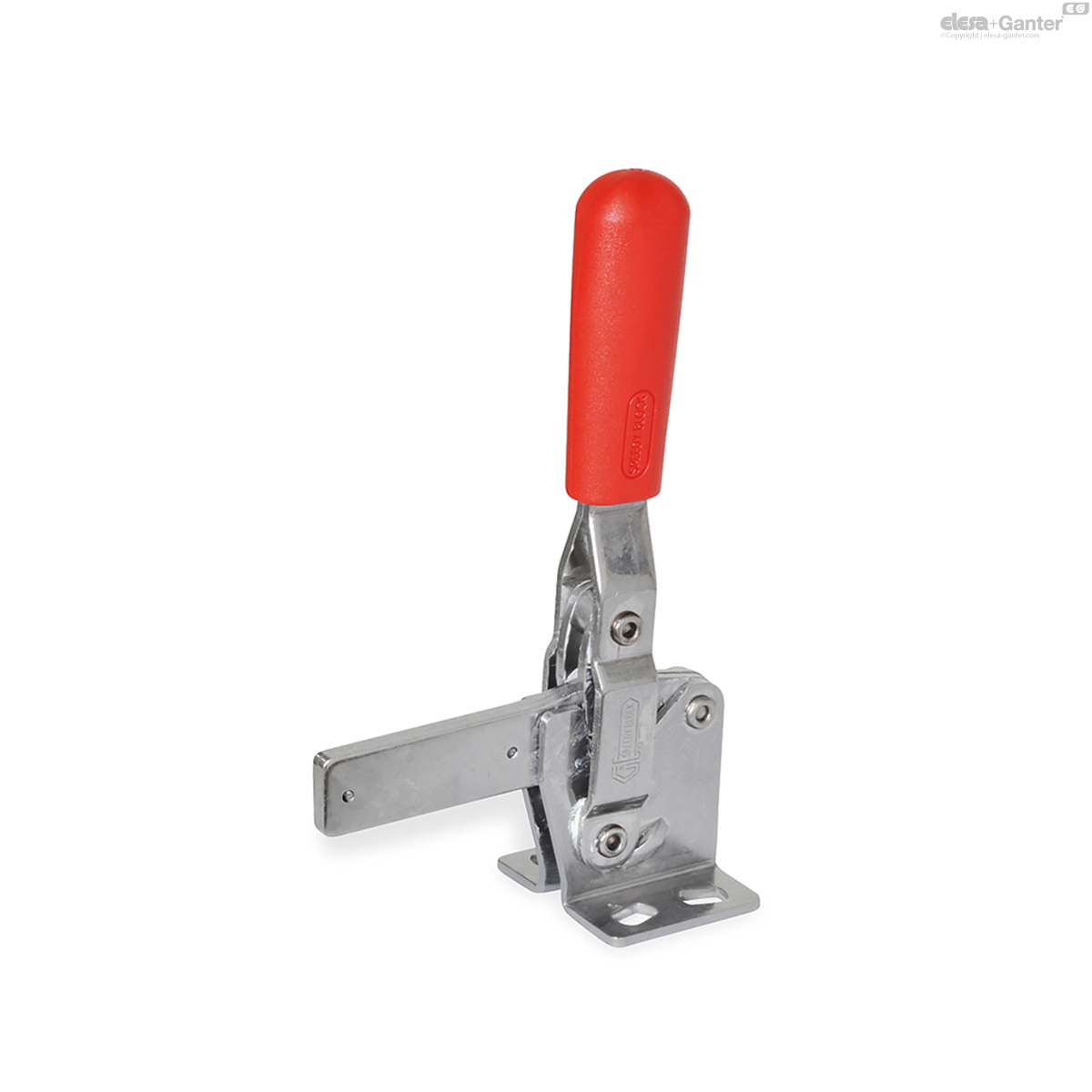

Version in Stainless Steel NI

Stainless Steel AISI 304

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

Spindle assembly GN 708.1, Type A

Stainless Steel AISI 304

Rubber tip 85 Shore A

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Vertical acting toggle clamps in the U-bar version with two flanged washers (Type B) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type BC.

Type F version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 clamp mounts to hold the work piece in place.
