Technical datasheet
CWN-pVleugelmoeren
Verzinkt stalen draadstang
Technopolymeer
CWN-p
|

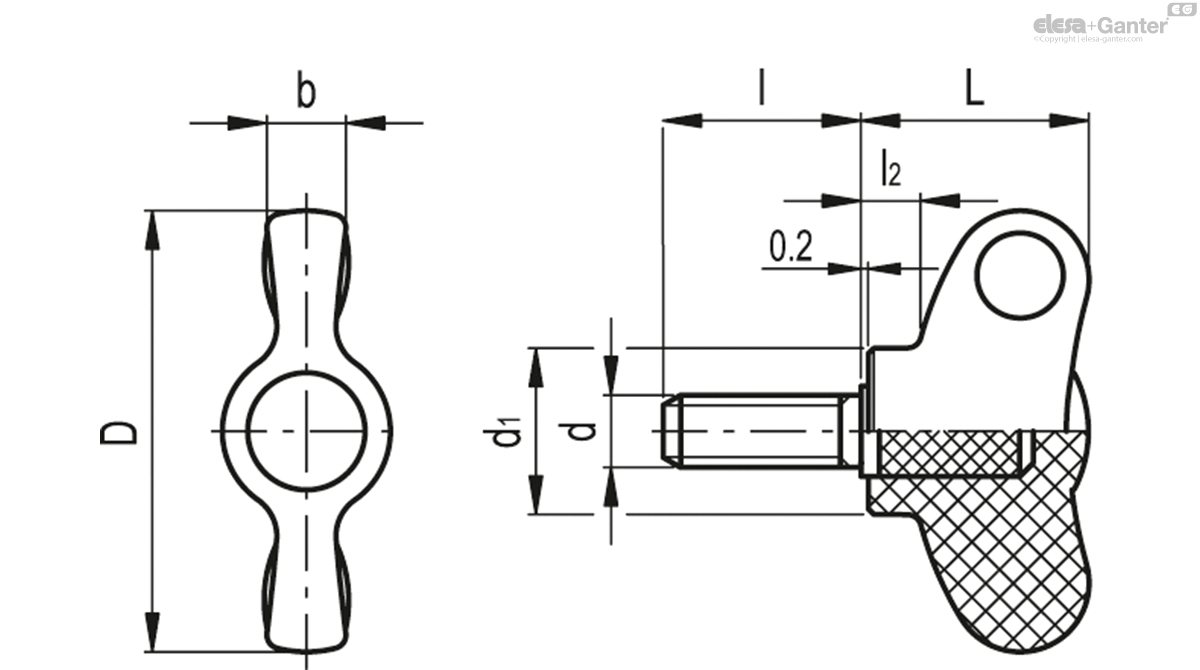

Code
|
Omschrijving
|
D
|
d6g
|
L
|
d1
|
l
|
l2
|
b
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|
|
CWN.32 p-M4x10
|
32
|
M4
|
16.5
|
12
|
10
|
3.5
|
6
|
8
| ||
|
CWN.32 p-M4x16
|
32
|
M4
|
16.5
|
12
|
16
|
3.5
|
6
|
7
| ||
|
CWN.32 p-M5x10
|
32
|
M5
|
16.5
|
12
|
10
|
3.5
|
6
|
8
| ||
|
CWN.32 p-M5x16
|
32
|
M5
|
16.5
|
12
|
16
|
3.5
|
6
|
8
| ||
|
CWN.32 p-M5x20
|
32
|
M5
|
16.5
|
12
|
20
|
3.5
|
6
|
8
| ||
|
CWN.32 p-M6x10
|
32
|
M6
|
16.5
|
12
|
10
|
3.5
|
6
|
8
| ||
|
CWN.32 p-M6x16
|
32
|
M6
|
16.5
|
12
|
16
|
3.5
|
6
|
9
| ||
|
CWN.32 p-M6x20
|
32
|
M6
|
16.5
|
12
|
20
|
3.5
|
6
|
10
| ||
|
CWN.32 p-M6x25
|
32
|
M6
|
16.5
|
12
|
25
|
3.5
|
6
|
11
| ||
|
CWN.32 p-M6x30
|
32
|
M6
|
16.5
|
12
|
30
|
3.5
|
6
|
12
| ||
|
CWN.40 p-M6x16
|
40
|
M6
|
21
|
13.5
|
16
|
4.5
|
6.5
|
13
| ||
|
CWN.40 p-M8x16
|
40
|
M8
|
21
|
13.5
|
16
|
4.5
|
6.5
|
17
| ||
|
CWN.40 p-M8x20
|
40
|
M8
|
21
|
13.5
|
20
|
4.5
|
6.5
|
18
| ||
|
CWN.40 p-M8x25
|
40
|
M8
|
21
|
13.5
|
25
|
4.5
|
6.5
|
20
| ||
|
CWN.40 p-M8x30
|
40
|
M8
|
21
|
13.5
|
30
|
4.5
|
6.5
|
21
|
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions

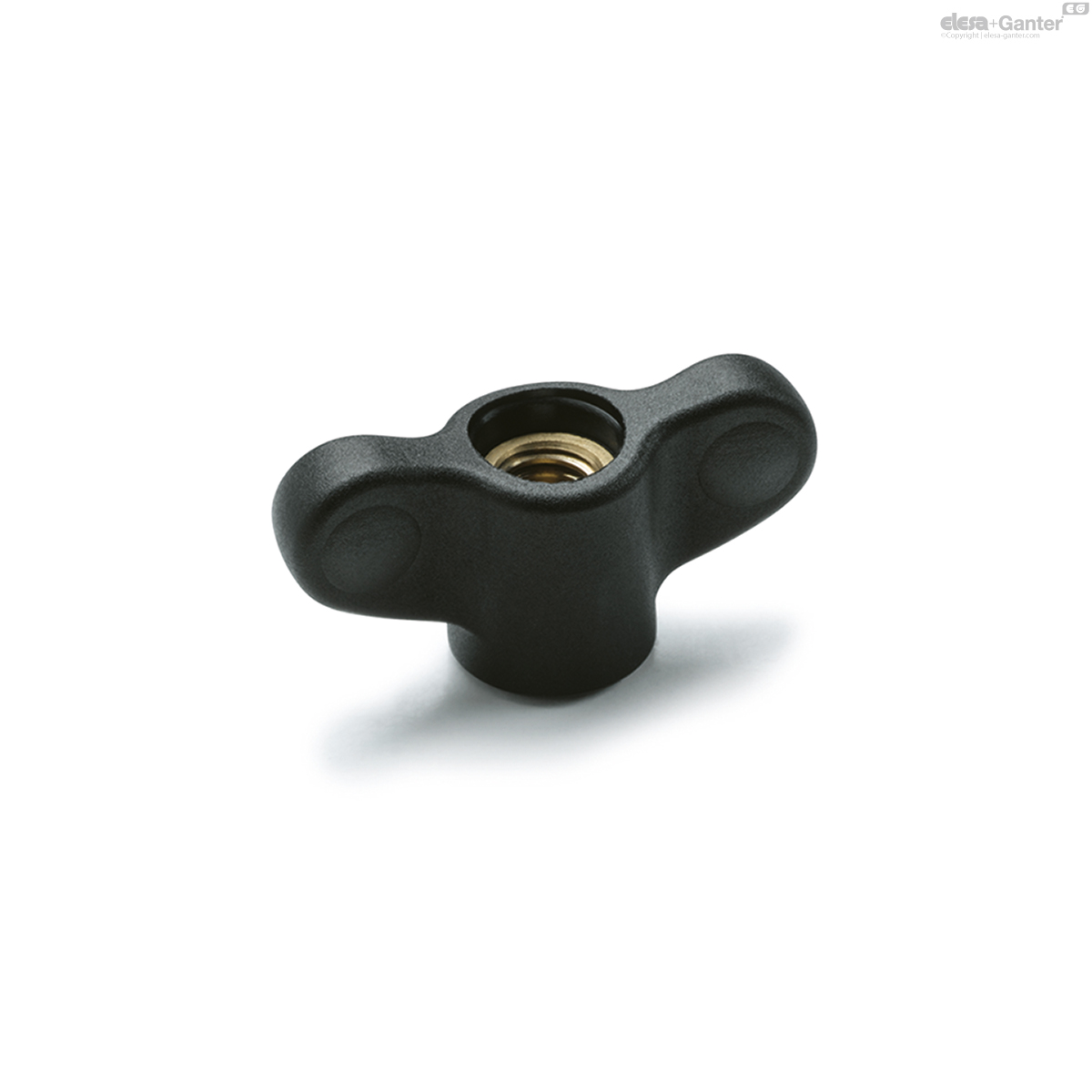

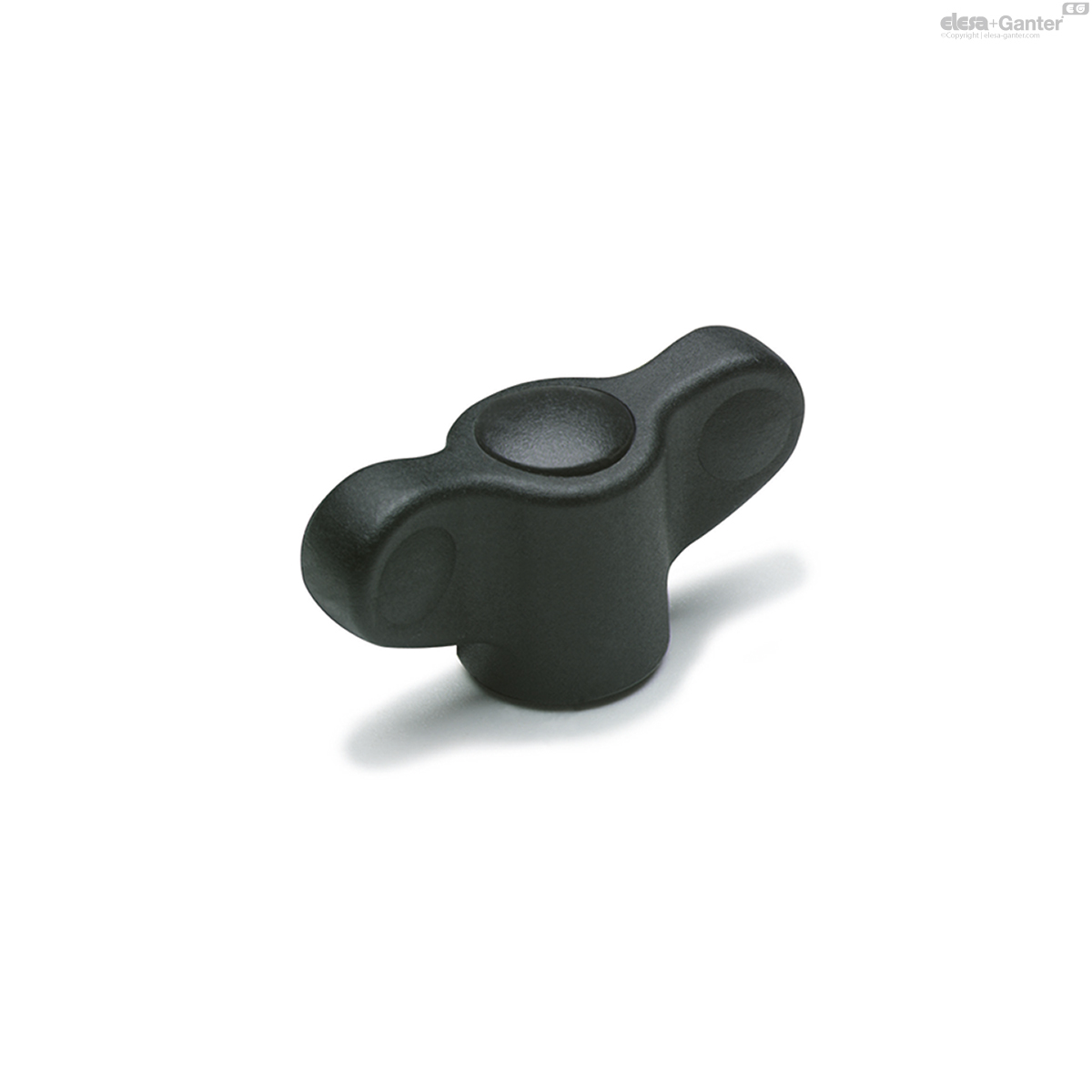

- CWN-B: brass boss, threaded blind hole.
- CWN-FP: brass boss, threaded pass-through hole.

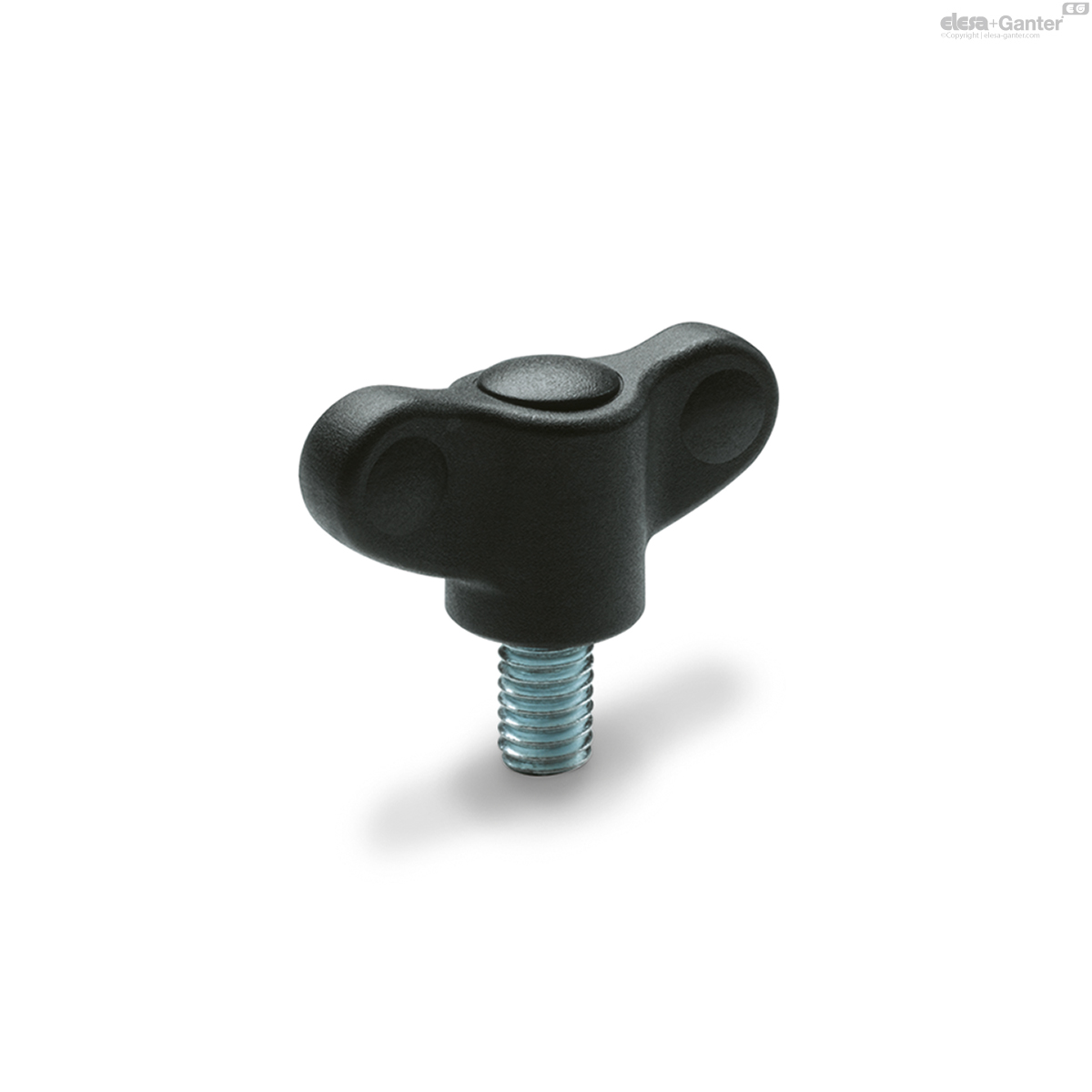

- CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).
Ergonomy and design
The slightly convex marks on the wings offer a point where the fingers can be positioned.
