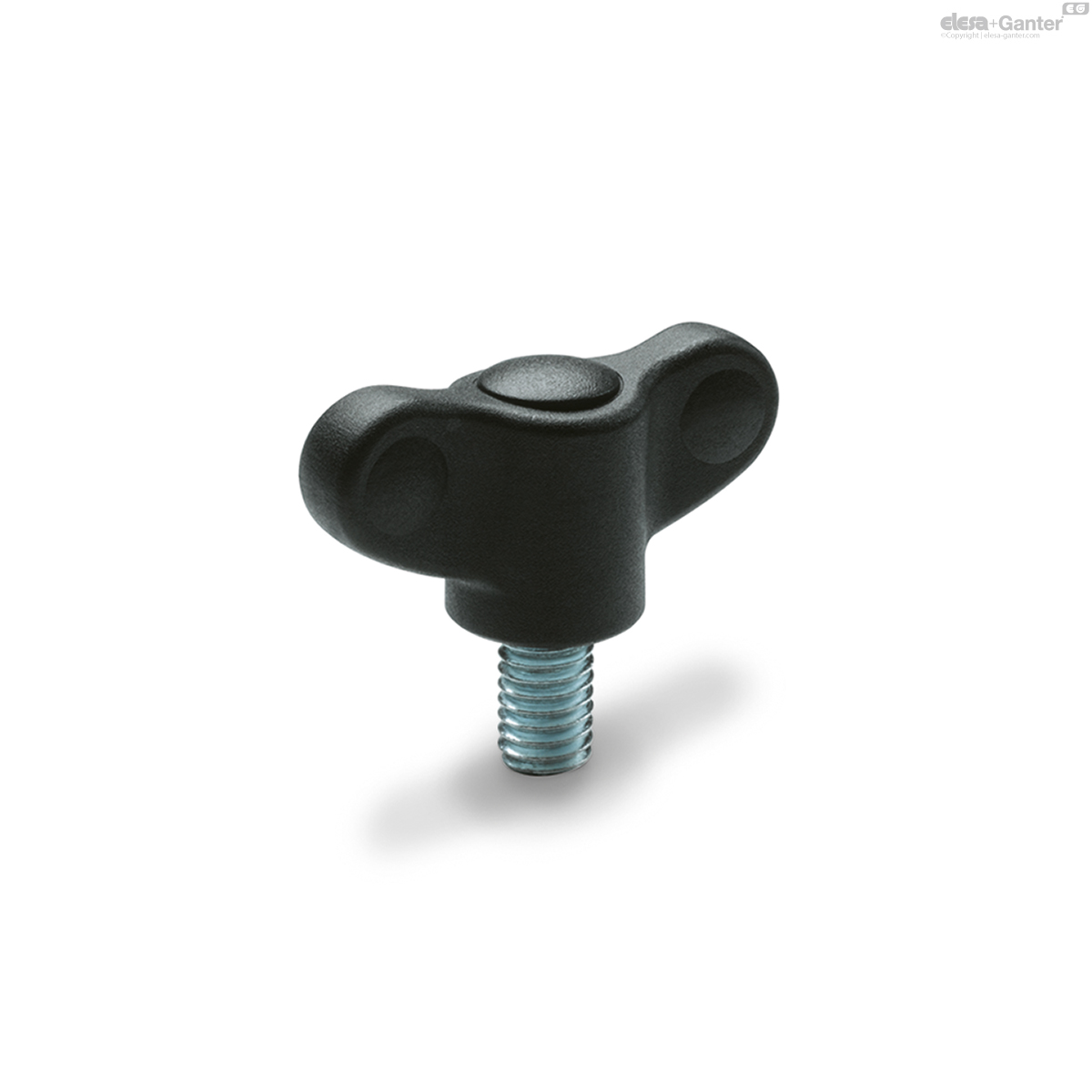

CWN.32 p-M4x10 CWN-p Verzinkt stalen draadstang

CWN.32 p-M4x10

CWN-p Verzinkt stalen draadstang

Technopolymeer
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png

Lt: 1-2 weken Alle maten en varianten van CWN.

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
8607
D
32
d6g
M4
L
16.5
d1
12
l
10
l2
3.5
b
6
8
CWN.32 p-M4x10 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CWN-B: brass boss, threaded blind hole.
  • CWN-FP: brass boss, threaded pass-through hole.
  • CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Ergonomy and design

The slightly convex marks on the wings offer a point where the fingers can be positioned.
