CWN-pWing knobs

Zinc-plated steel threaded stud

Technopolymer

  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__g13030__.png
Zinc-plated steel threaded stud
Zinc-plated steel threaded stud
Zinc-plated steel threaded stud

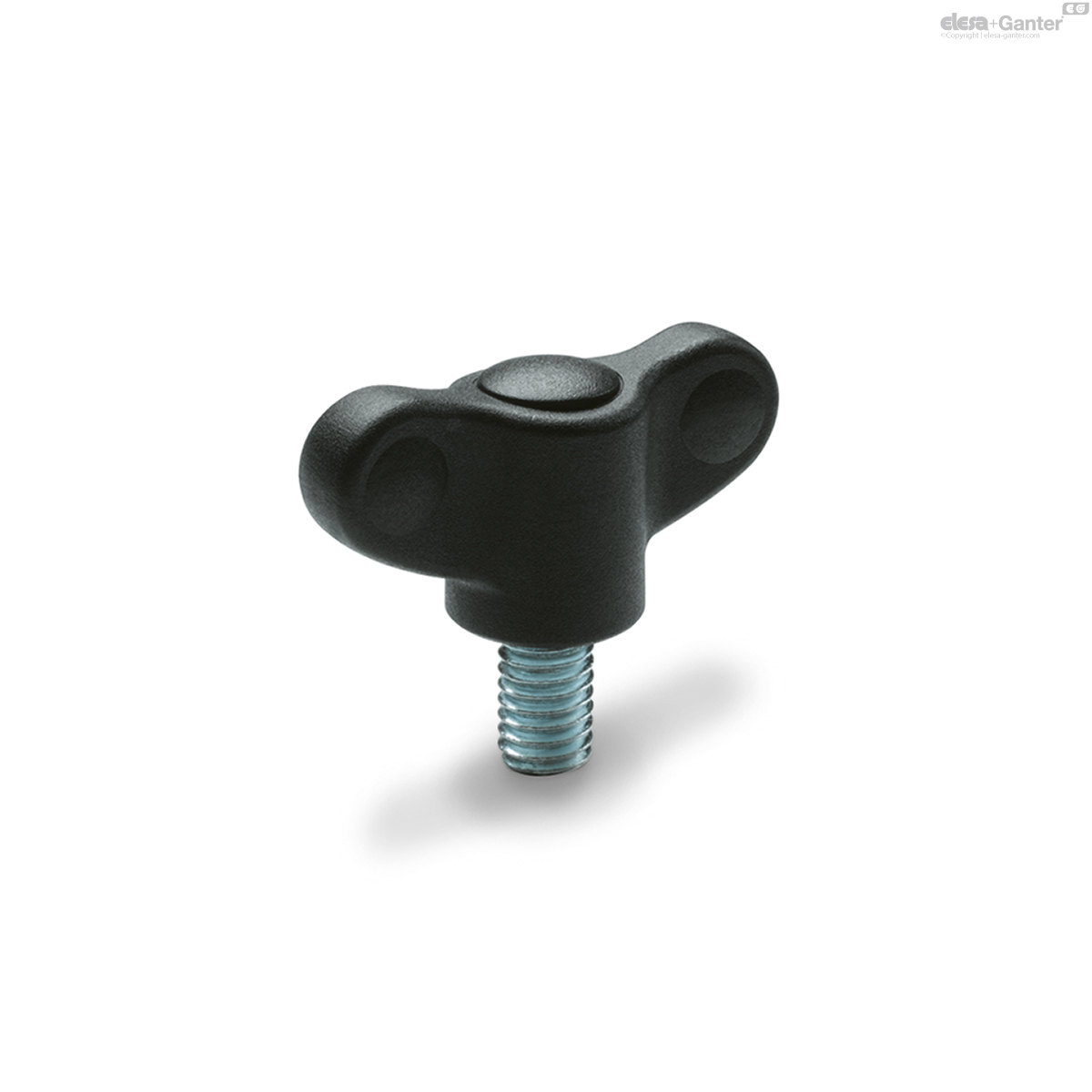

CWN-p
Zinc-plated steel threaded stud

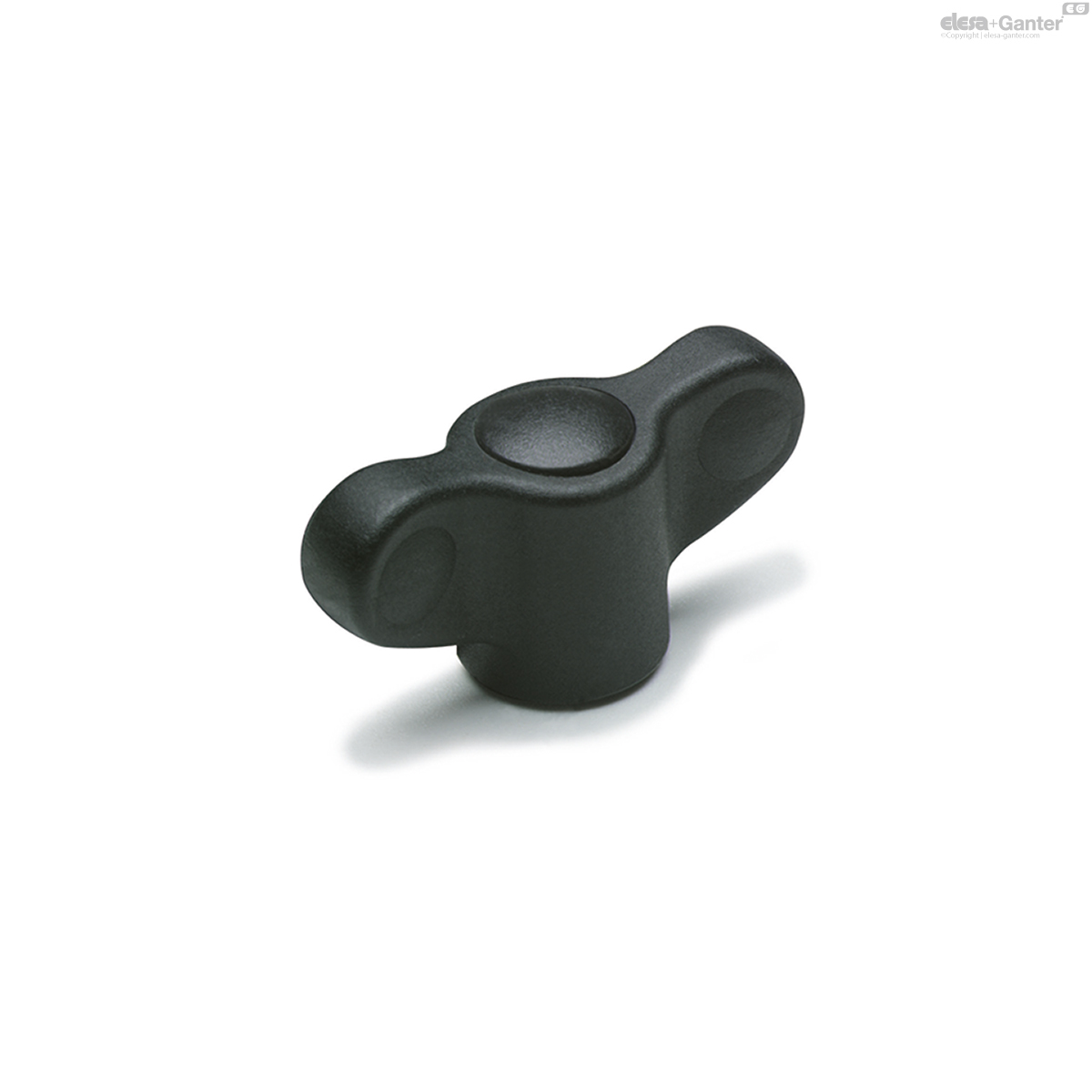

Brass boss, threaded blind hole
CWN-B
Brass boss, threaded blind hole

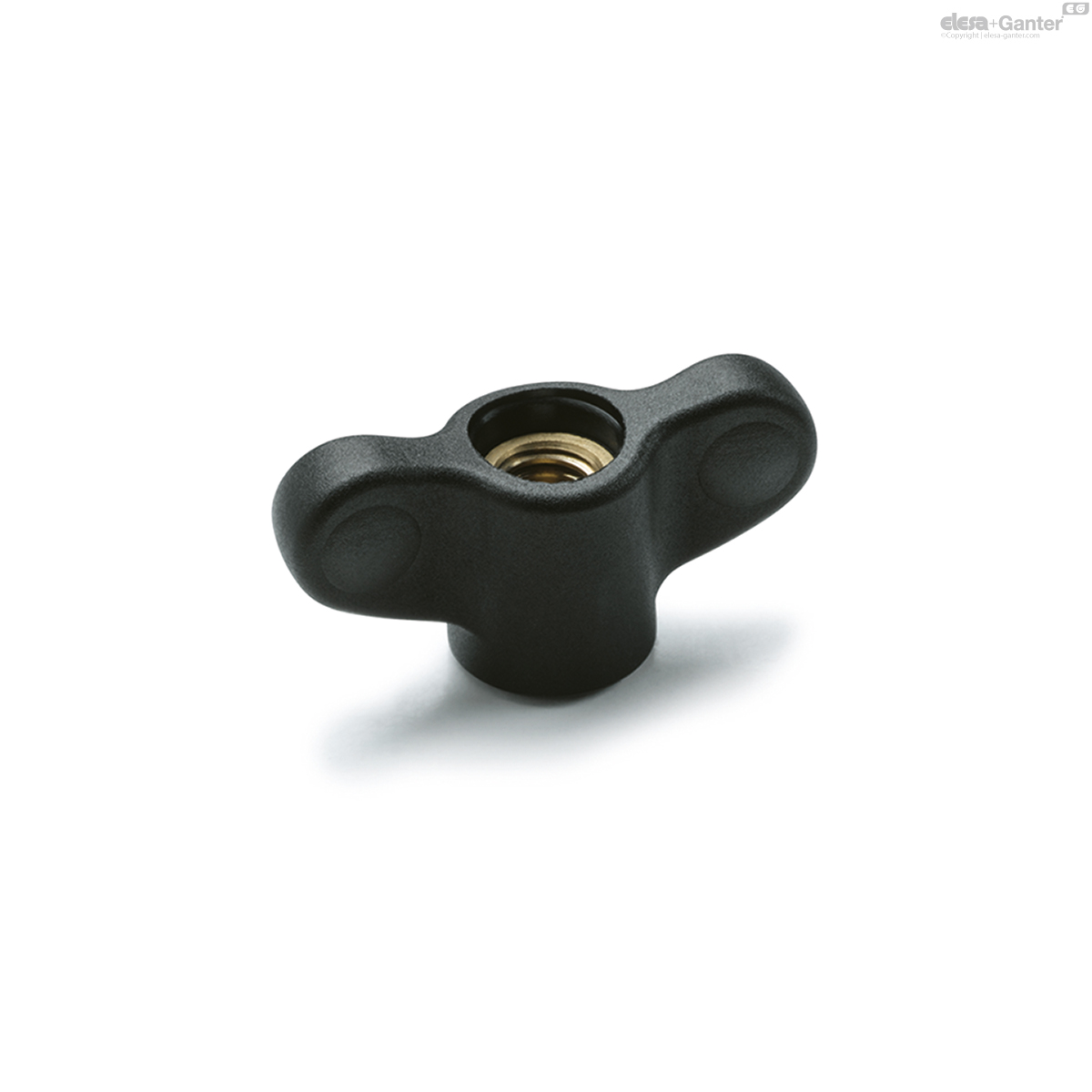

Brass boss, threaded pass-through hole
CWN-FP
Brass boss, threaded pass-through hole

CWN-p

Reset
Catalogue

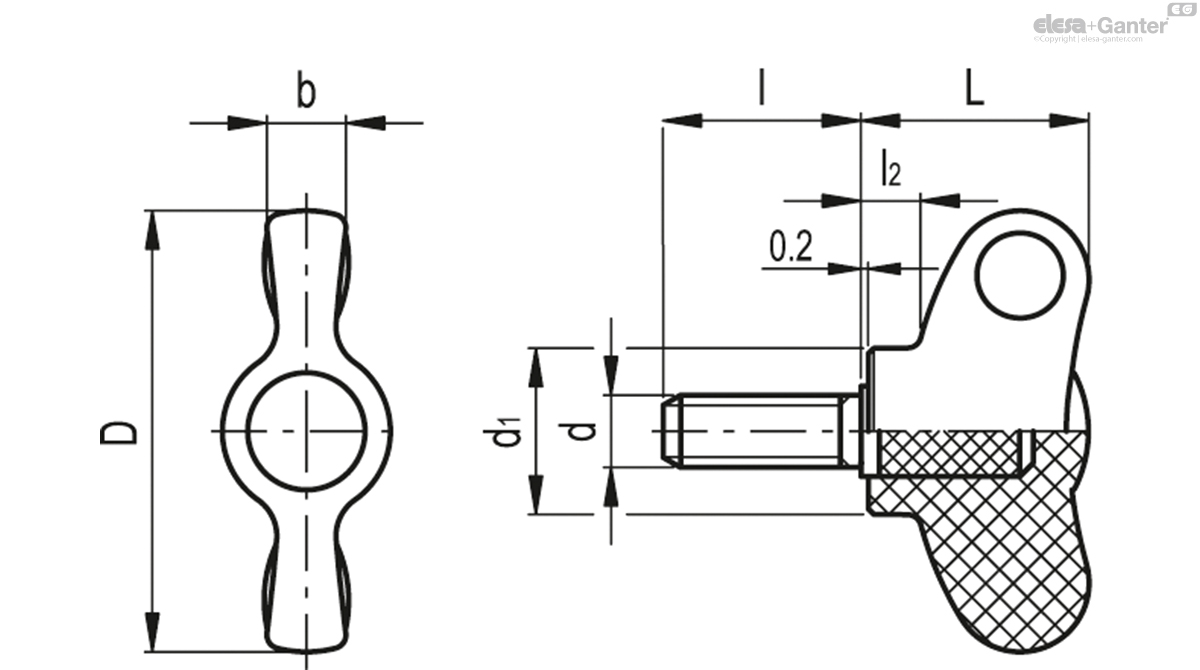

Description
D
d6g
L
d1
l
l2
b
8607
CWN.32 p-M4x10
32
M4
16.5
12
10
3.5
6
8
8608
CWN.32 p-M4x16
32
M4
16.5
12
16
3.5
6
7
8609
CWN.32 p-M5x10
32
M5
16.5
12
10
3.5
6
8
8610
CWN.32 p-M5x16
32
M5
16.5
12
16
3.5
6
8
8615
CWN.32 p-M5x20
32
M5
16.5
12
20
3.5
6
8
8611
CWN.32 p-M6x10
32
M6
16.5
12
10
3.5
6
8
8612
CWN.32 p-M6x16
32
M6
16.5
12
16
3.5
6
9
8613
CWN.32 p-M6x20
32
M6
16.5
12
20
3.5
6
10
8614
CWN.32 p-M6x25
32
M6
16.5
12
25
3.5
6
11
8616
CWN.32 p-M6x30
32
M6
16.5
12
30
3.5
6
12
8658
CWN.40 p-M6x16
40
M6
21
13.5
16
4.5
6.5
13
8662
CWN.40 p-M8x16
40
M8
21
13.5
16
4.5
6.5
17
8663
CWN.40 p-M8x20
40
M8
21
13.5
20
4.5
6.5
18
8664
CWN.40 p-M8x25
40
M8
21
13.5
25
4.5
6.5
20
8665
CWN.40 p-M8x30
40
M8
21
13.5
30
4.5
6.5
21
  • Icons/__logo__ELE_OD__.png

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CWN-B: brass boss, threaded blind hole.
  • CWN-FP: brass boss, threaded pass-through hole.
  • CWN-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

Ergonomy and design

The slightly convex marks on the wings offer a point where the fingers can be positioned.

Related products
Brass boss, threaded blind hole

CT.476-B

Wing knobs Technopolymer

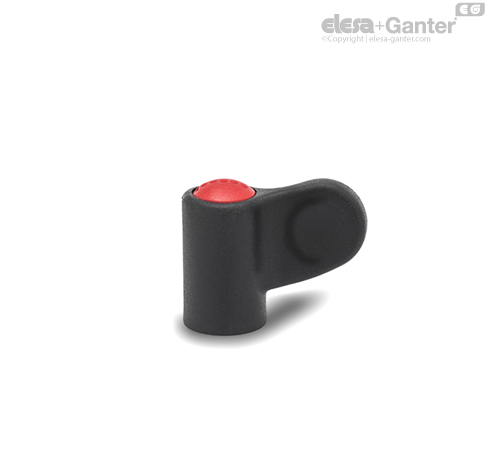

Single wing nuts
