Technical datasheet
CGT-HR-PGVerloopstukken
PG draad
voor CGT-kabelwartels, met metrische en PG-schroefdraad, van technopolymeer
CGT-HR-PG
|

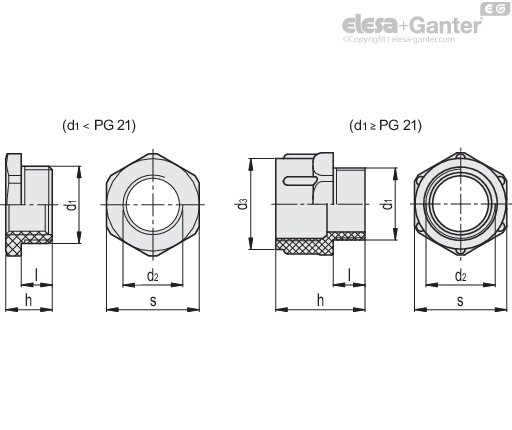

Code
|
Omschrijving
|
d1
|
d2
|
h
|
l
|
s
|
|
|
|---|---|---|---|---|---|---|---|---|
|
CGT-HR-PG9-PG7-C3
|
PG 9
|
PG 7
|
20.5
|
8
|
19
|
5
| ||
|
CGT-HR-PG11-PG9-C3
|
PG 11
|
PG 9
|
22.5
|
8
|
22
|
6
| ||
|
CGT-HR-PG13,5-PG11-C3
|
PG 13.5
|
PG 11
|
24
|
9
|
24
|
6
| ||
|
CGT-HR-PG16-PG13,5-C3
|
PG 16
|
PG 13.5
|
28
|
10
|
27
|
7
| ||
|
CGT-HR-PG21-PG16-C3
|
PG 21
|
PG 16
|
16
|
11
|
32
|
8
| ||
|
CGT-HR-PG29-PG21-C3
|
PG 29
|
PG 21
|
17
|
11
|
40
|
14
| ||
|
CGT-HR-PG36-PG29-C3
|
PG 36
|
PG 29
|
24
|
18
|
50
|
14
| ||
|
CGT-HR-PG42-PG36-C3
|
PG 42
|
PG 36
|
24
|
18
|
55
|
19
| ||
|
CGT-HR-PG48-PG42-C3
|
PG 48
|
PG 42
|
23
|
17
|
60
|
19
|
Material

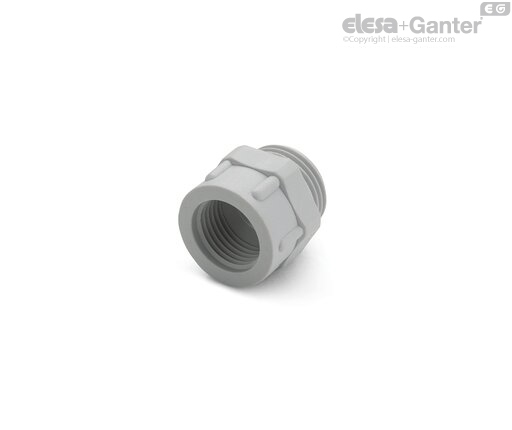

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7035 (C3) grey colour.
Standard executions
- CGT-HR: metric threadings.
- CGT-HR-PG: PG threadings.
Features and applications

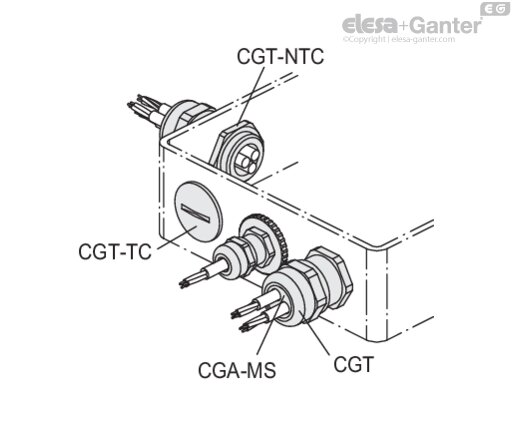

They are used to install a cable gland in a mounting hole on electrical equipment that does not match the thread size of the cable gland itself, ensuring mechanical protection and a secure seal. To secure the reducers, use the CGT-NTC mounting nut.
