Technical datasheet

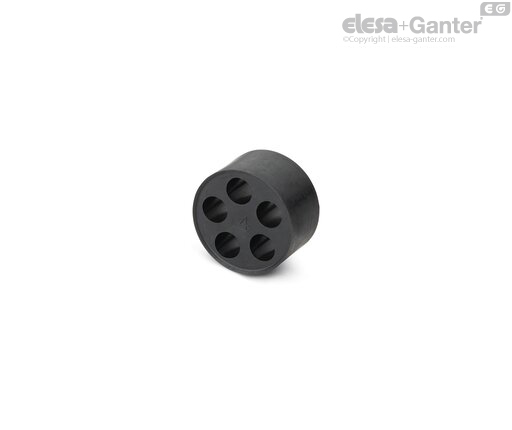

CGA-MSMeerdere afdichtingselementen
Meerdere afdichtingselementen
voor CGT- en CGM-kabelwartels, rubber
CGA-MS
|

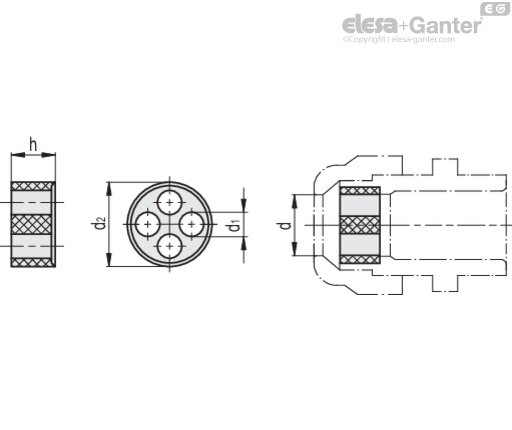

Code
|
Omschrijving
|
d
|
d1
|
d2
|
h
|
Number of holes
|
For cable glands
|
|
|
|---|---|---|---|---|---|---|---|---|---|
|
CGA-MS-11-3-2-TPE
|
8
|
3
|
10.6
|
7.5
|
2
|
CGT-8 / GN 62444-8
|
1
| ||
|
CGA-MS-11-2-3-TPE
|
8
|
2
|
10.6
|
7.5
|
3
|
CGT-8 / GN 62444-8
|
1
| ||
|
CGA-MS-11-2-4-TPE
|
8
|
2
|
10.6
|
7.5
|
4
|
CGT-8 / GN 62444-8
|
1
| ||
|
CGA-MS-11-3-4-TPE
|
8
|
3
|
10.6
|
7.5
|
4
|
CGT-8 / GN 62444-8
|
1
| ||
|
CGA-MS-13-4-2-TPE
|
10
|
4
|
13.3
|
8.5
|
2
|
CGT-10 / GN 62444-10
|
1
| ||
|
CGA-MS-13-5-2-TPE
|
10
|
5
|
13.3
|
8.5
|
2
|
CGT-10 / GN 62444-10
|
1
| ||
|
CGA-MS-13-4-3-TPE
|
10
|
4
|
13.3
|
8.5
|
3
|
CGT-10 / GN 62444-10
|
1
| ||
|
CGA-MS-13-5-3-TPE
|
10
|
5
|
13.3
|
8.5
|
3
|
CGT-10 / GN 62444-10
|
1
| ||
|
CGA-MS-15-5-2-TPE
|
12
|
5
|
15.3
|
8.5
|
2
|
CGT-12 / GN 62444-12
|
5
| ||
|
CGA-MS-15-6-2-TPE
|
12
|
6
|
15.3
|
8.5
|
2
|
CGT-12 / GN 62444-12
|
2
| ||
|
CGA-MS-15-4-3-TPE
|
12
|
4
|
15.3
|
8.5
|
3
|
CGT-12 / GN 62444-12
|
1
| ||
|
CGA-MS-15-5-3-TPE
|
12
|
5
|
15.3
|
8.5
|
3
|
CGT-12 / GN 62444-12
|
1
| ||
|
CGA-MS-17-4-2-TPE
|
14
|
4
|
17.4
|
9
|
2
|
CGT-14 / GN 62444-14
|
5
| ||
|
CGA-MS-17-6-2-TPE
|
14
|
6
|
17.4
|
9
|
2
|
CGT-14 / GN 62444-14
|
2
| ||
|
CGA-MS-17-4-3-TPE
|
14
|
4
|
17.4
|
9
|
3
|
CGT-14 / GN 62444-14
|
2
| ||
|
CGA-MS-17-6-3-TPE
|
14
|
6
|
17.4
|
9
|
3
|
CGT-14 / GN 62444-14
|
5
| ||
|
CGA-MS-17-5-4-TPE
|
14
|
5
|
17.4
|
9
|
4
|
CGT-14 / GN 62444-14
|
5
| ||
|
CGA-MS-17-6-4-TPE
|
14
|
6
|
17.4
|
9
|
4
|
CGT-14 / GN 62444-14
|
1
| ||
|
CGA-MS-17-4-5-TPE
|
14
|
4
|
17.4
|
9
|
5
|
CGT-14 / GN 62444-14
|
2
| ||
|
CGA-MS-20-6-2-TPE
|
17
|
6
|
19.8
|
9.3
|
2
|
CGT-17 / GN 62444-17
|
3
| ||
|
CGA-MS-20-8-2-TPE
|
17
|
8
|
19.8
|
9.3
|
2
|
CGT-17 / GN 62444-17
|
2
| ||
|
CGA-MS-20-6-3-TPE
|
17
|
6
|
19.8
|
9.3
|
3
|
CGT-17 / GN 62444-17
|
2
| ||
|
CGA-MS-22-7-2-TPE
|
18
|
7
|
22.2
|
11
|
2
|
CGT-18 / GN 62444-18
|
5
| ||
|
CGA-MS-22-8-2-TPE
|
18
|
8
|
22.2
|
11
|
2
|
CGT-18 / GN 62444-18
|
5
| ||
|
CGA-MS-22-9-2-TPE
|
18
|
9
|
22.2
|
11
|
2
|
CGT-18 / GN 62444-18
|
3
| ||
|
CGA-MS-22-7-3-TPE
|
18
|
7
|
22.2
|
11
|
3
|
CGT-18 / GN 62444-18
|
3
| ||
|
CGA-MS-22-8-3-TPE
|
18
|
8
|
22.2
|
11
|
3
|
CGT-18 / GN 62444-18
|
3
| ||
|
CGA-MS-22-5-4-TPE
|
18
|
5
|
22.2
|
11
|
4
|
CGT-18 / GN 62444-18
|
5
| ||
|
CGA-MS-22-7-4-TPE
|
18
|
7
|
22.2
|
11
|
4
|
CGT-18 / GN 62444-18
|
5
| ||
|
CGA-MS-25-7-4-TPE
|
21
|
7
|
25.1
|
13
|
4
|
CGT-21 / GN 62444-21
|
5
| ||
|
CGA-MS-25-8-4-TPE
|
21
|
8
|
25.1
|
13
|
4
|
CGT-21 / GN 62444-21
|
3
| ||
|
CGA-MS-25-6-6-TPE
|
21
|
6
|
25.1
|
13
|
6
|
CGT-21 / GN 62444-21
|
4
| ||
|
CGA-MS-30-8,5-5-TPE
|
25
|
8.5
|
29.8
|
13
|
5
|
CGT-25 / GN 62444-25
|
6
| ||
|
CGA-MS-30-5-8-TPE
|
25
|
5
|
29.8
|
13
|
8
|
CGT-25 / GN 62444-25
|
8
|
Material
Thermoplastic elastomer (TPE).
Features and applications

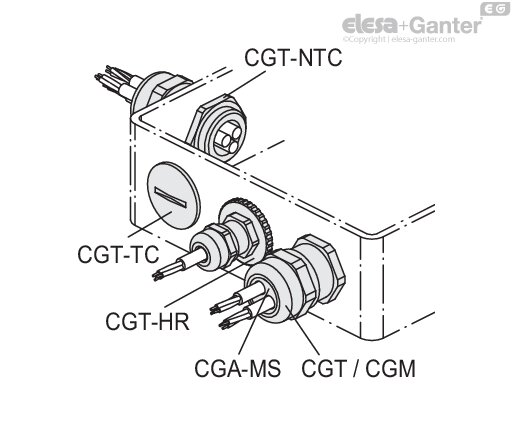

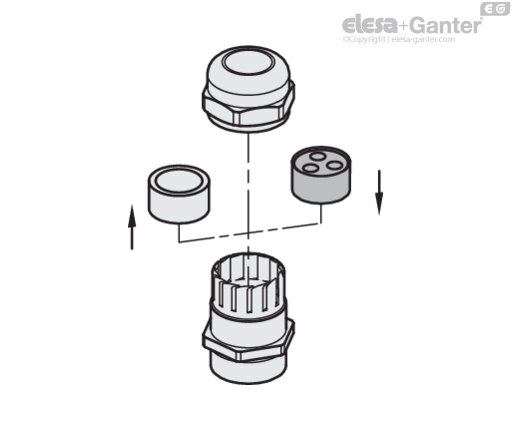

They are used as an alternative to the sealing inserts present in cable glands when more than one cable needs to be routed through the same cable gland; they can be used interchangeably with both CGT technopolymer cable glands and GN 62444 metal cable glands.
Gerelateerde producten
NEW

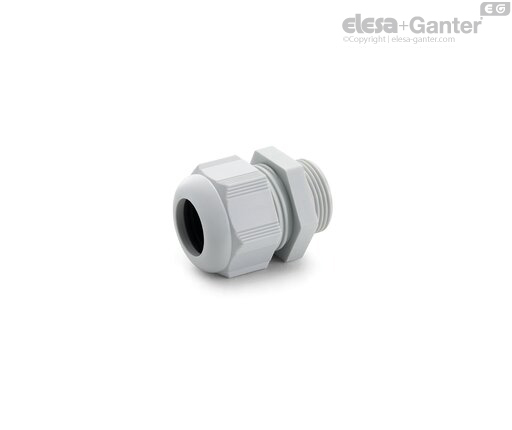

CGT
Kabelwartels
metrische, PG- en NPT-schroefdraad, technopolymeer
NEW

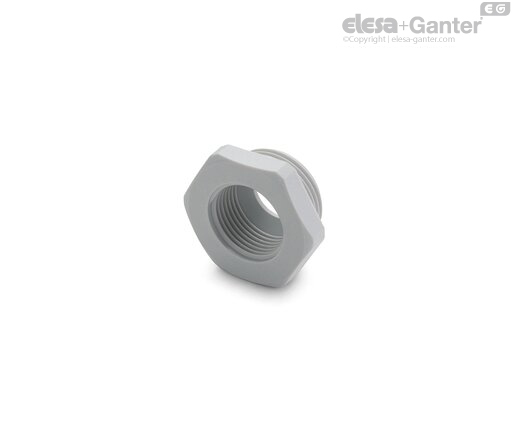

CGT-HR
Verloopstukken
voor CGT-kabelwartels, met metrische en PG-schroefdraad, van technopolymeer
NEW

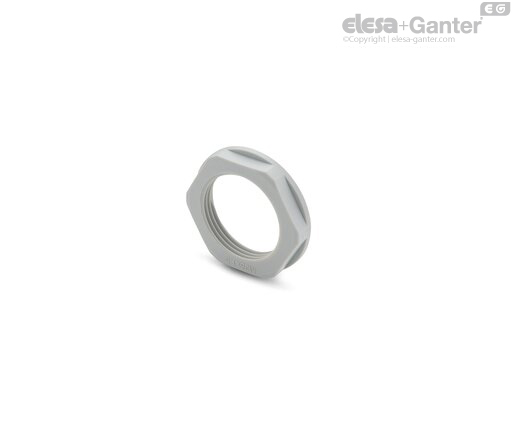

CGT-NTC
Bevestigingsmoeren
voor CGT-kabelwartels, met metrische, PG- en NPT-schroefdraad, van technopolymeer
NEW

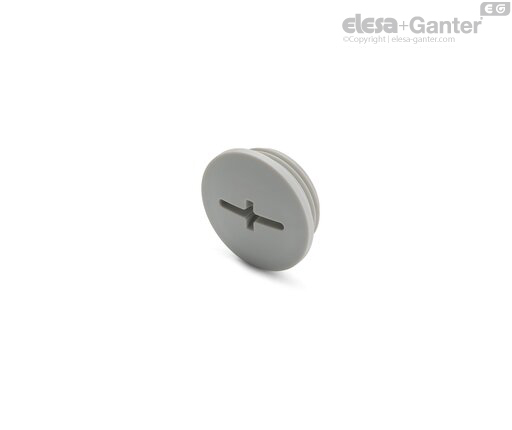

CGT-TC-S
