DIN 508T-moeren

Staal

Staal / RVS

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
Staal
Staal
Roestvrij staal
DIN 508-NI
Roestvrij staal
Staal
DIN 508
Staal

DIN 508

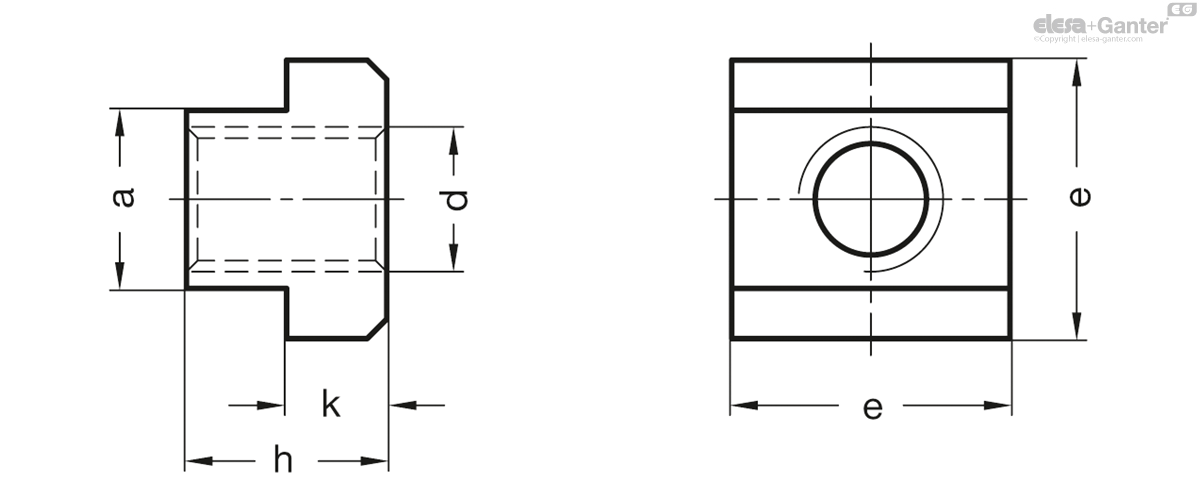

Code
a -0.3/-0.5
d
e
h
k
T-Slot width DIN 650
5
-
9 -0.5
6.5
3 -0.3
5
3
6
-
10 -0.5
8
4 -0.5
6
5
8
-
13 -0.5
10
6 -0.5
8
10
10
-
15 -0.5
12
6 -0.5
10
10
12
-
18 -0.5
14
7 -0.5
12
26
14
-
22 -0.5
16
8 -0.5
14
46
16
-
25 -0.5
18
9 -0.5
16
66
18
-
28 -0.5
20
10 -0.5
18
90
20
-
32 -0.5
24
12 -0.5
20
148
22
-
35 -0.5
28
14 -0.5
22
200
24
-
40 -0.5
32
16 -0.5
24
258
28
-
44 -1
36
18 -1
28
420
5
M 4
9 -0.5
6.5
3 -0.3
5
2
5
M 4
9 -0.5
6.5
3 -0.3
5
2
6
M 5
10 -0.5
8
4 -0.5
6
4
6
M 5
10 -0.5
8
4 -0.5
6
4
8
M 6
13 -0.5
10
6 -0.5
8
8
8
M 6
13 -0.5
10
6 -0.5
8
9
10
M 6
15 -0.5
12
6 -0.5
10
14
10
M 6
15 -0.5
12
6 -0.5
10
15
10
M 8
15 -0.5
12
6 -0.5
10
13
10
M 8
15 -0.5
12
6 -0.5
10
13
12
M 8
18 -0.5
14
7 -0.5
12
22
12
M 8
18 -0.5
14
7 -0.5
12
23
12
M 10
18 -0.5
14
7 -0.5
12
20
12
M 10
18 -0.5
14
7 -0.5
12
21
14
M 10
22 -0.5
16
8 -0.5
14
38
14
M 10
22 -0.5
16
8 -0.5
14
38
14
M 12
22 -0.5
16
8 -0.5
14
34
14
M 12
22 -0.5
16
8 -0.5
14
35
16
M 10
25 -0.5
18
9 -0.5
16
59
16
M 10
25 -0.5
18
9 -0.5
16
59
16
M 12
25 -0.5
18
9 -0.5
16
55
16
M 12
25 -0.5
18
9 -0.5
16
54
16
M 14
25 -0.5
18
9 -0.5
16
51
16
M 14
25 -0.5
18
9 -0.5
16
51
18
M 12
28 -0.5
20
10 -0.5
18
85
18
M 12
28 -0.5
20
10 -0.5
18
85
18
M 14
28 -0.5
20
10 -0.5
18
74
18
M 14
28 -0.5
20
10 -0.5
18
74
18
M 16
28 -0.5
20
10 -0.5
18
62
18
M 16
28 -0.5
20
10 -0.5
18
62
20
M 12
32 -0.5
24
12 -0.5
20
131
20
M 12
32 -0.5
24
12 -0.5
20
131
20
M 16
32 -0.5
24
12 -0.5
20
116
20
M 16
32 -0.5
24
12 -0.5
20
116
20
M 18
32 -0.5
24
12 -0.5
20
110
20
M 18
32 -0.5
24
12 -0.5
20
110
22
M 16
35 -0.5
28
14 -0.5
22
160
22
M 16
35 -0.5
28
14 -0.5
22
160
22
M 20
35 -0.5
28
14 -0.5
22
149
22
M 20
35 -0.5
28
14 -0.5
22
149
24
M 20
40 -0.5
32
16 -0.5
24
237
24
M 20
40 -0.5
32
16 -0.5
24
237
24
M 22
40 -0.5
32
16 -0.5
24
228
24
M 22
40 -0.5
32
16 -0.5
24
228
28
M 20
44 -1
36
18 -1
28
347
28
M 20
44 -1
36
18 -1
28
347
28
M 24
44 -1
36
18 -1
28
314
28
M 24
44 -1
36
18 -1
28
314
DIN 508-36-M30-8
36*
M 30
54 -1
44
22 -1
36
586
36
M 30
54 -1
44
22 -1
36
585
42
M 36
65 -1
52
26 -1
42
960
* not available from stock in tensile strength class 8, requires a minimum order quantity

Version in Steel

Heat-treated steel

Tensile strength class 8

blank

Tensile strength class 10

blackened

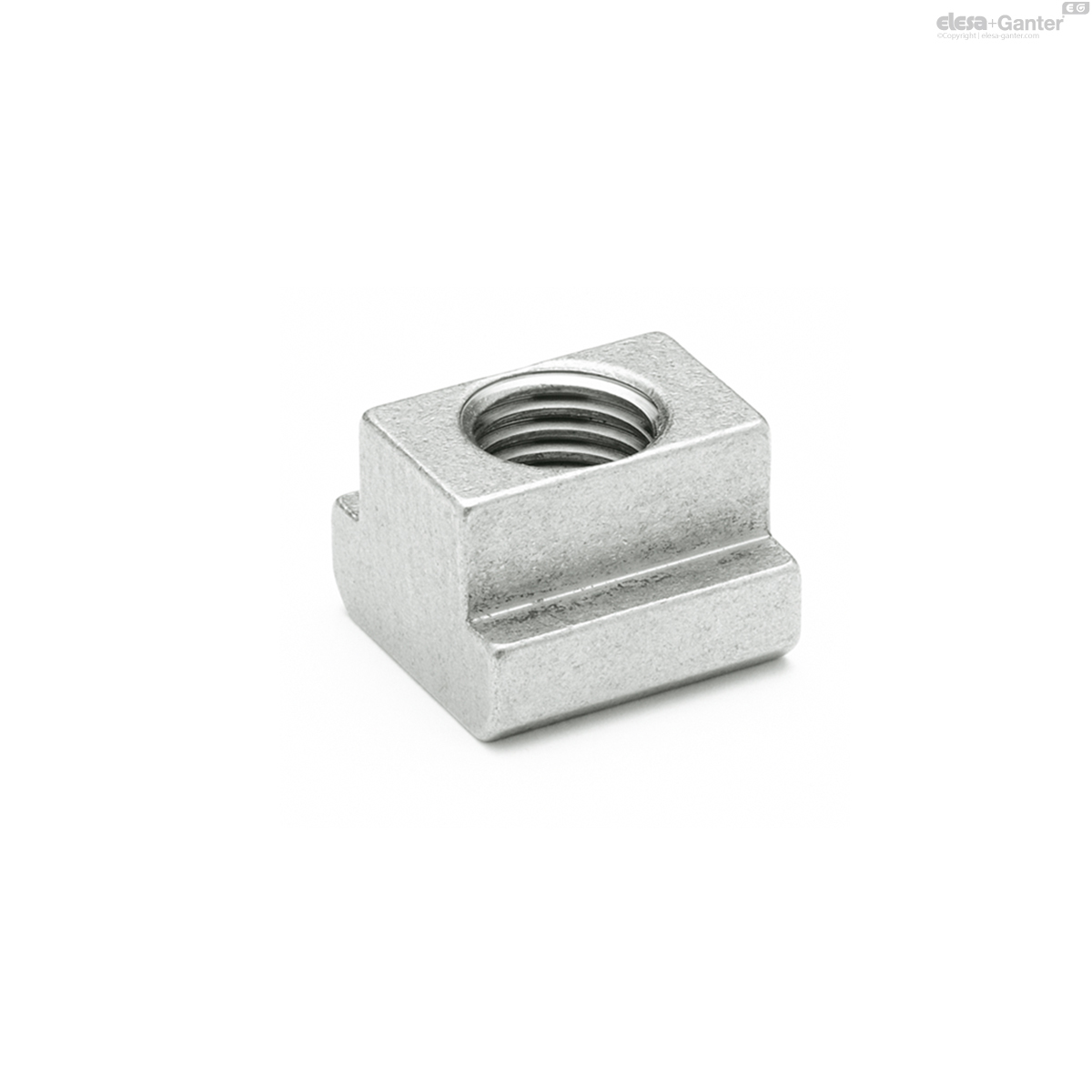

Version in Stainless Steel NI

  • AISI 316Ti (with thread)
  • AISI 304 (without thread)

T-Nuts DIN 508 untapped with the tensile strength class 8 (blank) are also available. When ordering the latter the thread size is omitted in part number.

Gerelateerde producten
Draadstangen

DIN 6379

Draadstangen voor T-moeren

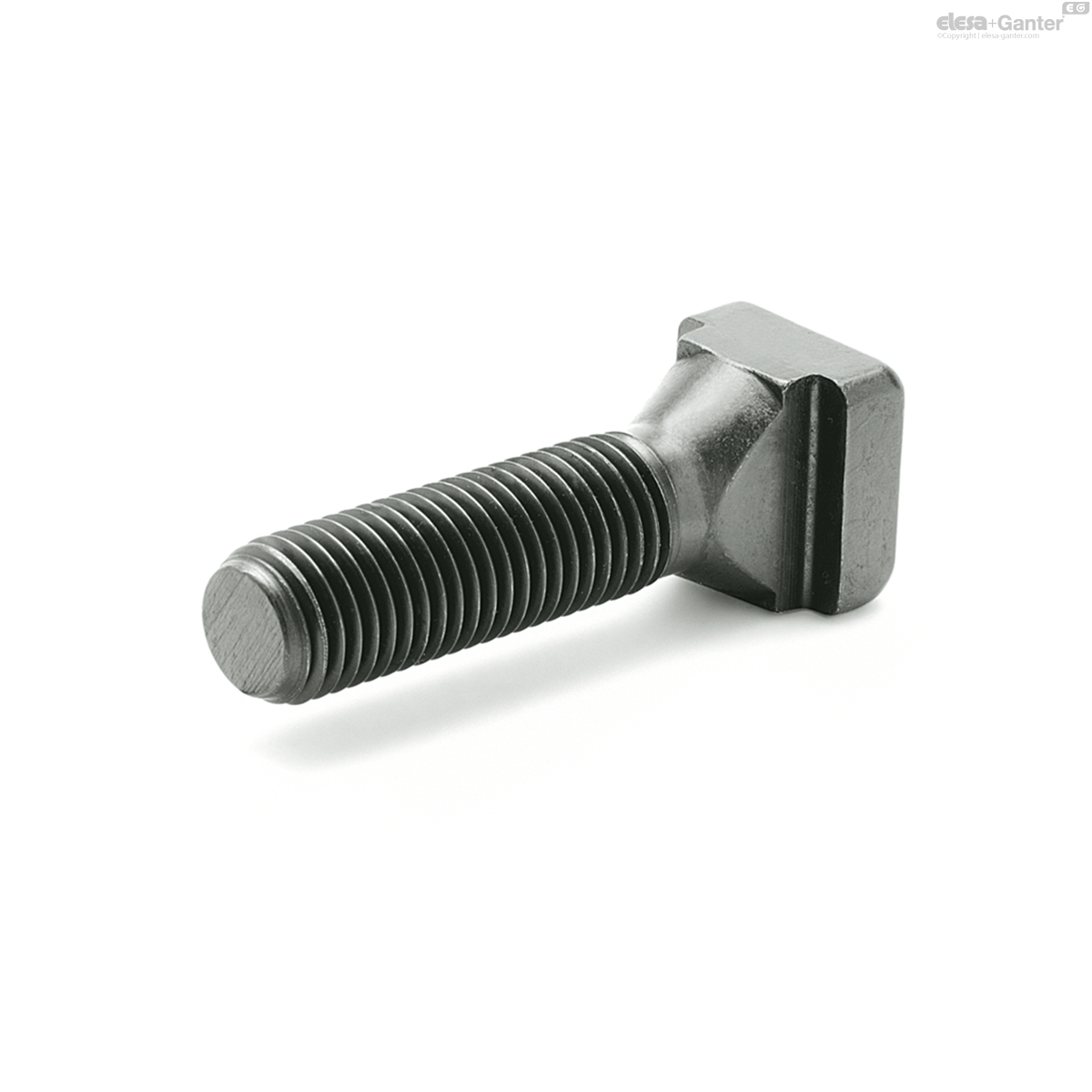

T-sleufbouten

DIN 787

T-sleufbouten

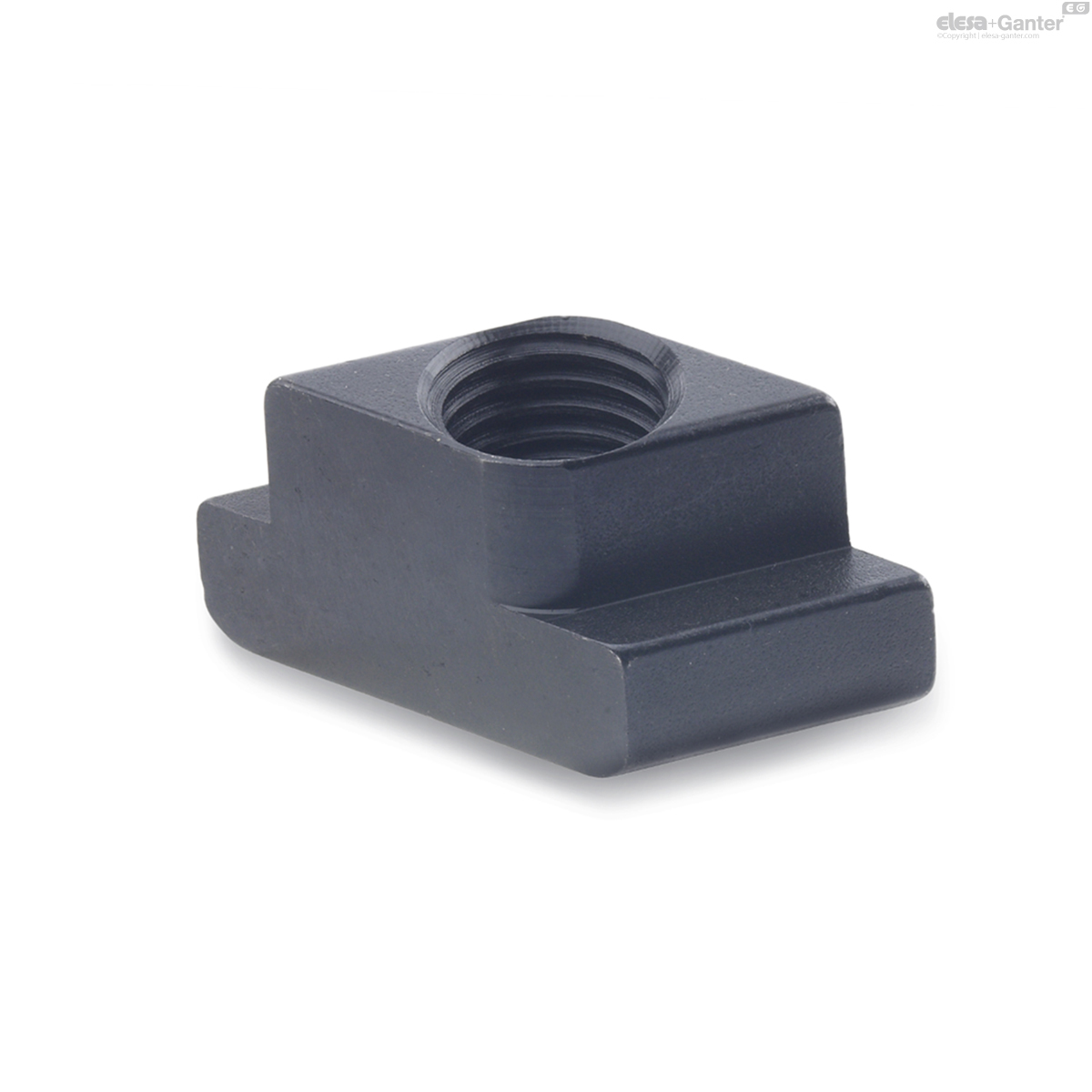

Rhombus T-moeren
