Technical datasheet

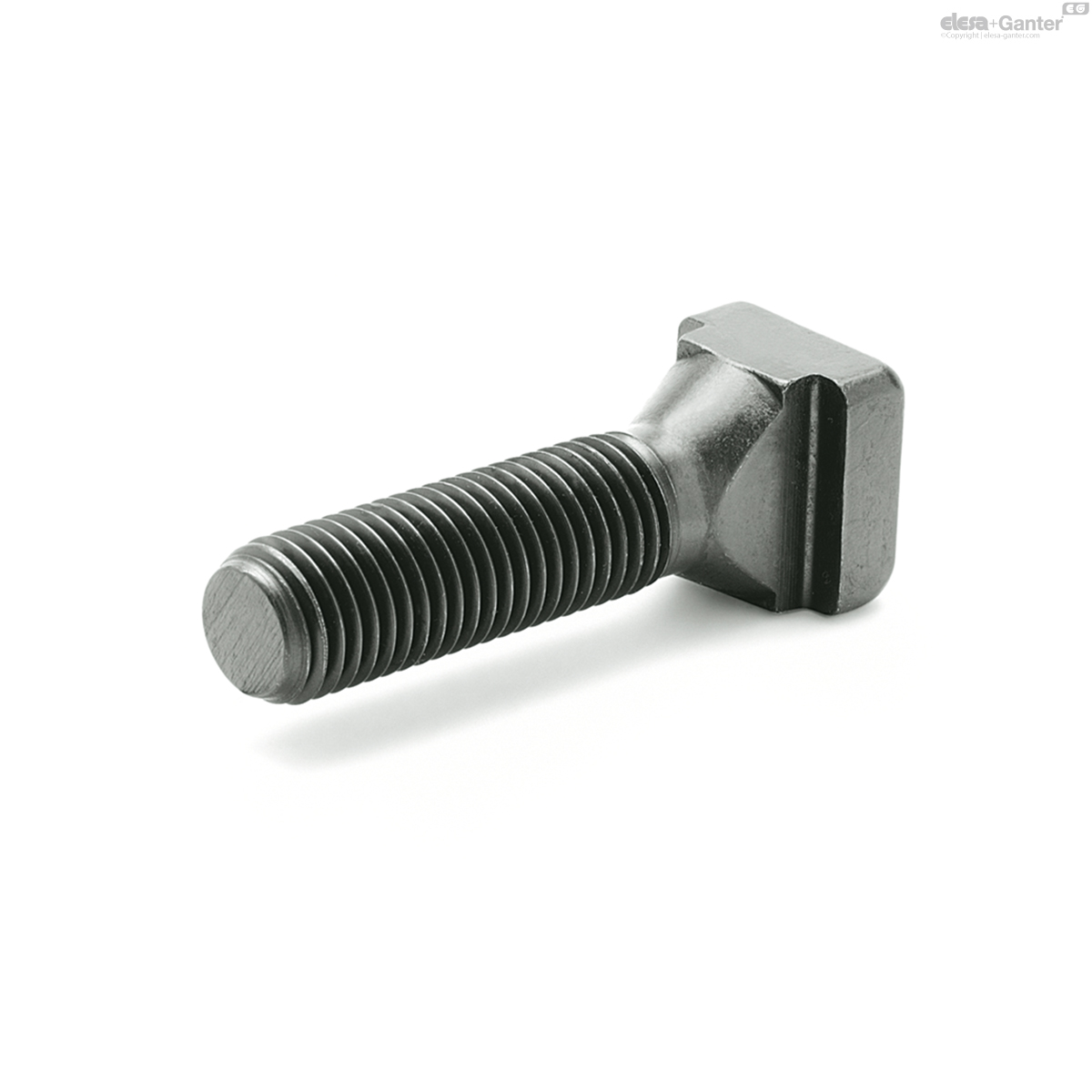

DIN 787T-sleufbouten
T-sleufbouten
DIN 787
|

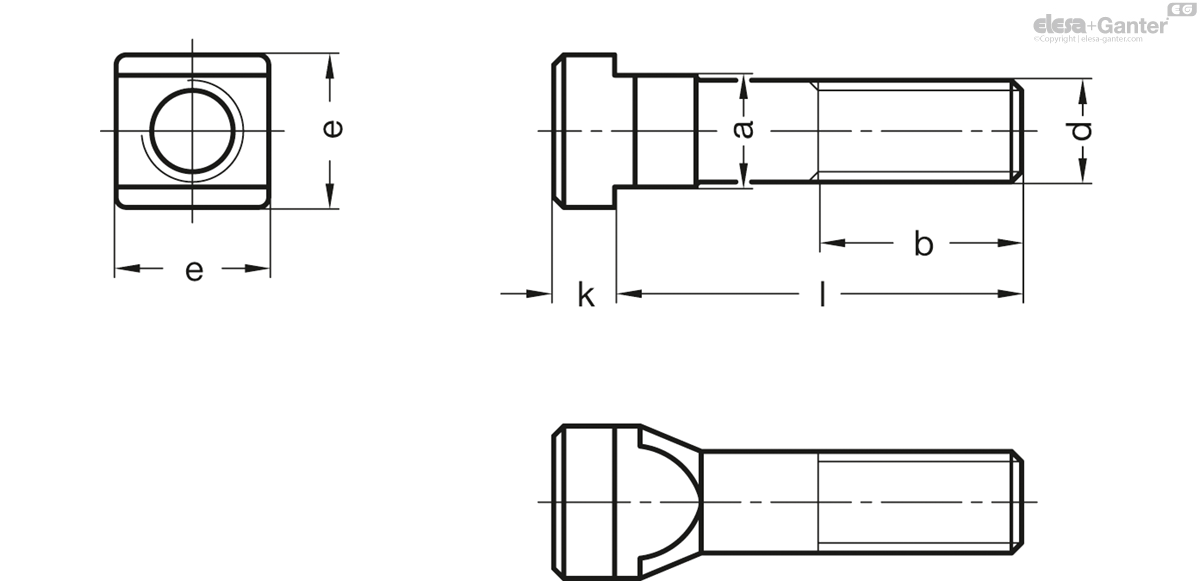

Code
|
a -0.3/-0.5
|
d
|
l-b
|
e
|
k
|
T-Slot width DIN 650
|
|
|
|---|---|---|---|---|---|---|---|---|
|
6
|
M 6
|
25 - 15
|
10 -0.5
|
4 -0.5
|
6
|
8
| ||
|
6
|
M 6
|
40 - 28
|
10 -0.5
|
4 -0.5
|
6
|
11
| ||
|
8
|
M 8
|
32 - 22
|
13 -0.5
|
6 -0.5
|
8
|
17
| ||
|
8
|
M 8
|
50 - 35
|
13 -0.5
|
6 -0.5
|
8
|
24
| ||
|
10
|
M 10
|
40 - 30
|
15 -0.5
|
6 -0.5
|
10
|
30
| ||
|
10
|
M 10
|
63 - 45
|
15 -0.5
|
6 -0.5
|
10
|
40
| ||
|
10
|
M 10
|
100 - 60
|
15 -0.5
|
6 -0.5
|
10
|
67
| ||
|
12
|
M 12
|
50 - 35
|
18 -0.5
|
7 -0.5
|
12
|
58
| ||
|
12
|
M 12
|
80 - 55
|
18 -0.5
|
7 -0.5
|
12
|
87
| ||
|
12
|
M 12
|
125 - 75
|
18 -0.5
|
7 -0.5
|
12
|
100
| ||
|
14
|
M 12
|
50 - 35
|
22 -0.5
|
8 -0.5
|
14
|
75
| ||
|
14
|
M 12
|
80 - 55
|
22 -0.5
|
8 -0.5
|
14
|
90
| ||
|
14
|
M 12
|
125 - 75
|
22 -0.5
|
8 -0.5
|
14
|
135
| ||
|
14
|
M 12
|
200 - 120
|
22 -0.5
|
8 -0.5
|
14
|
195
| ||
|
18
|
M 16
|
63 - 45
|
28 -0.5
|
10 -0.5
|
18
|
160
| ||
|
18
|
M 16
|
100 - 63
|
28 -0.5
|
10 -0.5
|
18
|
200
| ||
|
18
|
M 16
|
160 - 100
|
28 -0.5
|
10 -0.5
|
18
|
300
| ||
|
18
|
M 16
|
250 - 150
|
28 -0.5
|
10 -0.5
|
18
|
410
| ||
|
22
|
M 20
|
80 - 55
|
35 -0.5
|
14 -0.5
|
22
|
320
| ||
|
22
|
M 20
|
125 - 85
|
35 -0.5
|
14 -0.5
|
22
|
440
| ||
|
22
|
M 20
|
200 - 125
|
35 -0.5
|
14 -0.5
|
22
|
610
| ||
|
28
|
M 24
|
100 - 70
|
44 -1
|
18 -1
|
28
|
600
| ||
|
28
|
M 24
|
160 - 110
|
44 -1
|
18 -1
|
28
|
850
| ||
|
28
|
M 24
|
250 - 150
|
44 -1
|
18 -1
|
28
|
1020
|
Heat-treated steel
- Tensile strength class 8.8
- forged
- blackened
Slot flats milled
The official standard sheet of screws for T-Nuts DIN 787 also lists the sizes 5, 36, 42, 48 and 54.
