Technical datasheet

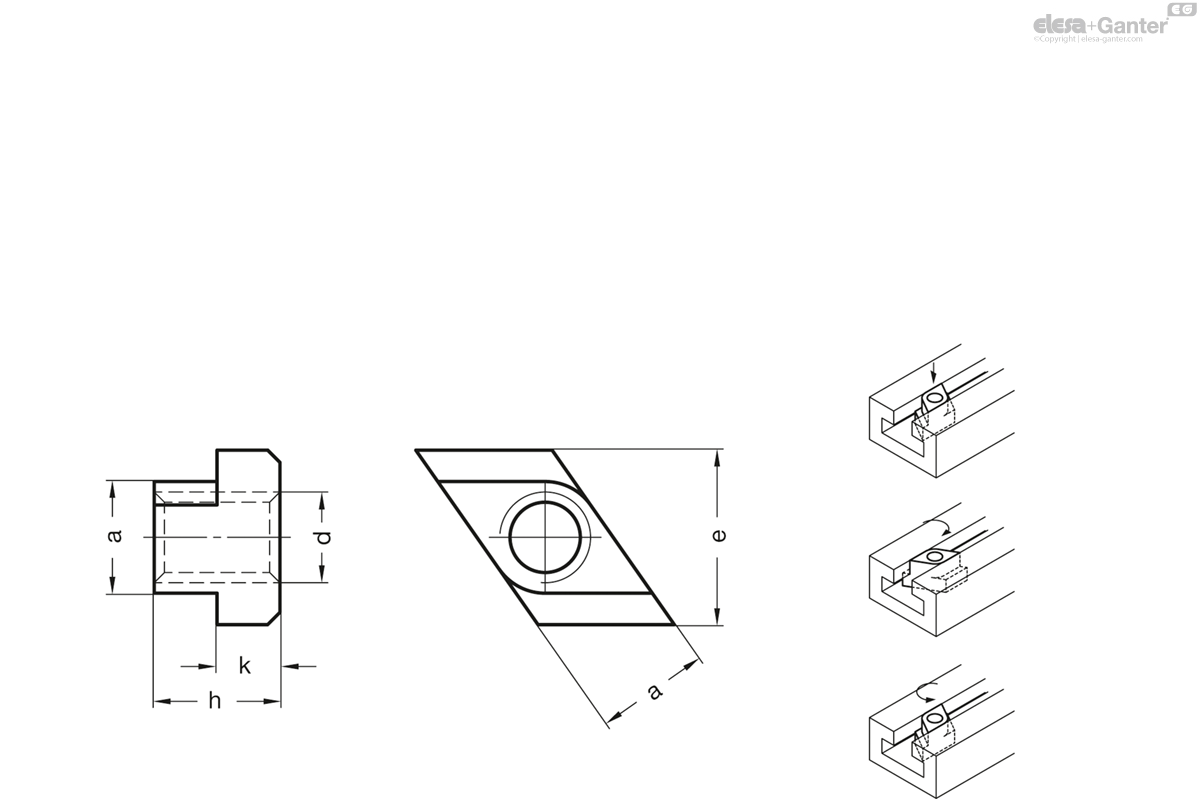

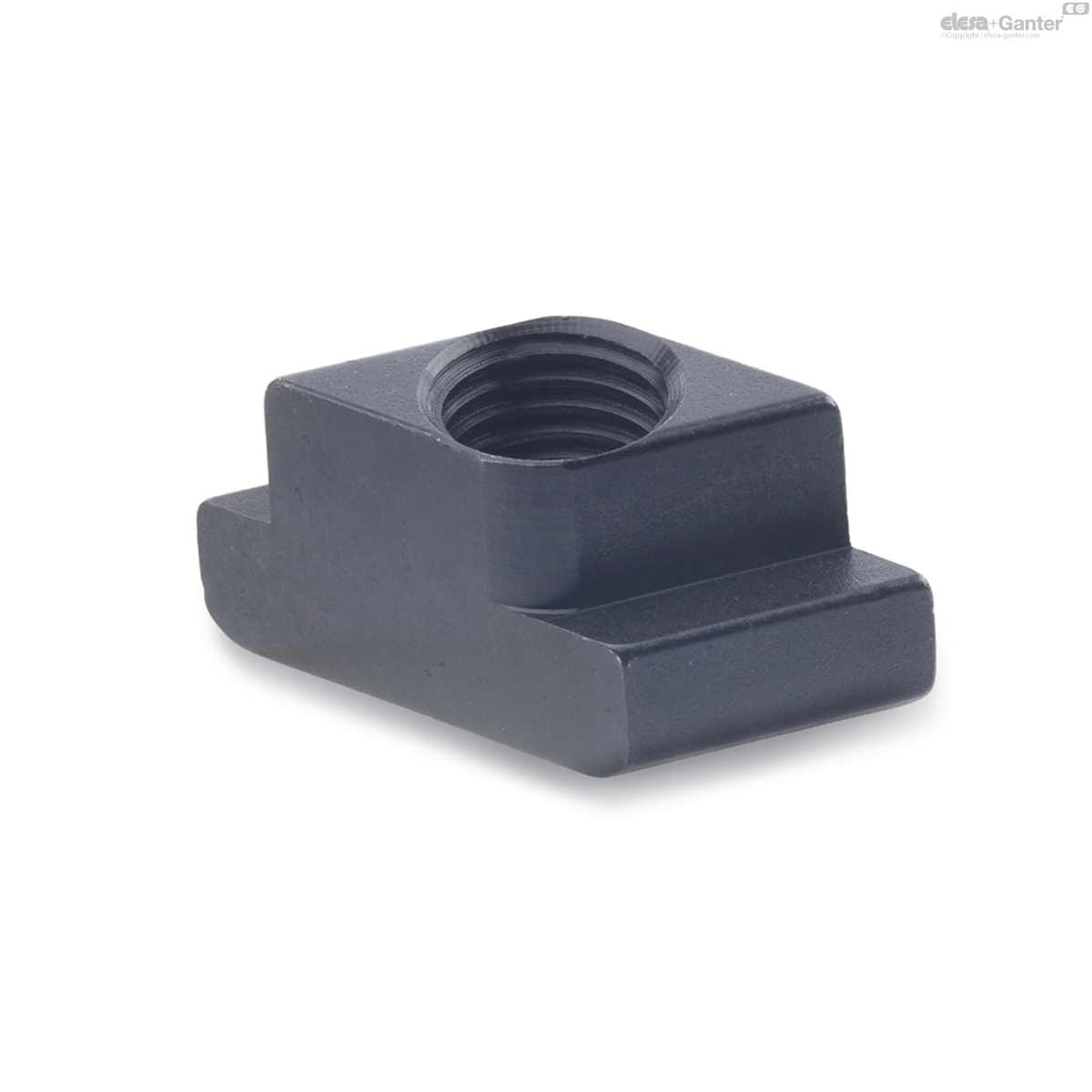

GN 508.1Rhombus T-moeren
Rhombus T-moeren
GN 508.1
|
Code
|
a -0.3/-0.5
|
d
|
e -0.5
|
h
|
k -0.5
|
T-Slot width DIN 650
|
|
|
|---|---|---|---|---|---|---|---|---|
|
8
|
M 6
|
13
|
10
|
6
|
8
|
5
| ||
|
10
|
M 8
|
15
|
12
|
6
|
10
|
9
| ||
|
12
|
M 10
|
18
|
14
|
7
|
12
|
13
| ||
|
14
|
M 12
|
22
|
16
|
8
|
14
|
22
| ||
|
16
|
M 14
|
25
|
18
|
9
|
16
|
32
| ||
|
18
|
M 16
|
28
|
20
|
10
|
18
|
44
| ||
|
22
|
M 20
|
35
|
28
|
14
|
22
|
97
|
Heat-treated steel
- Tensile strength class 10
- blackened
Rhombus T-Nuts GN 508.1 can be inserted vertically into the T-Slot.
