VVH-09-S
Siliconenrubber, zonder steun
Diameter 9 mm, met of zonder gevormde steun, rubber
Lt: 1-2 weken Alle maten en varianten van VVH-09
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche

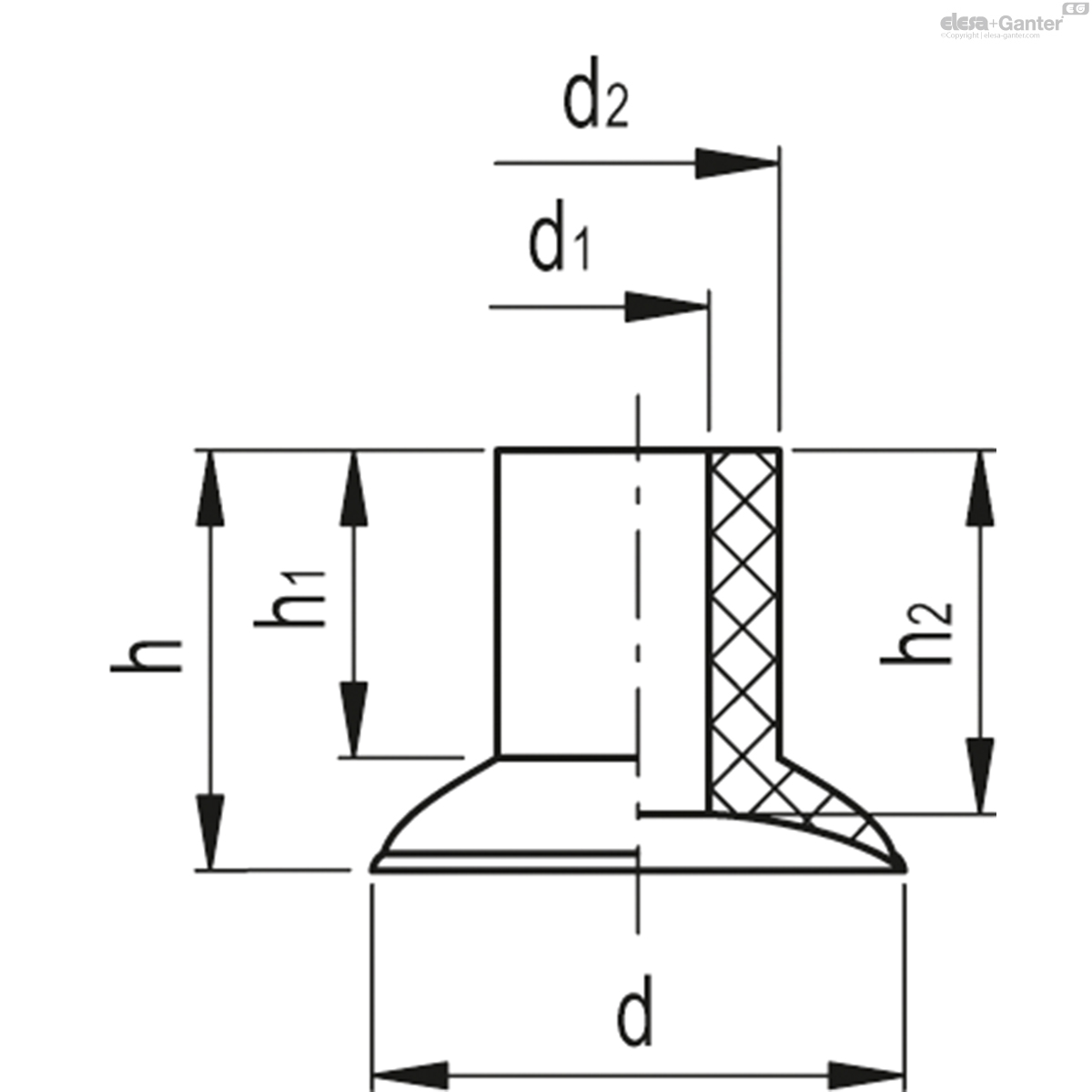

Technische gegevens
- Code
- VV.52030
- d
- 9
- d1
- 2
- d2
- 5
- h
- 7
- h1
- 5.5
- h2
- 6
- F*
[Kg] - 0.15
- Volumen#
[mm3] - 56
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVH-09-S: silicone rubber, without support.
- VVH-09-T-S: silicone rubber, with support.
Features and applications
They are used in various sectors including electronics for gripping of electrical components, food packaging and, in general, for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).
