VVH-09-S
Caoutchouc de silicone, sans support
Diamètre 9 mm, avec ou sans support de forme, caoutchouc
Délai: 1-2 semaines Toutes les tailles et variantes de VVH-09
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte

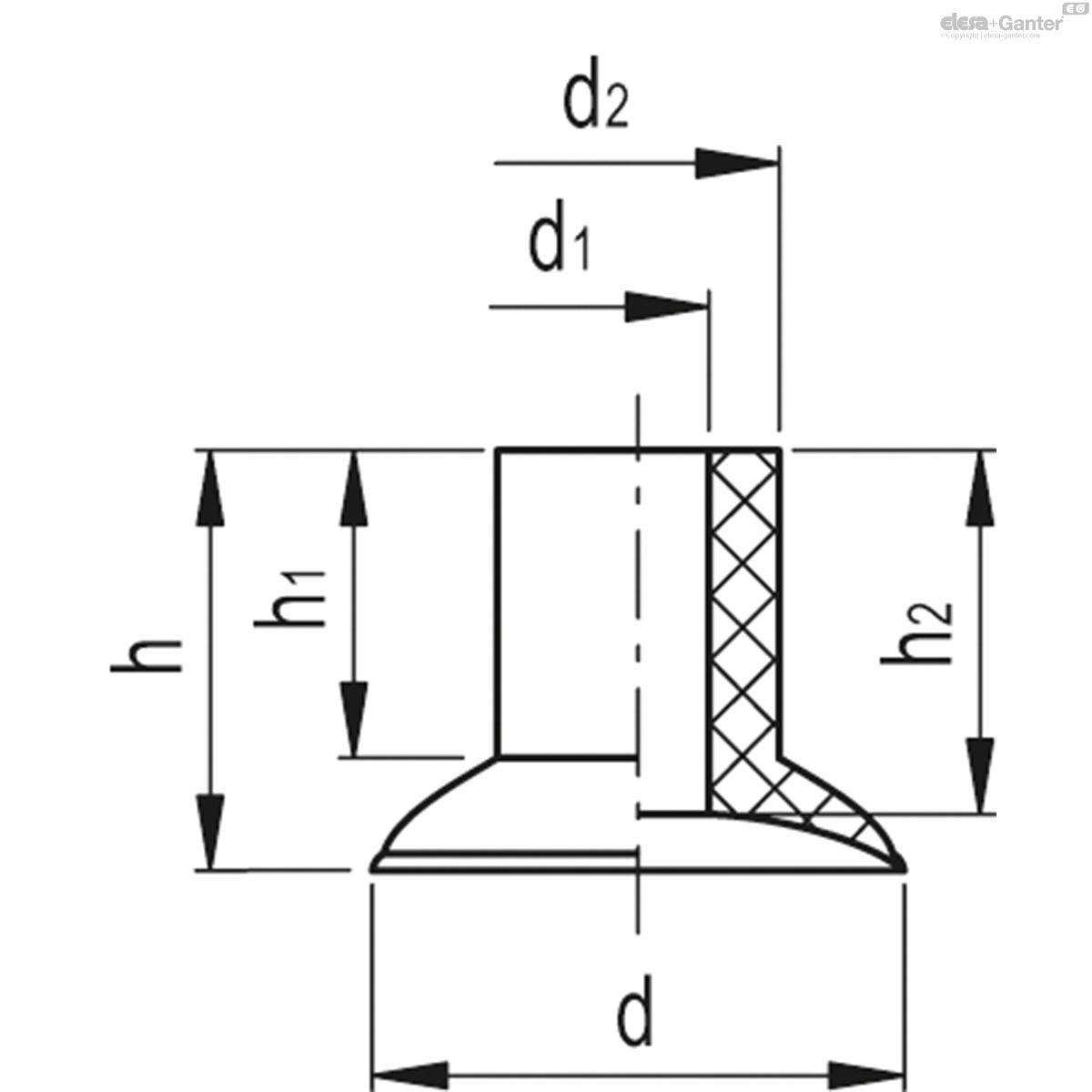

Fiche technique
Caractéristiques techniques
- Code
- VV.52030
- d
- 9
- d1
- 2
- d2
- 5
- h
- 7
- h1
- 5.5
- h2
- 6
- F*
[Kg] - 0.15
- Volume#
[mm3] - 56
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVH-09-S: silicone rubber, without support.
- VVH-09-T-S: silicone rubber, with support.
Features and applications
They are used in various sectors including electronics for gripping of electrical components, food packaging and, in general, for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).
