VVH-09-S
Silicone rubber, without support
Diameter 9 mm, with or without shaped support, rubber
Eta: 1-2 weeks All sizes and variants of VVH-09
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

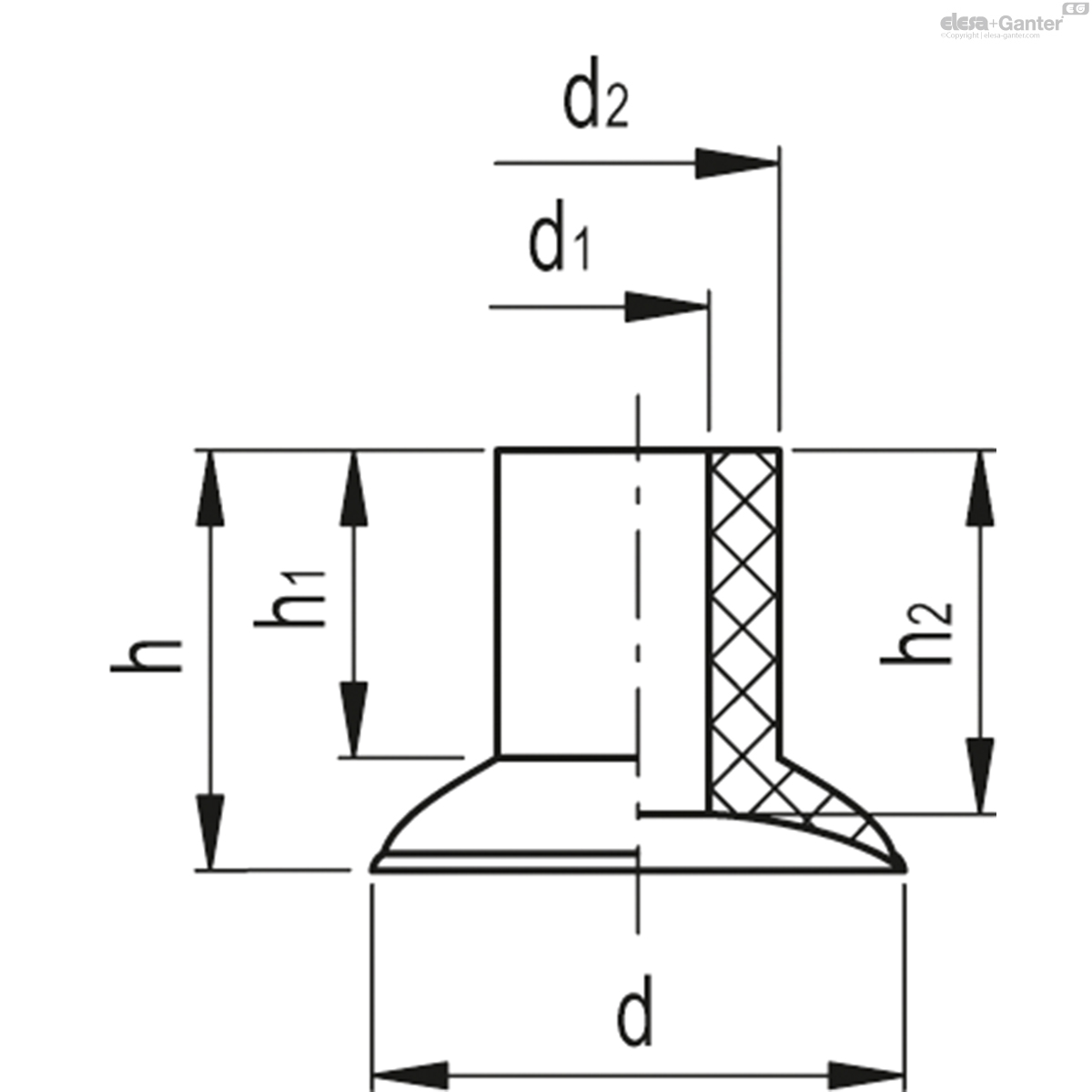

Technical data
- Catalogue
- VV.52030
- d
- 9
- d1
- 2
- d2
- 5
- h
- 7
- h1
- 5.5
- h2
- 6
- F*
[Kg] - 0.15
- Volumen#
[mm3] - 56
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVH-09-S: silicone rubber, without support.
- VVH-09-T-S: silicone rubber, with support.
Features and applications
They are used in various sectors including electronics for gripping of electrical components, food packaging and, in general, for handling products with very different technical characteristics in terms of size, materials (metal or plastic), form, and gripping surfaces (flat, slightly convex or concave).
