VVA-07-M5-T-S
VVA-07-T-S Met steun
Diameter 7mm, met of zonder steun, rubber
Lt: 1-2 weken Alle maten en varianten van VVA-07
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

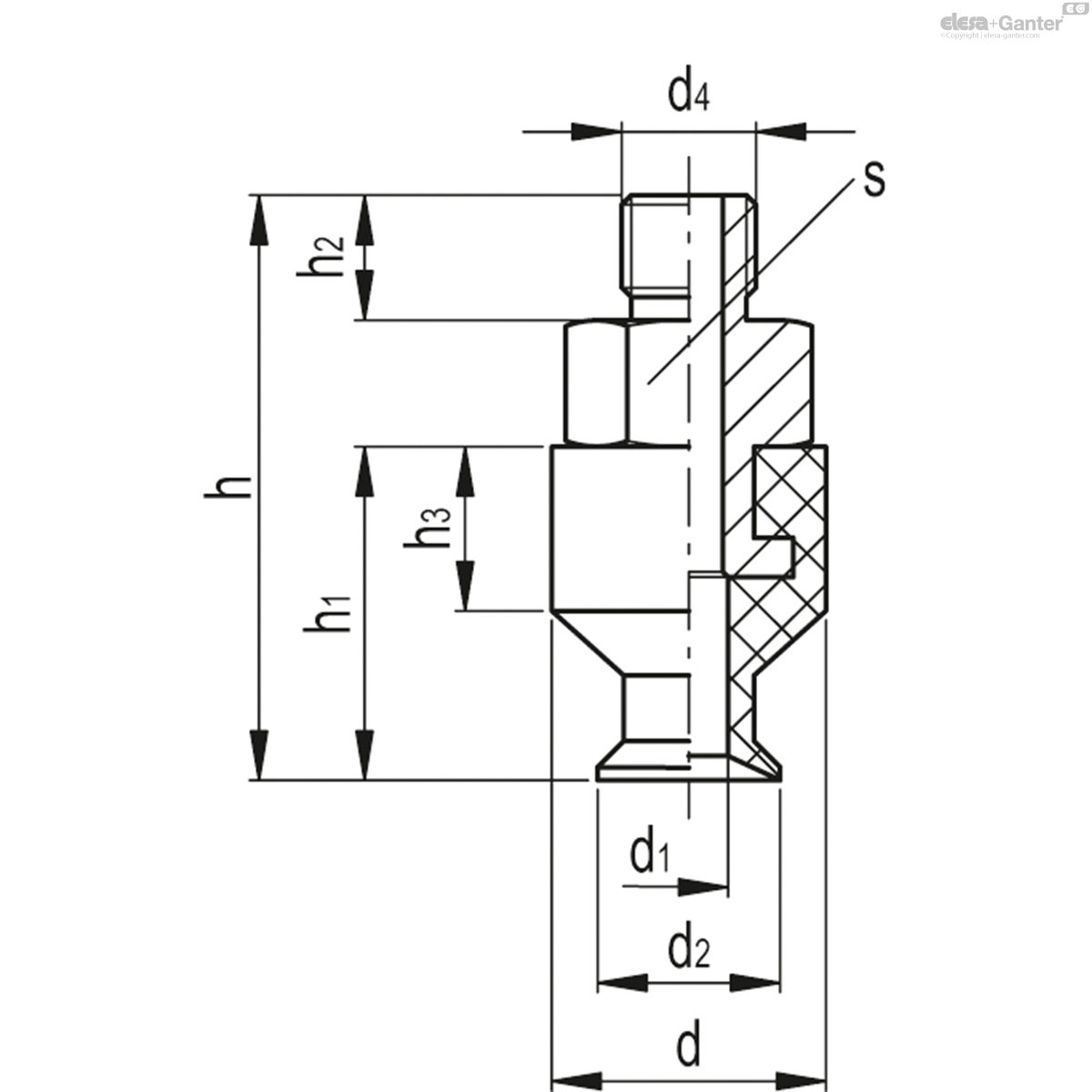

Technische fiche
Technische gegevens
- Code
- VV.45002
- d
- 10.5
- d1
- 3
- d2
- 7
- d4
- M5
- h
- 23
- h1
- 13
- h2
- 5
- h3
- 6.5
- s
- 8
- F*
[Kg] - 0.1
- Volume#
[mm3] - 19
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVA-07-S: without support.
- VVA-07-T-S: with support.
Applications
They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.
They can also be used in different sectors, including electronics, for gripping small electrical components, food or for use with small metal or plastic products.
