VVA-07-M5-T-S
VVA-07-T-S Avec support
Diamètre 7mm, avec ou sans support, caoutchouc
Délai: 1-2 semaines Toutes les tailles et variantes de VVA-07
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique

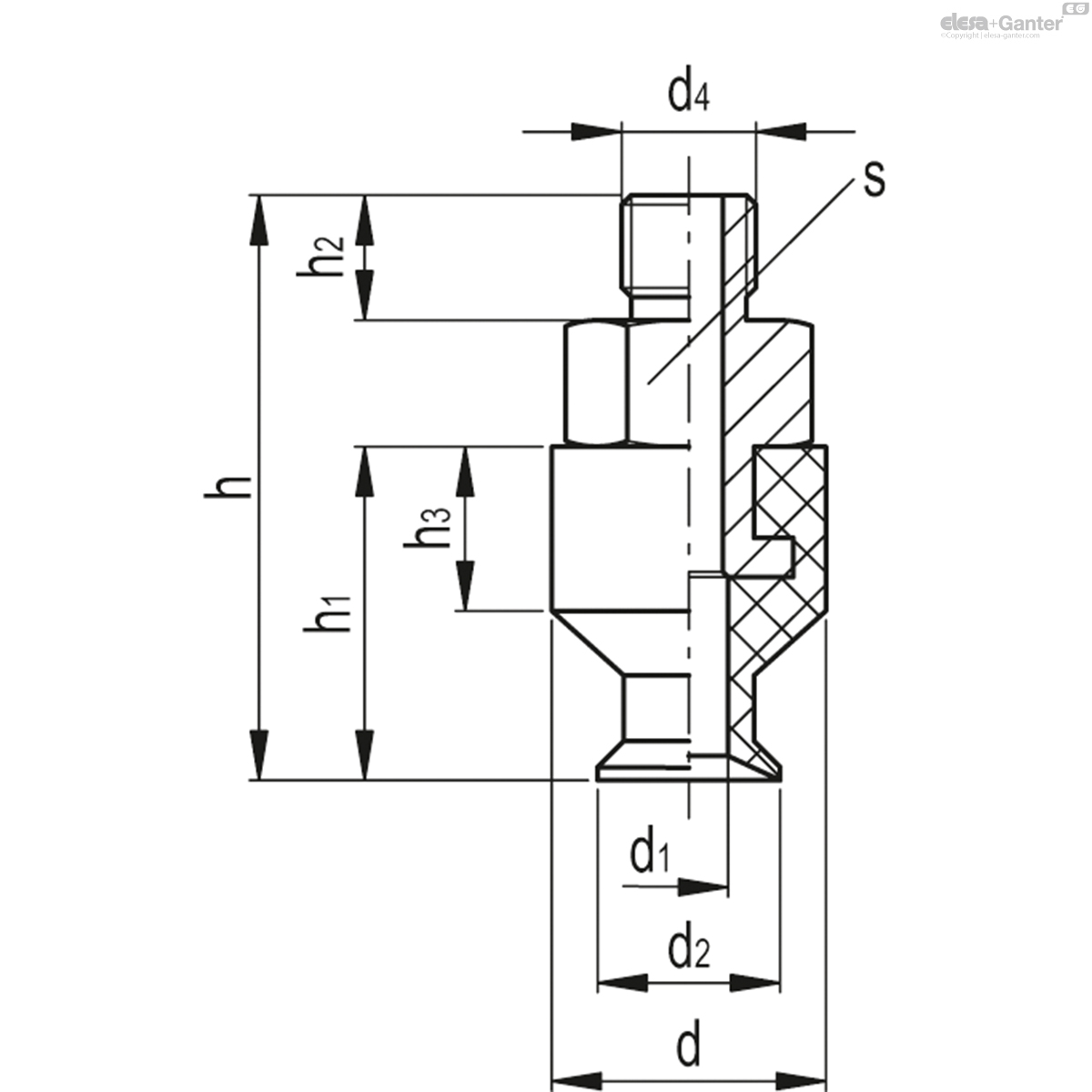

Caractéristiques techniques
- Code
- VV.45002
- d
- 10.5
- d1
- 3
- d2
- 7
- d4
- M5
- h
- 23
- h1
- 13
- h2
- 5
- h3
- 6.5
- s
- 8
- F*
[Kg] - 0.1
- Volume#
[mm3] - 19
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVA-07-S: without support.
- VVA-07-T-S: with support.
Applications
They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.
They can also be used in different sectors, including electronics, for gripping small electrical components, food or for use with small metal or plastic products.
