VVA-07-M5-T-S

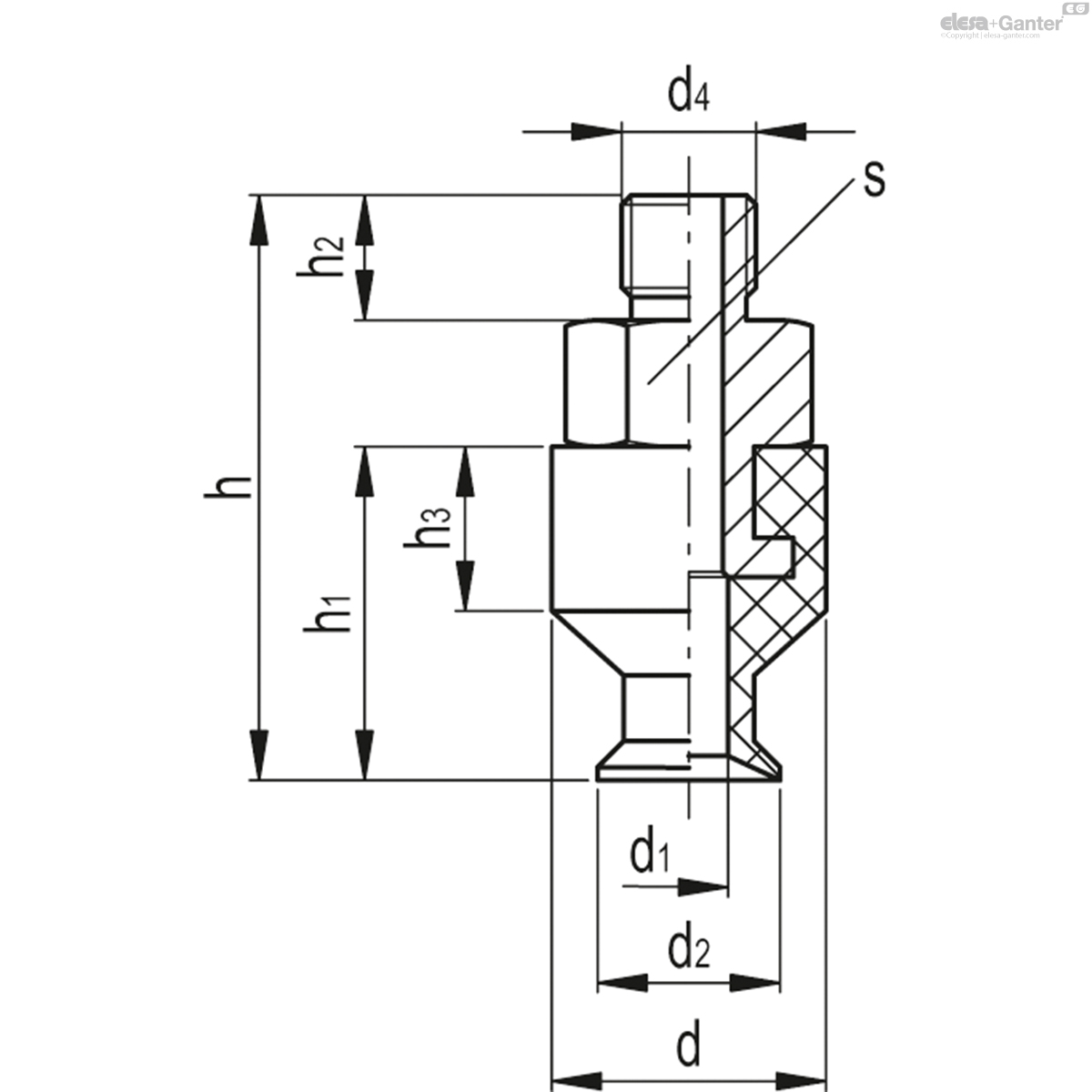

VVA-07-T-S With support
Diameter 7mm, with or without support, rubber
Eta: 1-2 weeks All sizes and variants of VVA-07
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- VV.45002
- d
- 10.5
- d1
- 3
- d2
- 7
- d4
- M5
- h
- 23
- h1
- 13
- h2
- 5
- h3
- 6.5
- s
- 8
- F*
[Kg] - 0.1
- Volume#
[mm3] - 19
- 4
* The force of the vacuum cups indicated in the table represents 1/3 of the value of the theoretical force calculated at a vacuum level of -75 KPa and a safety coefficient of 3.# Indicates the internal geometric volume of the vacuum cup and represents th
Material
Vacuum cup in silicone rubber (VMQ).
Nickel-plated brass support.
Standard executions
- VVA-07-S: without support.
- VVA-07-T-S: with support.
Applications
They are widely used in the paper converting sector, in particular for the handling of paper sheets and labels.
They can also be used in different sectors, including electronics, for gripping small electrical components, food or for use with small metal or plastic products.
