DS-EMPC.160-17-C1
DS-EMPC Afstandshulzen
voor EMPC beugelhandgreep , technopolymeer
Lt: 1-2 weken Alle maten en varianten van DS-EMPC
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen
Technische fiche
Technische gegevens
- Code
- 15271-C1
- L
- 34
- d
- 9.5
- h
- 17.5
- h1
- 27.5
- h2
- 72.5
- C
- 28
- F1
[N] - 2400
- F2
[N] - 2500
- L1
[J] - 20
- L2
[J] - 30
- 16
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Features and applications

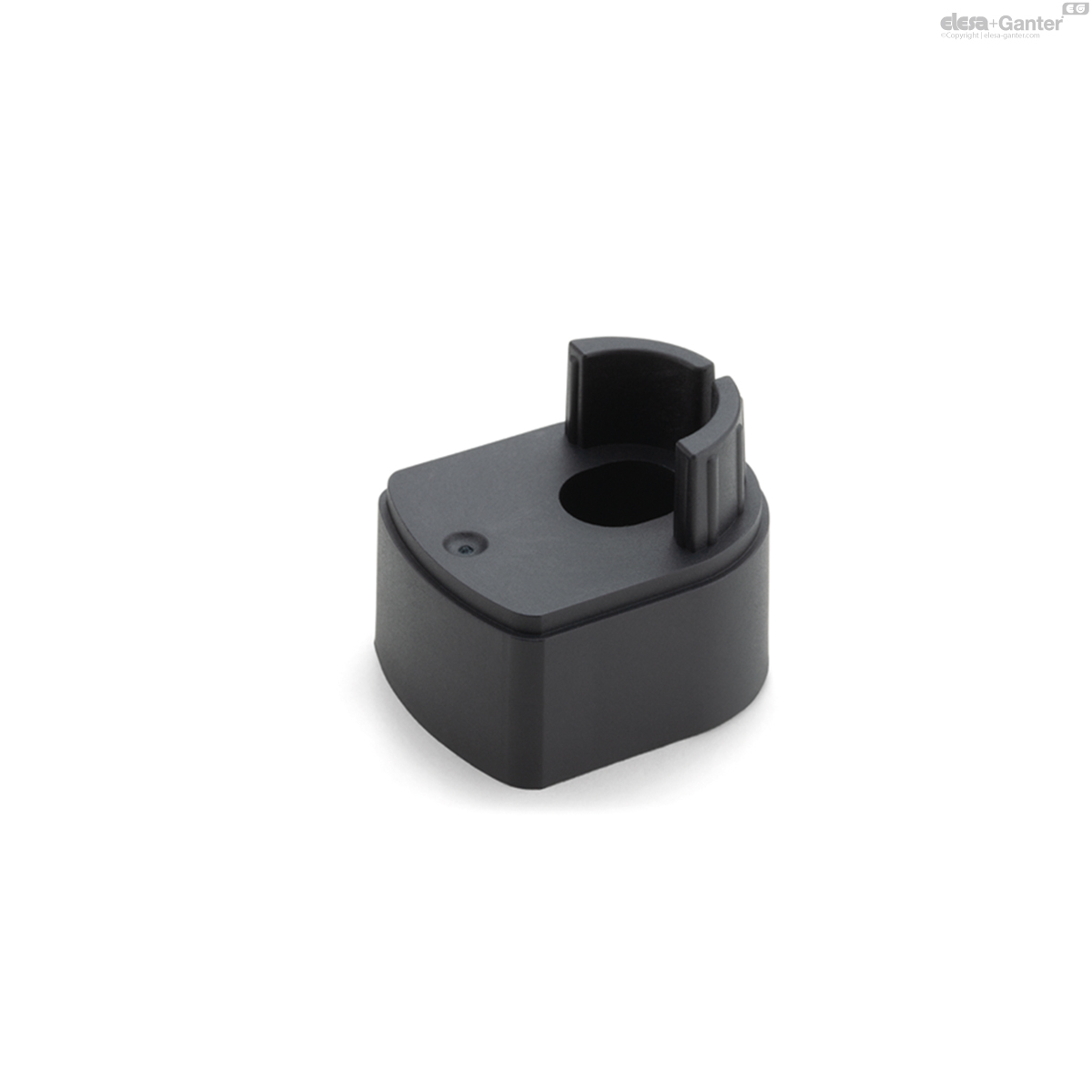

Spacer sleeves for EMPC bridge handles have been designed to increase the distance between the handle and the fitting surface.
Technical data

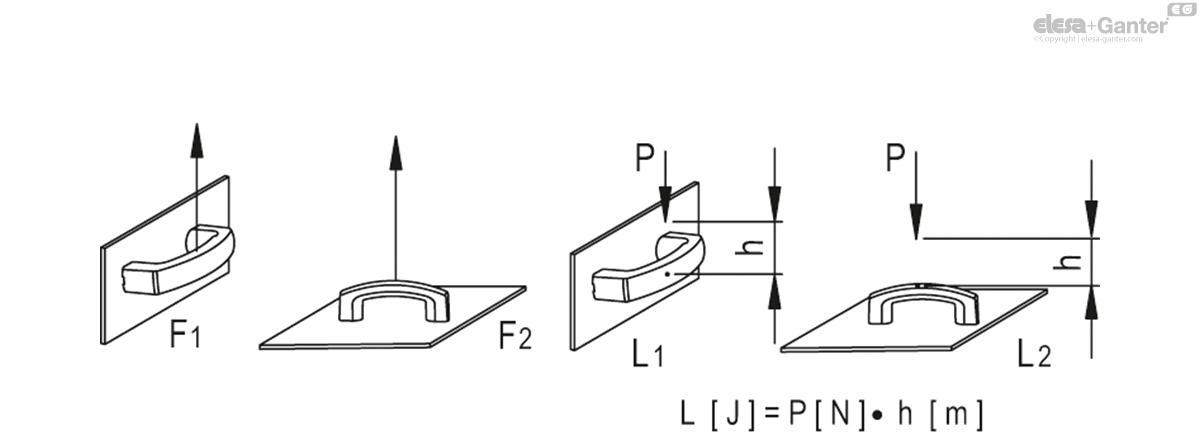

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
