DS-EMPC.160-17-C1 DS-EMPC Spacer sleeves

DS-EMPC.160-17-C1

DS-EMPC Spacer sleeves

for EMPC bridge handles, technopolymer
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png
  • Icons/__logo__ERGO__.png

Eta: 1-2 weeks All sizes and variants of DS-EMPC

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
15271-C1
L
34
d
9.5
h
17.5
h1
27.5
h2
72.5
C
28
F1
[N]
2400
F2
[N]
2500
L1
[J]
20
L2
[J]
30
16
DS-EMPC.160-17-C1 drawing
DS-EMPC.160-17-C1 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Features and applications

Spacer sleeves for EMPC bridge handles have been designed to increase the distance between the handle and the fitting surface.

Technical data

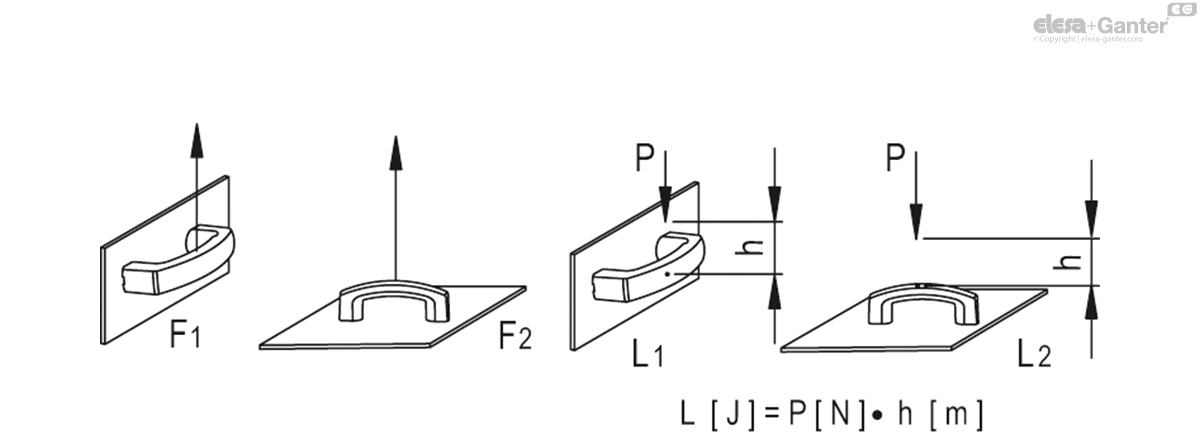

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
