DS-EMPC.160-17-C1
DS-EMPC Manchons d'espacement
pour poignées pont EMPC, technopolymère
Délai: 1-2 semaines Toutes les tailles et variantes de DS-EMPC
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- 15271-C1
- L
- 34
- d
- 9.5
- h
- 17.5
- h1
- 27.5
- h2
- 72.5
- C
- 28
- F1
[N] - 2400
- F2
[N] - 2500
- L1
[J] - 20
- L2
[J] - 30
- 16
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Features and applications
Spacer sleeves for EMPC bridge handles have been designed to increase the distance between the handle and the fitting surface.
Technical data

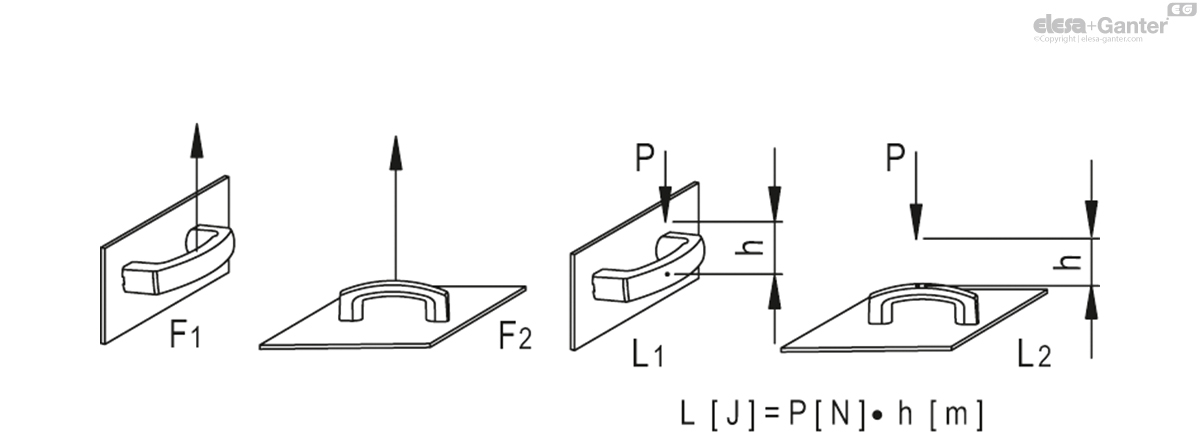

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
