MPC.152-6 MPC Beugelgrepen

MPC.152-6

MPC Beugelgrepen

Beugelgrepen
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png

Lt: 1-2 weken Alle maten en varianten van MPC

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
260910
L
153
l
28
f±1
117-120
d
6.5
s
10
h
49.5
h1
6.5
h2
24
B
15.5
l1
93
F1
[N]
2800
F2
[N]
2500
L1
[J]
10
L2
[J]
30
58

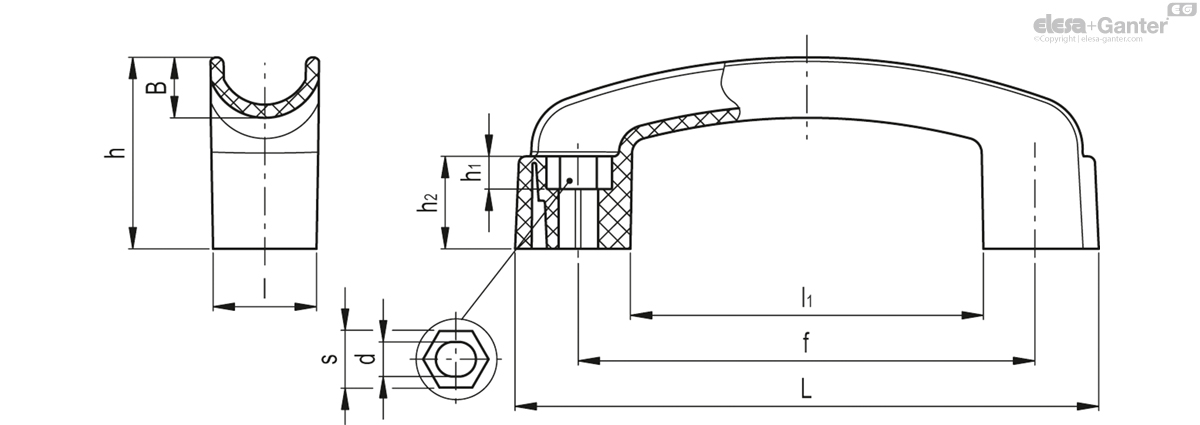

MPC.152-6 drawing
MPC.152-6 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Standard execution

Pass-through holes for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or nuts.

Technical data

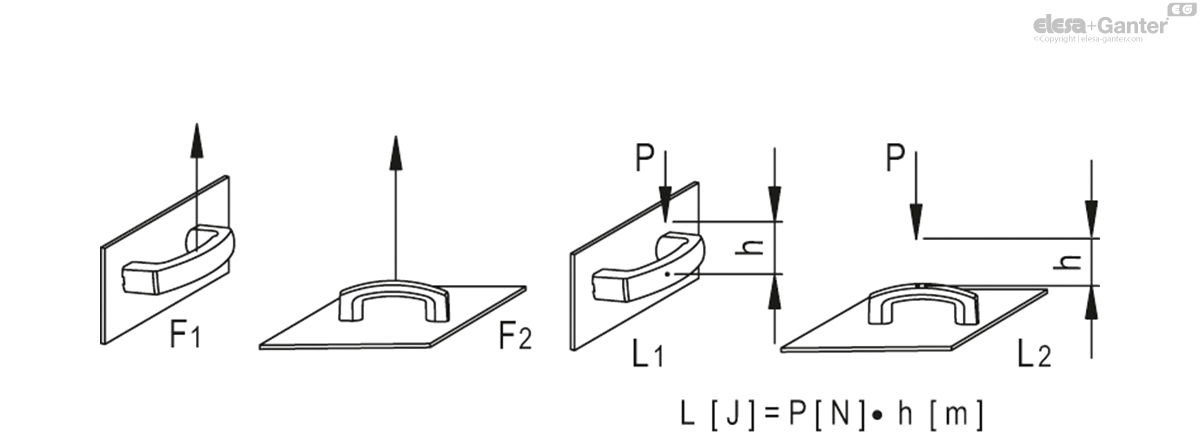

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
