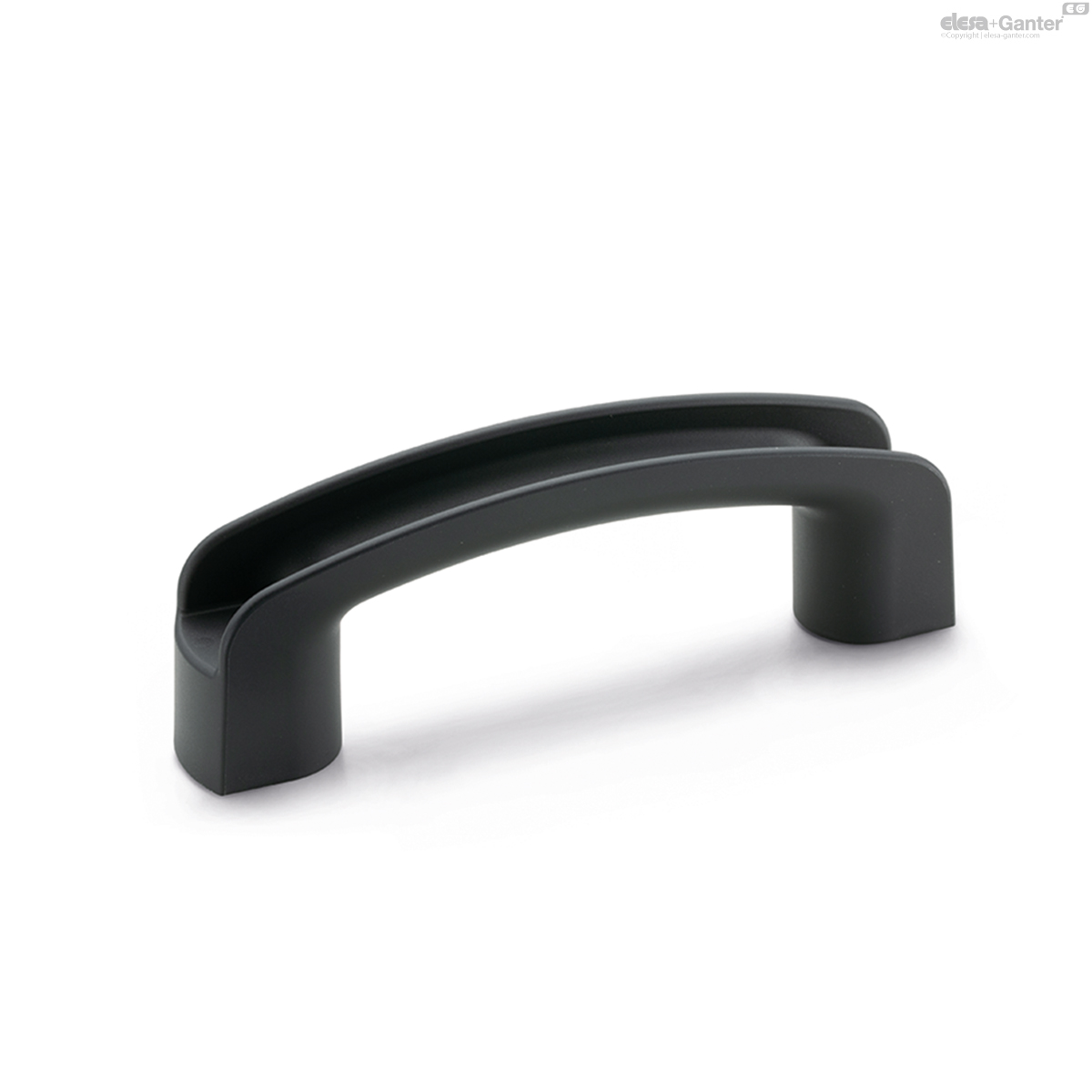

MPC.152-6 MPC Bridge handles

MPC.152-6

MPC Bridge handles

Technopolymer
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png

Eta: 1-2 weeks All sizes and variants of MPC

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
260910
L
153
l
28
f±1
117-120
d
6.5
s
10
h
49.5
h1
6.5
h2
24
B
15.5
l1
93
F1
[N]
2800
F2
[N]
2500
L1
[J]
10
L2
[J]
30
58

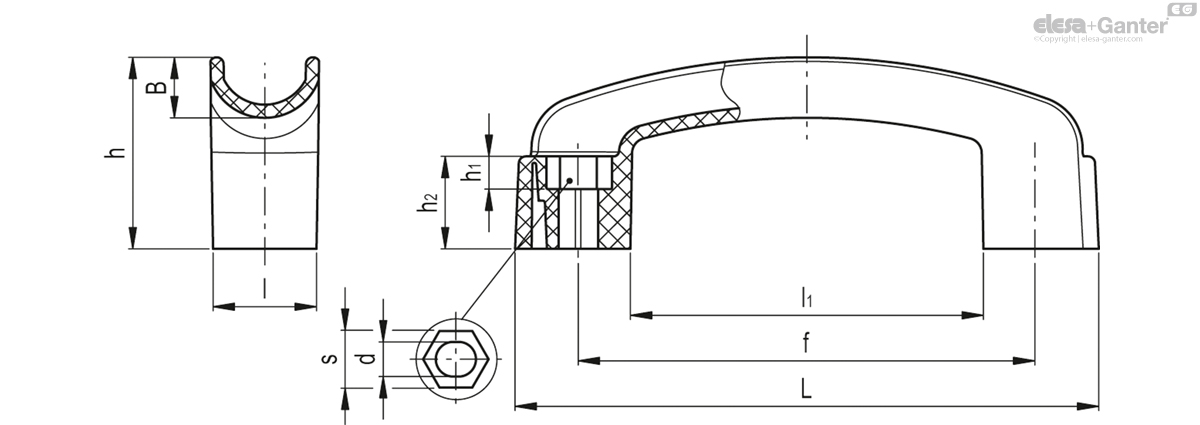

MPC.152-6 drawing
MPC.152-6 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Standard execution

Pass-through holes for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or nuts.

Technical data

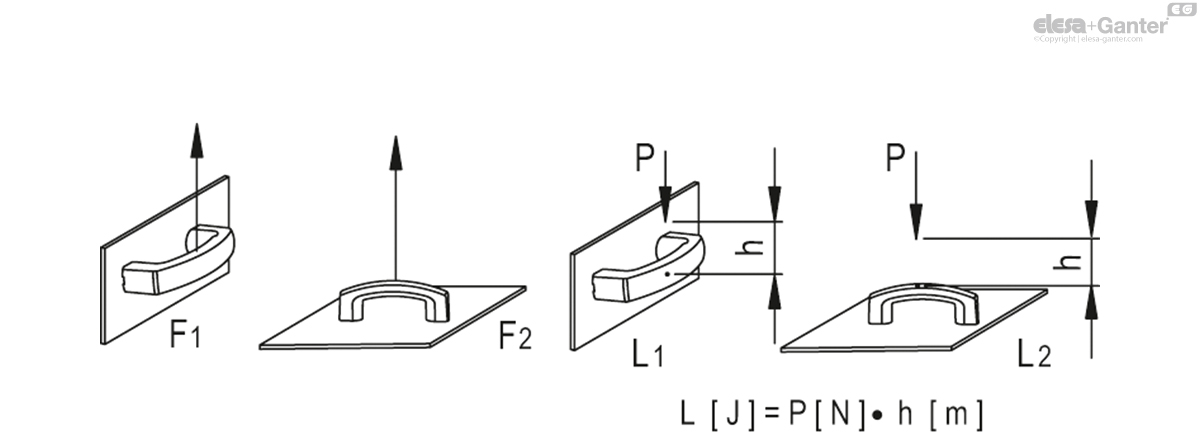

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
