MPC.152-6 MPC Poignées de pont

MPC.152-6

MPC Poignées de pont

Poignées étriers
  • Icons/__logo__PA__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png
  • Icons/__logo__g13030__.png
  • Icons/__logo__ELE_OD__.png

Délai: 1-2 semaines Toutes les tailles et variantes de MPC

🔒 Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
260910
L
153
l
28
f±1
117-120
d
6.5
s
10
h
49.5
h1
6.5
h2
24
B
15.5
l1
93
F1
[N]
2800
F2
[N]
2500
L1
[J]
10
L2
[J]
30
58

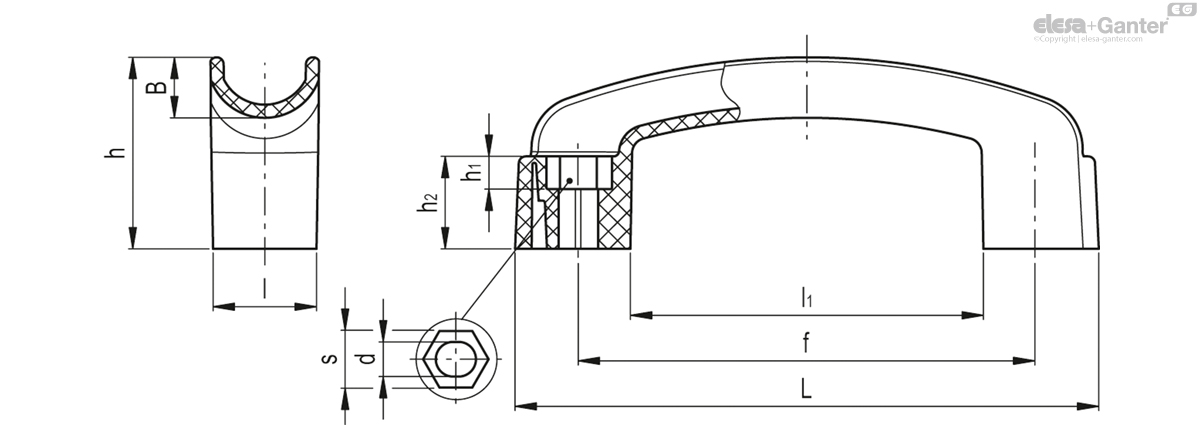

MPC.152-6 drawing
MPC.152-6 drawing

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.

Standard execution

Pass-through holes for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or nuts.

Technical data

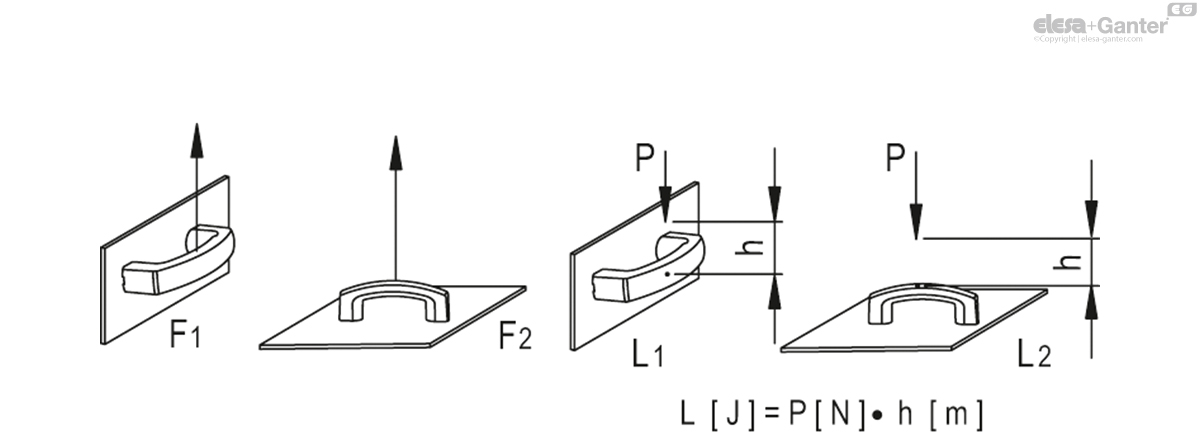

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
