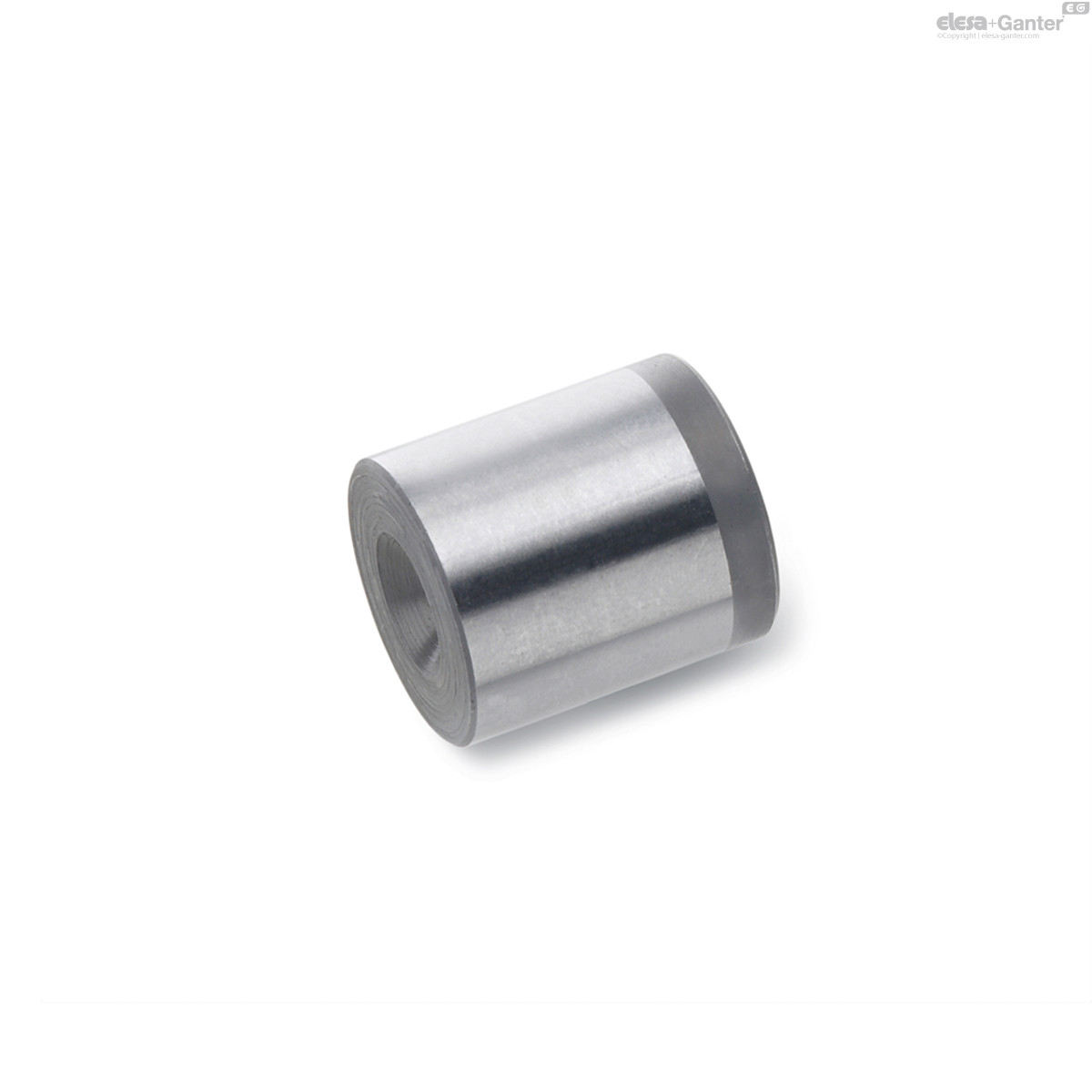

249.1-6-2,5 GN 249.1 Kogelknoppen

249.1-6-2,5 GN 249.1 Kogelknoppen

voor verende drukstukken
Alle maten en varianten
  • RoHS

Verwachte levertermijn 5-7 werkdagen

Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 249.1-6-2,5
d1 p6
6
d2
2.5
d3 Ball-Ø
spring plunger
*
l1 ±0.05
8
l2
1.5
s≈ for
GN 615
GN 615.2
GN 615.3
GN 615.5
GN 815
GN 815.1
M 5=0.7  M 6=0.5
s≈ for
GN 615.8
GN 615.9
M 8=0.5
s≈ for
GN 614
GN 614.2
GN 614.5
Ø 4=0.7  Ø 5=0.4
s≈ for
GN 614.3
Ø 4=0.7  Ø 5=0.5
s≈ for
GN 614.8
Ø 6=0.5
s≈ for
GN 615.1
GN 615.4
M 6=0.8  M 8=0.5
s≈ for
GN 616
GN 616.1
M 6=0.8  M 8=0.5
w Compression
*
weight
2

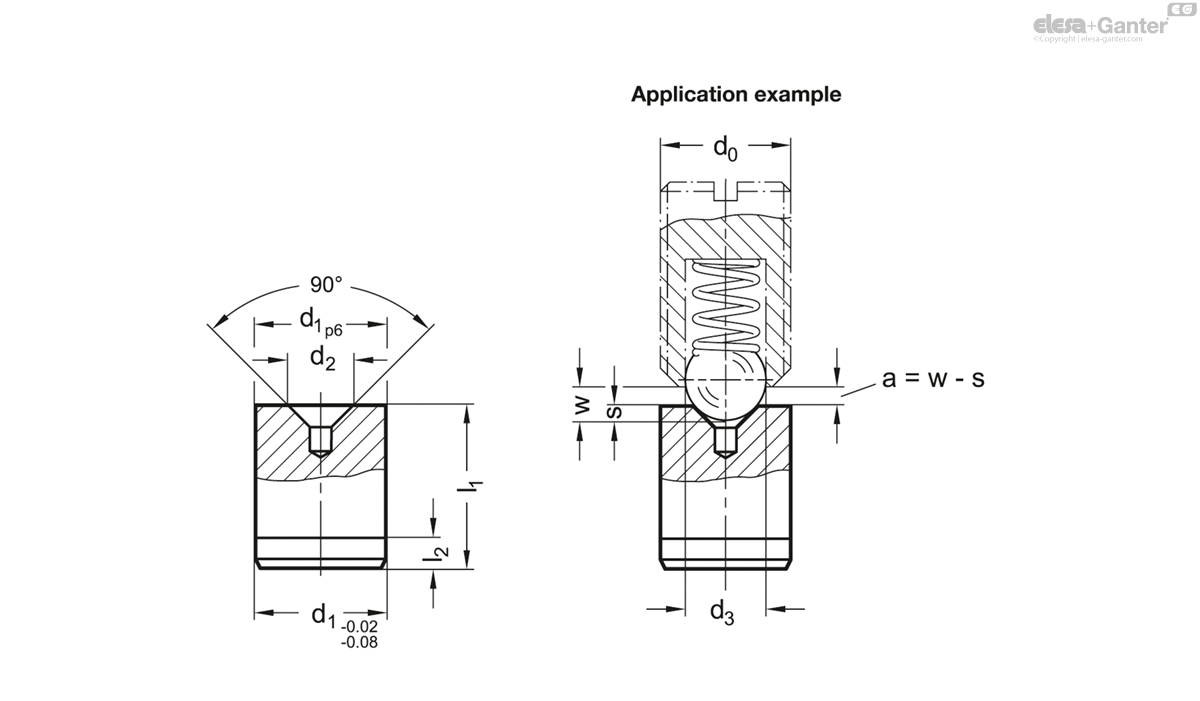

249.1-6-2,5 drawing
* see spring plunger

Steel

hardened and ground

Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.

To achieve optimal locking of the spring plungers, the maximum distance a between the ball button and the spring plunger should not be exceeded. The maximum distance a is calculated from the difference between the compression w of the selected plunger and the indentation depth s of the ball in the recess.

These ball buttons are especially recommended for use with spring plungers with high spring loads.
