249.1-6-2,5 GN 249.1 Boutons boule

249.1-6-2,5 GN 249.1 Boutons boule

pour poussoirs à ressort
Toutes les tailles et variantes
  • RoHS

Délai de livraison prévu 5-7 jours ouvrables

Prix, stock en temps réel & téléchargements CAO

Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.

Se connecter Demander un compte

Caractéristiques techniques

Code
GN 249.1-6-2,5
d1 p6
6
d2
2.5
d3 Ball-Ø
spring plunger
*
l1 ±0.05
8
l2
1.5
s≈ for
GN 615
GN 615.2
GN 615.3
GN 615.5
GN 815
GN 815.1
M 5=0.7  M 6=0.5
s≈ for
GN 615.8
GN 615.9
M 8=0.5
s≈ for
GN 614
GN 614.2
GN 614.5
Ø 4=0.7  Ø 5=0.4
s≈ for
GN 614.3
Ø 4=0.7  Ø 5=0.5
s≈ for
GN 614.8
Ø 6=0.5
s≈ for
GN 615.1
GN 615.4
M 6=0.8  M 8=0.5
s≈ for
GN 616
GN 616.1
M 6=0.8  M 8=0.5
w Compression
*
weight
2

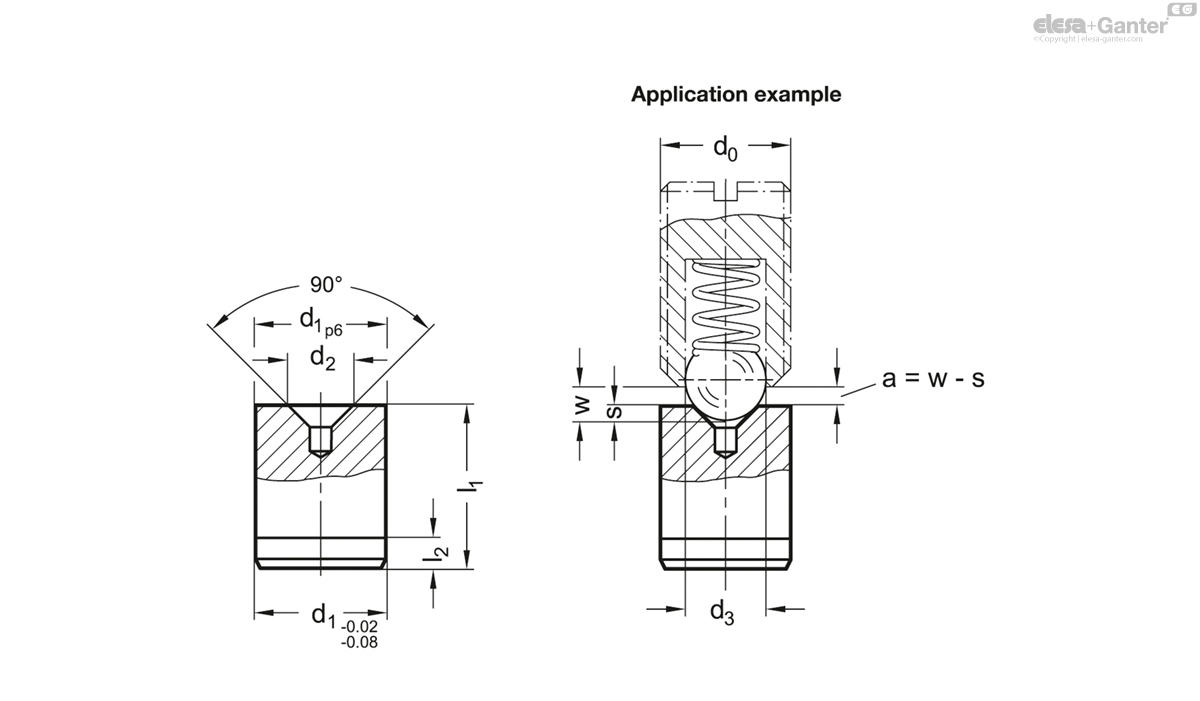

249.1-6-2,5 drawing
* see spring plunger

Steel

hardened and ground

Ball buttons GN 249.1 are mainly used with spring plungers when low wear and exact positioning are needed.

To achieve optimal locking of the spring plungers, the maximum distance a between the ball button and the spring plunger should not be exceeded. The maximum distance a is calculated from the difference between the compression w of the selected plunger and the indentation depth s of the ball in the recess.

These ball buttons are especially recommended for use with spring plungers with high spring loads.
