52.5-ND-20-M10
GN 52.5 Staafmagneten met buitendraad
Lt: 1-2 weken Alle maten en varianten van GN 52.5
🔒 Prijzen, actuele voorraad & CAD-downloads
Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.
Aanmelden Account aanvragen

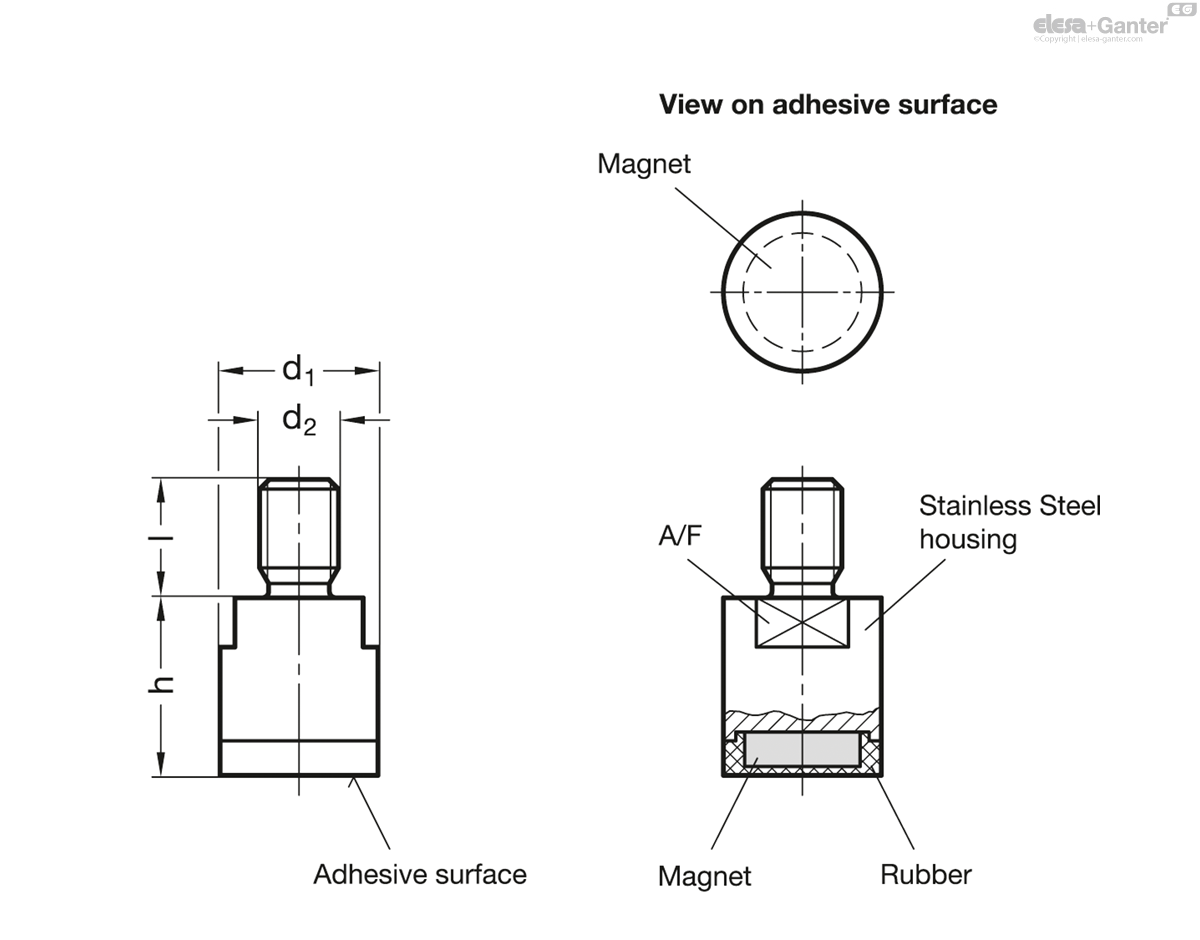

Technische fiche
Technische gegevens
- Code
- GN 52.5-ND-20-M10
- d1 ±0.2
- 20
- d2
- M 10
- h ±0.2
- 20
- l
- 14
- A/F
- 17
- Nominal adhesive forces in N
- 46
- 52
Housing
Stainless steel
Material of the magnet
NdFeB ND
Temperature resistant up to 80 °C
Rubber
Elastomer (TPE)
≈ 80 Shore A
Black
Stainless steel retaining magnets GN 52.5 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
