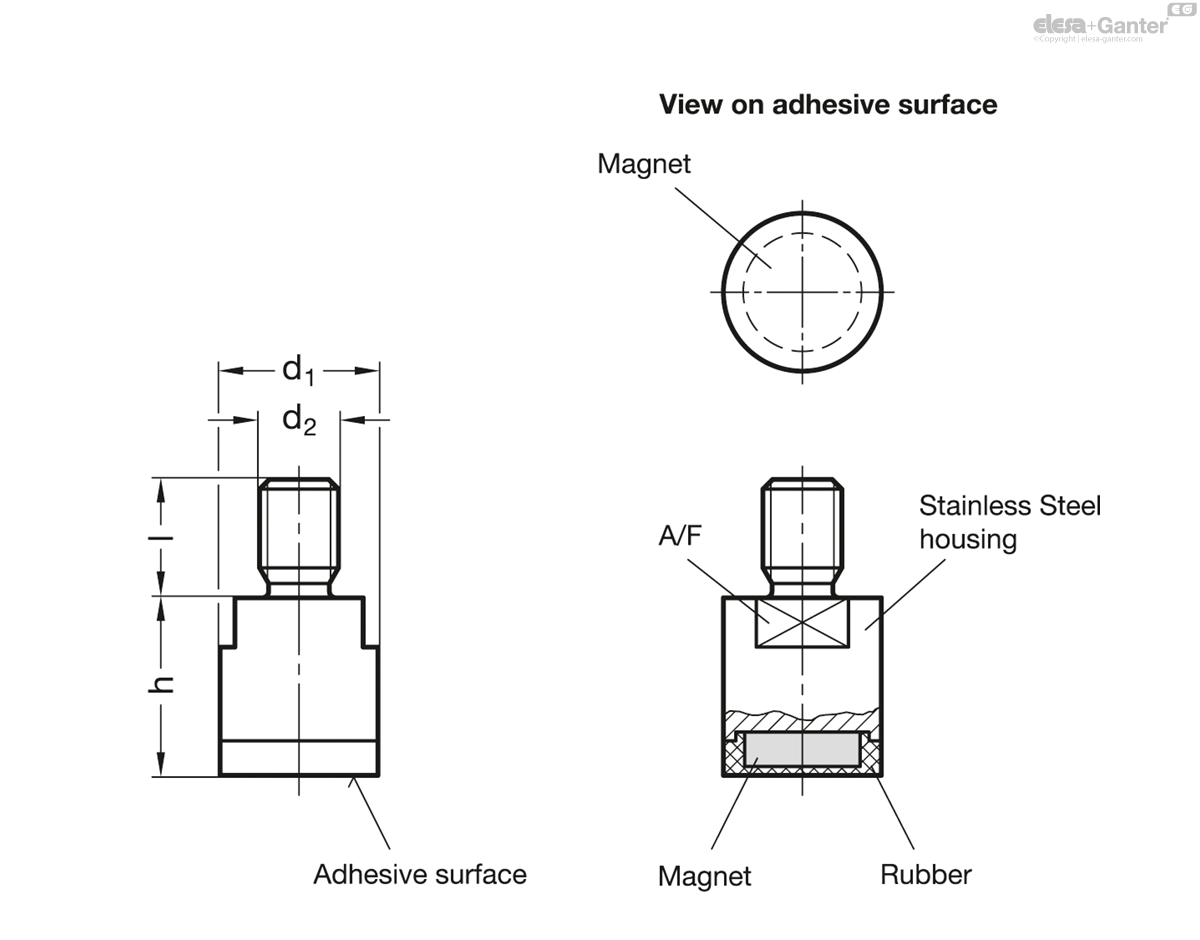

52.5-ND-20-M10
GN 52.5 Aimants de retenue en acier inoxydable
Délai: 1-2 semaines Toutes les tailles et variantes de GN 52.5
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques
- Code
- GN 52.5-ND-20-M10
- d1 ±0.2
- 20
- d2
- M 10
- h ±0.2
- 20
- l
- 14
- A/F
- 17
- Nominal adhesive forces in N
- 46
- 52
Housing
Stainless steel
Material of the magnet
NdFeB ND
Temperature resistant up to 80 °C
Rubber
Elastomer (TPE)
≈ 80 Shore A
Black
Stainless steel retaining magnets GN 52.5 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
