52.5-ND-20-M10
GN 52.5 Stainless Steel Retaining Magnets
Eta: 1-2 weeks All sizes and variants of GN 52.5
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

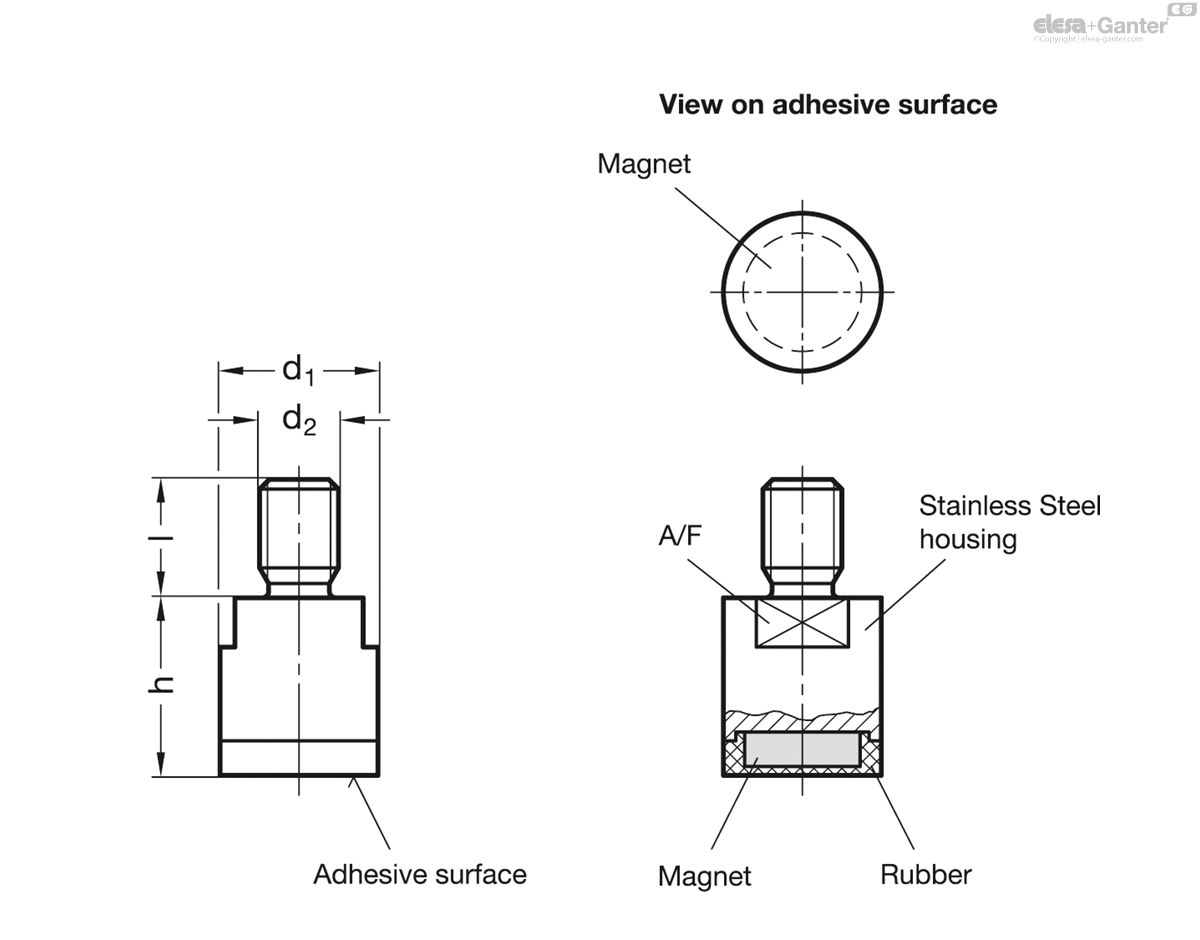

Technical data
- Catalogue
- GN 52.5-ND-20-M10
- d1 ±0.2
- 20
- d2
- M 10
- h ±0.2
- 20
- l
- 14
- A/F
- 17
- Nominal adhesive forces in N
- 46
- 52
Housing
Stainless steel
Material of the magnet
NdFeB ND
Temperature resistant up to 80 °C
Rubber
Elastomer (TPE)
≈ 80 Shore A
Black
Stainless steel retaining magnets GN 52.5 are combined with the stainless steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the gummed magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
