607.2-8-10-ST GN 607.2 Blokkeerbouten

607.2-8-10-ST

GN 607.2 Blokkeerbouten

voor installatie in dunwandige apparatuur, zonder rustpositie
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 607.2

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 607.2-8-10-ST
d1
8
d1 Pin -0.02/-0.05 Bore H7
8
l1
10
d2
31
d3
12
e
22
l2
40
l3
12
l4
7.5
s
1 … 5
A/F 1
19
A/F 2
16
Spring load in N ≈
initial
13
Spring load in N ≈
end
23
Spring force F in N≈
Retracted
13
Spring force F in N≈
Protruding
23
Axial load in N
500
62

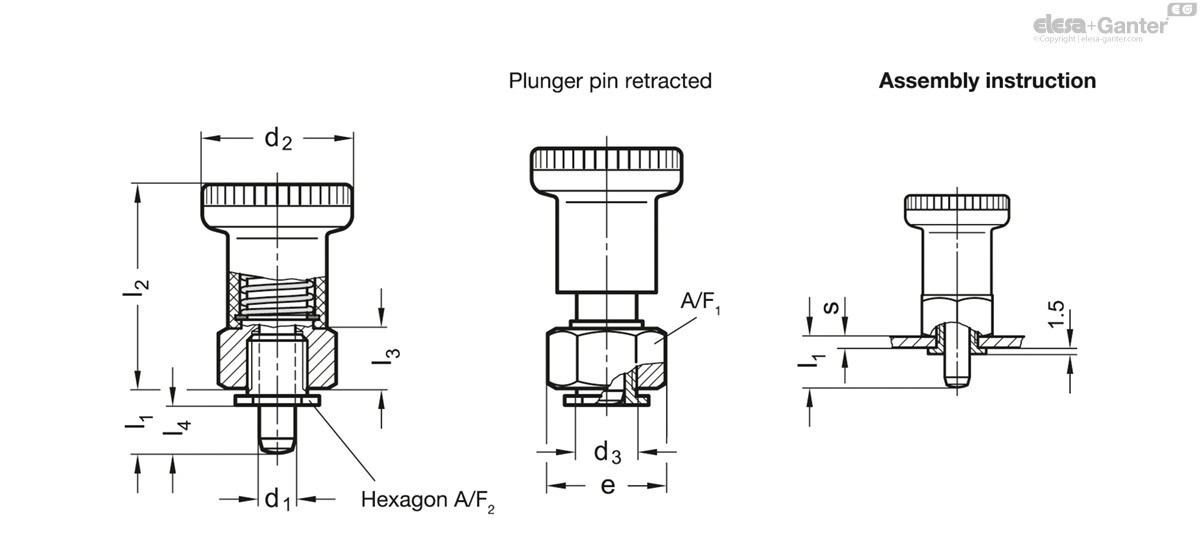

607.2-8-10-ST drawing

Guide Steel ST

zinc plated, blue passivated

Pin Stainless Steel AISI 303

chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.2 have been developed for installation in thin walled equipment.

It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l1' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.

For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 -

  • Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)
