Technical datasheet
GN 607.2Blokkeerbouten
Blokkeerbouten
voor installatie in dunwandige apparatuur, zonder rustpositie
GN 607.2
|
Katalog
|

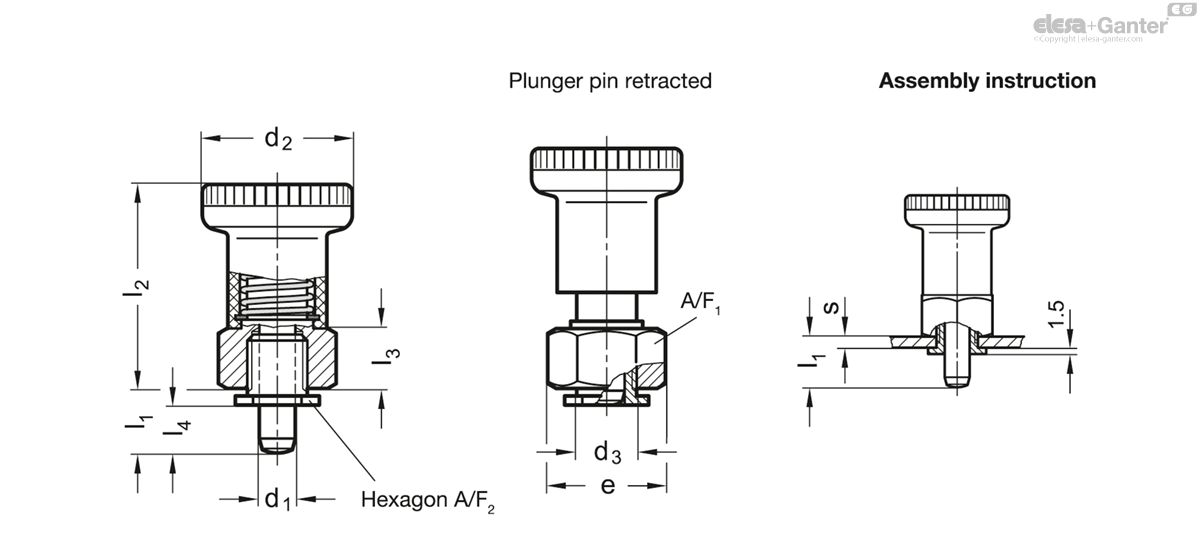

d1
|
d1 Pin -0.02/-0.05
Bore H7 |
l1
|
d2
|
d3
|
e
|
l2
|
l3
|
l4
|
s
|
A/F 1
|
A/F 2
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GN 607.2-6-8,5-ST
|
6
|
6
|
8.5
|
25
|
10
|
19.5
|
34
|
10
|
6
|
1 … 3
|
17
|
14
|
|
GN 607.2-6-10,5-ST
|
6
|
6
|
10.5
|
25
|
10
|
19.5
|
34
|
10
|
6
|
3 … 5
|
17
|
14
|
|
GN 607.2-8-10-ST
|
8
|
8
|
10
|
31
|
12
|
22
|
40
|
12
|
7.5
|
1 … 5
|
19
|
16
|
|
GN 607.2-8-12-ST
|
8
|
8
|
12
|
31
|
12
|
22
|
40
|
12
|
7.5
|
3 … 5
|
19
|
16
|
Guide Steel ST
zinc plated, blue passivated
Pin Stainless Steel AISI 303
chemically nickel plated
Knob Plastic (Polyamide PA)
- black, matt
- not removable

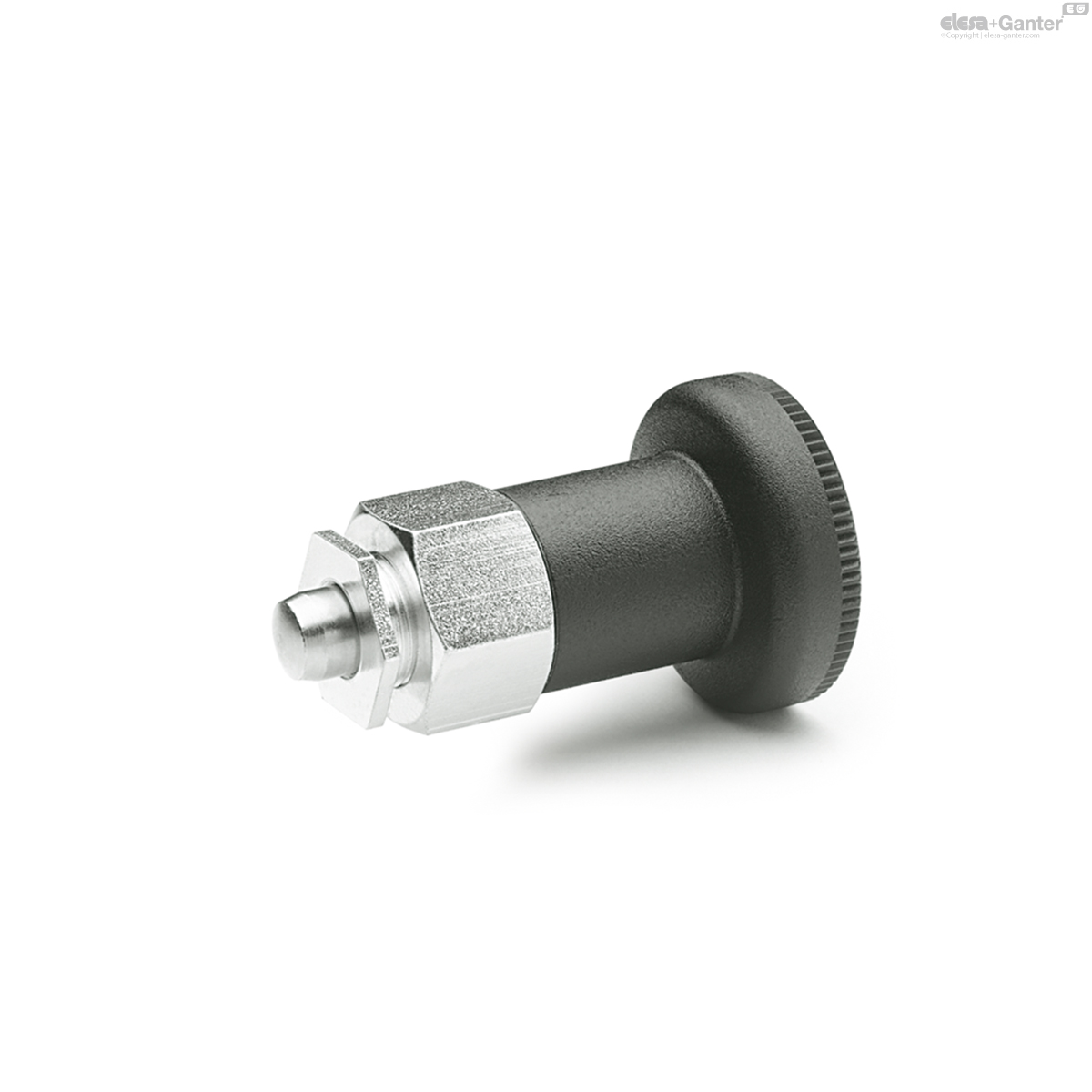

Indexing plungers GN 607.2 have been developed for installation in thin walled equipment.
It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l1' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.
For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 -
- Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)
