607.2-8-10-ST GN 607.2 Indexing plungers

607.2-8-10-ST

GN 607.2 Indexing plungers

for installation in thin walled equipment, without rest position
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 607.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 607.2-8-10-ST
d1
8
d1 Pin -0.02/-0.05 Bore H7
8
l1
10
d2
31
d3
12
e
22
l2
40
l3
12
l4
7.5
s
1 … 5
A/F 1
19
A/F 2
16
Spring load in N ≈
initial
13
Spring load in N ≈
end
23
Spring force F in N≈
Retracted
13
Spring force F in N≈
Protruding
23
Axial load in N
500
62

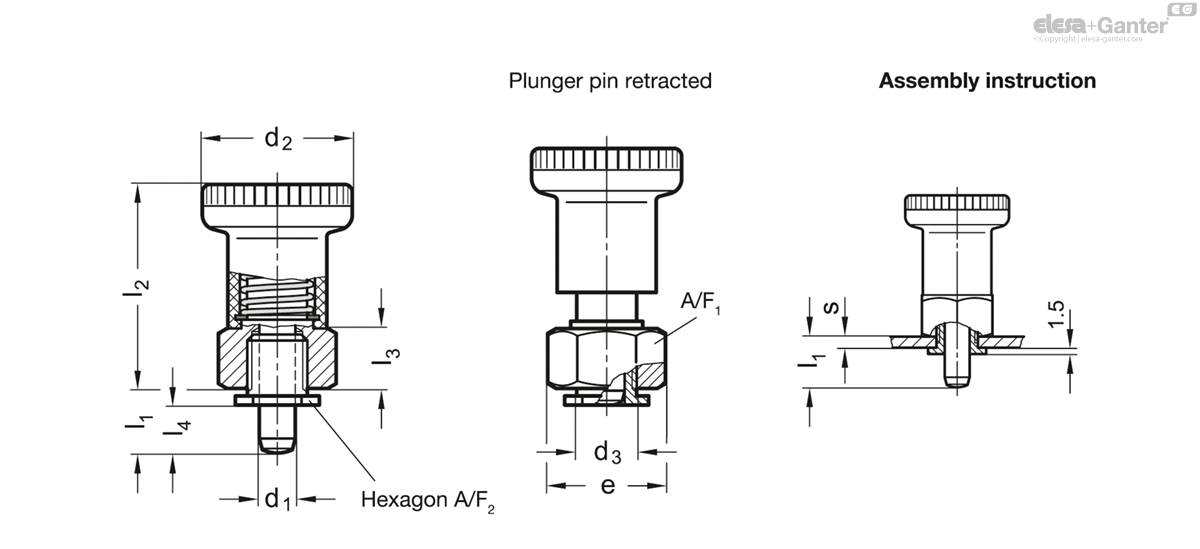

607.2-8-10-ST drawing

Guide Steel ST

zinc plated, blue passivated

Pin Stainless Steel AISI 303

chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • not removable

Indexing plungers GN 607.2 have been developed for installation in thin walled equipment.

It has to be taken into consideration that, depending on the mounting plate thickness 's', the protruding plunger length 'l1' and the position of the hexagon nut on its centre bush, the plunger nose might not always be fully retractable.

For design reasons the positional accuracy of this indexing plunger is not as precise as plunger GN 607 -

  • Double ring spanner GN 607.9 -SW14-SW16 (assembling aid)
