39-ST-32-E DIN 39 Staal

39-ST-32-E

DIN 39 Staal

  • Icons/__logo__PA__.png
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van DIN 39

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
DIN 39-ST-32-E
d1
32
d3
M 12
d4 h13
20
l1 ≈
100
l2
21
l3
13
A/F
6
345

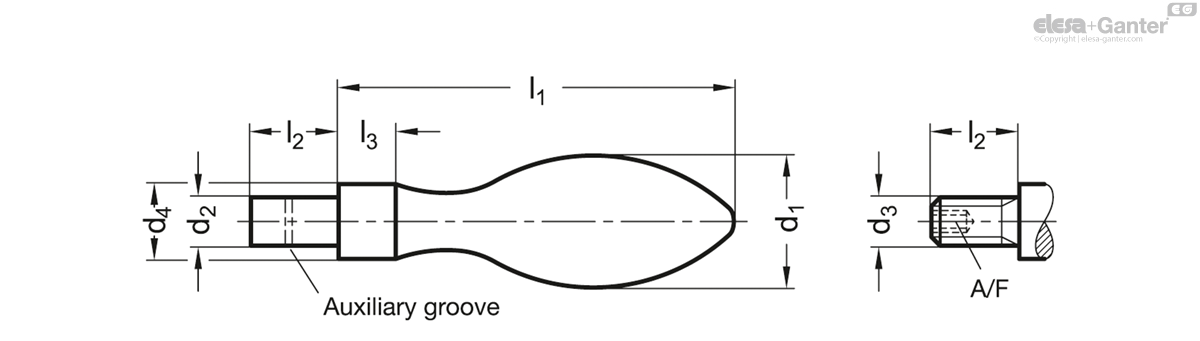

39-ST-32-E drawing

Types

  • Type D: with plain shaft
  • Type E: with threaded shaft

Version in Steel

Steel ST

zinc plated, blue passivated

Version in Stainless Steel

Stainless Steel AISI 316L A4

Version in Plastic

Plastic KT

Technopolymer (Polyamide PA)

  • temperature resistant up to 100 °C
  • black, matt finish
  • threaded bolt Steel, blackened

On the official DIN standard sheet you can find the additional sizes 10 and 13.

For reasons of hygiene, no hexagonal recess is used in type A4.
