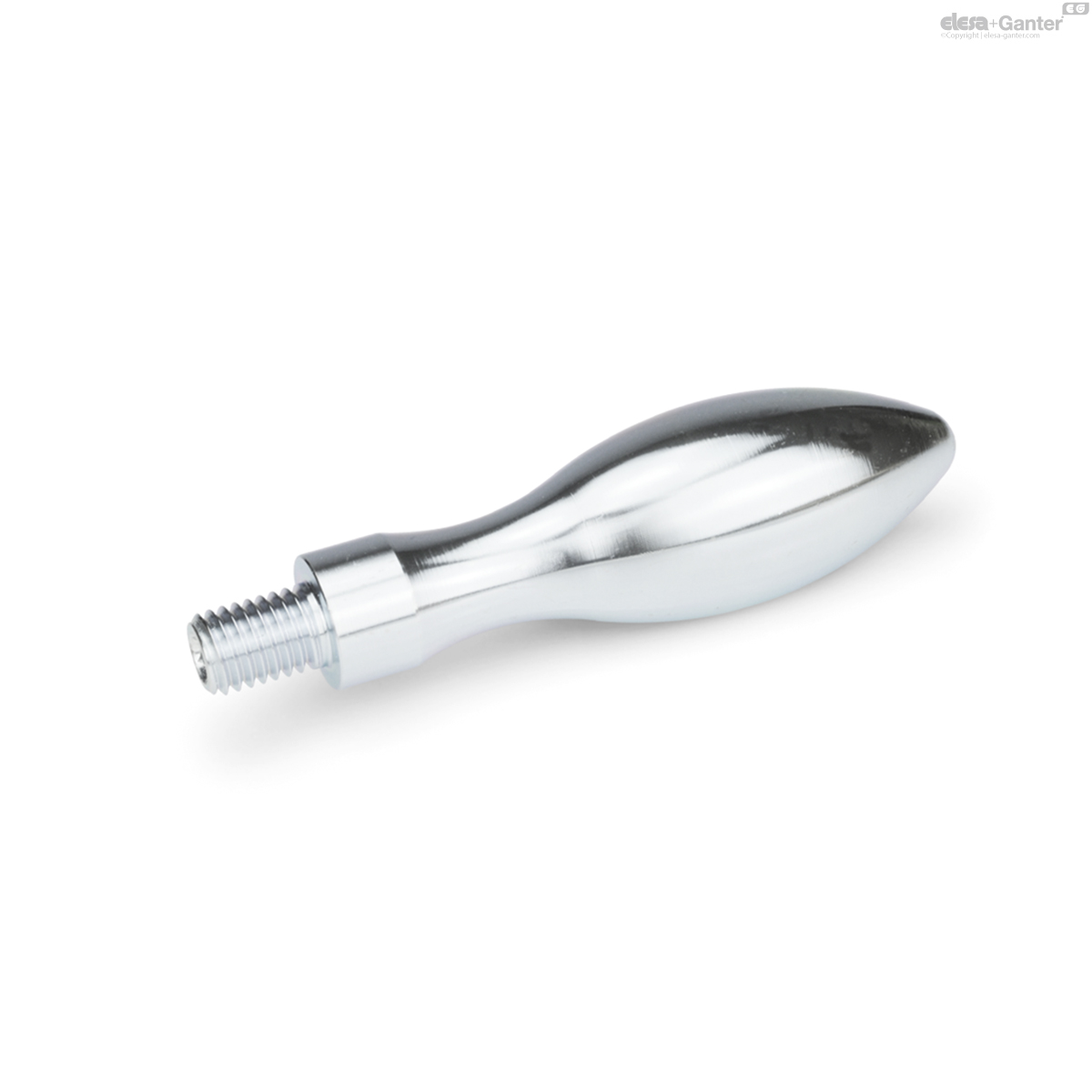

39-ST-32-E
DIN 39 Steel
Eta: 1-2 weeks All sizes and variants of DIN 39
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

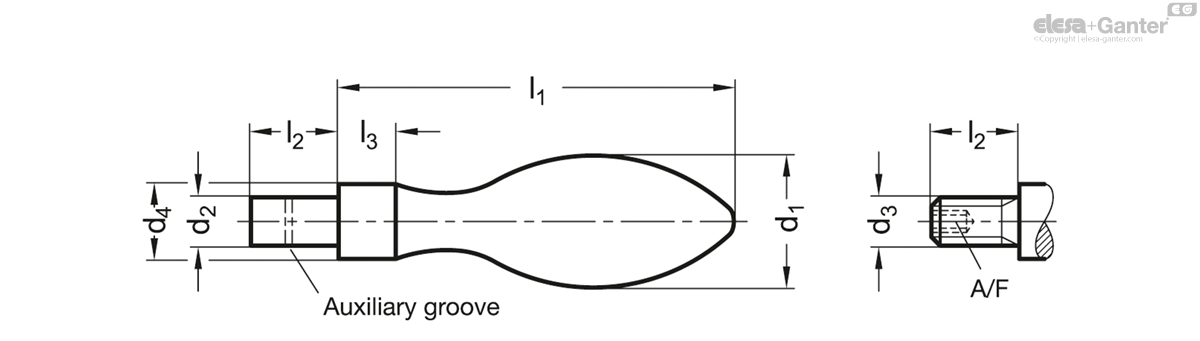

Technical data
- Catalogue
- DIN 39-ST-32-E
- d1
- 32
- d3
- M 12
- d4 h13
- 20
- l1 ≈
- 100
- l2
- 21
- l3
- 13
- A/F
- 6
- 345
Types
- Type D: with plain shaft
- Type E: with threaded shaft
Version in Steel
Steel ST
zinc plated, blue passivated
Version in Stainless Steel
Stainless Steel AISI 316L A4
Version in Plastic
Plastic KT
Technopolymer (Polyamide PA)
- temperature resistant up to 100 °C
- black, matt finish
- threaded bolt Steel, blackened
On the official DIN standard sheet you can find the additional sizes 10 and 13.
For reasons of hygiene, no hexagonal recess is used in type A4.
