482-B20-30-Q-MT GN 482 Draai-klemverbindingen

482-B20-30-Q-MT

GN 482 Draai-klemverbindingen

Aluminium
  • Icons/__logo__RoHS__.png

Lt: 1-2 weken Alle maten en varianten van GN 482

🔒 Prijzen, actuele voorraad & CAD-downloads

Meld u aan om uw prijzen en voorraad te zien, CAD-bestanden te downloaden en direct online te bestellen.

Aanmelden Account aanvragen

Technische gegevens

Code
GN 482-B20-30-Q-MT
d1
Bore for shaft tolerance h11
B 20
k
30
d2
10
d3
6.5
d4
M 6
l1
70
l2
55
l3
39
m
33.5
l4
15
s
16
Clamping kit for 3 Type S/K
GN 511.1-M6-30-S/K
Clamping kit for d4
GN 511-M6-32
99

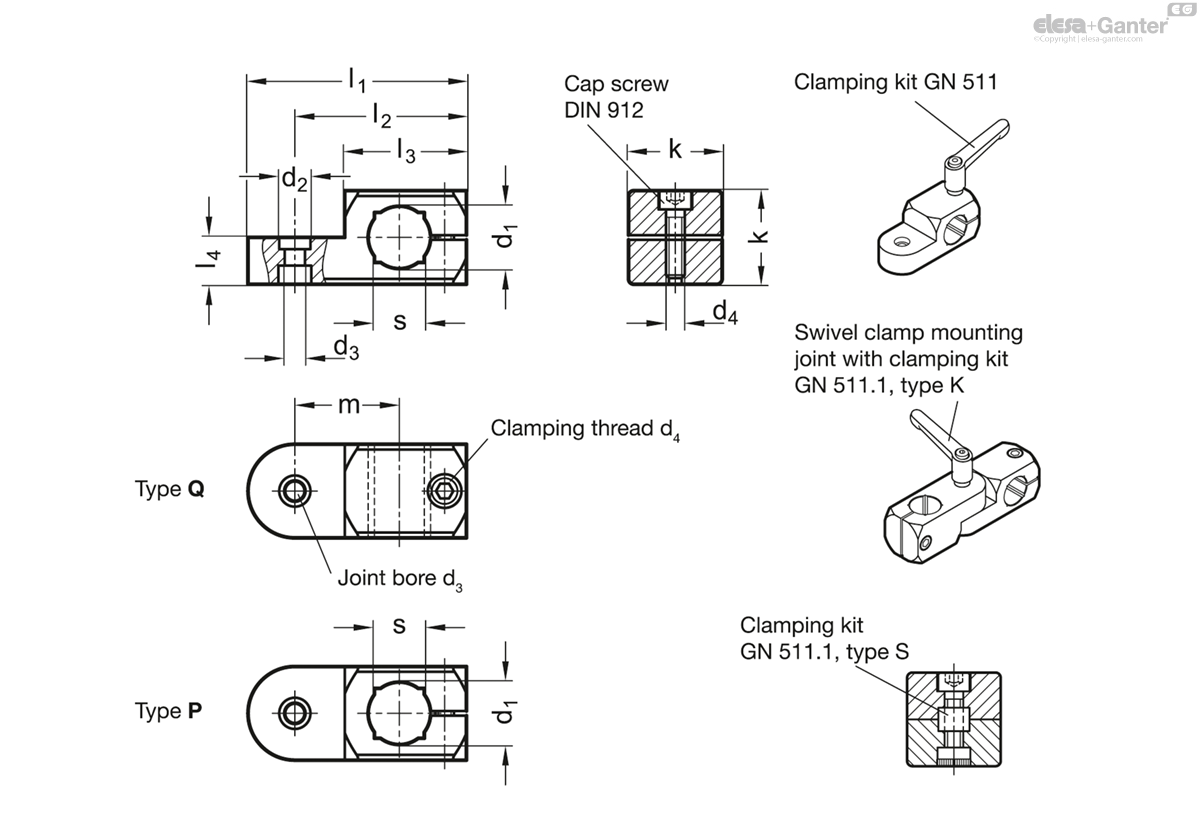

482-B20-30-Q-MT drawing

Types

  • Type Q: Clamping bore transverse to the swivel axis
  • Type P: Clamping bore parallel to the swivel axis

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Cylinder head screws DIN 912

Stainless Steel AISI 304

Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.

Also, the clamping screw d4 - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit  GN 511 .

The description for ordering is shown in the dimensional table.
