482-B20-30-Q-MT
GN 482 Fixations à pince pivotante
Délai: 1-2 semaines Toutes les tailles et variantes de GN 482
🔒 Prix, stock en temps réel & téléchargements CAO
Connectez-vous pour voir vos prix et le stock, télécharger les fichiers CAO et commander directement en ligne.
Se connecter Demander un compte
Fiche technique
Caractéristiques techniques

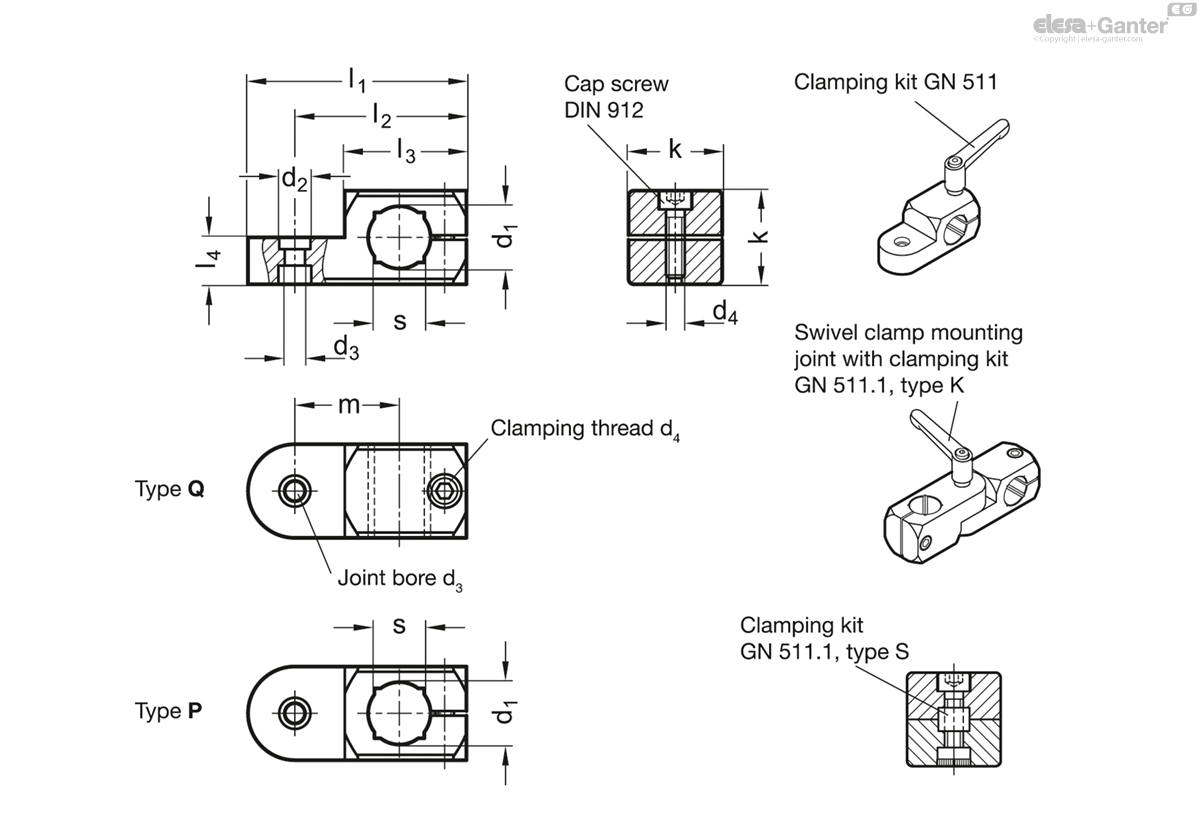

- Code
- GN 482-B20-30-Q-MT
- d1
Bore for shaft tolerance h11 - B 20
- k
- 30
- d2
- 10
- d3
- 6.5
- d4
- M 6
- l1
- 70
- l2
- 55
- l3
- 39
- m
- 33.5
- l4
- 15
- s
- 16
- Clamping kit for 3 Type S/K
- GN 511.1-M6-30-S/K
- Clamping kit for d4
- GN 511-M6-32
- 99
Types
- Type Q: Clamping bore transverse to the swivel axis
- Type P: Clamping bore parallel to the swivel axis
Aluminium
- matt, slide ground MT
- anodized black ELS
Cylinder head screws DIN 912
Stainless Steel AISI 304
Swivel clamp mountings GN 482 can be combined with T-Swivel clamp mountings GN 483 and attachment clamp mountings GN 484with the same k dimensions into swivel clamp mounting joints. Clamping kits GN 511.1 with screw (type S) and adjustable hand lever (type K) are available for this combination.
Also, the clamping screw d4 - which is a cylinder head screw with DIN 912 hexagonal recess in the standard design - can be replaced by a clamping kit GN 511 .
The description for ordering is shown in the dimensional table.
